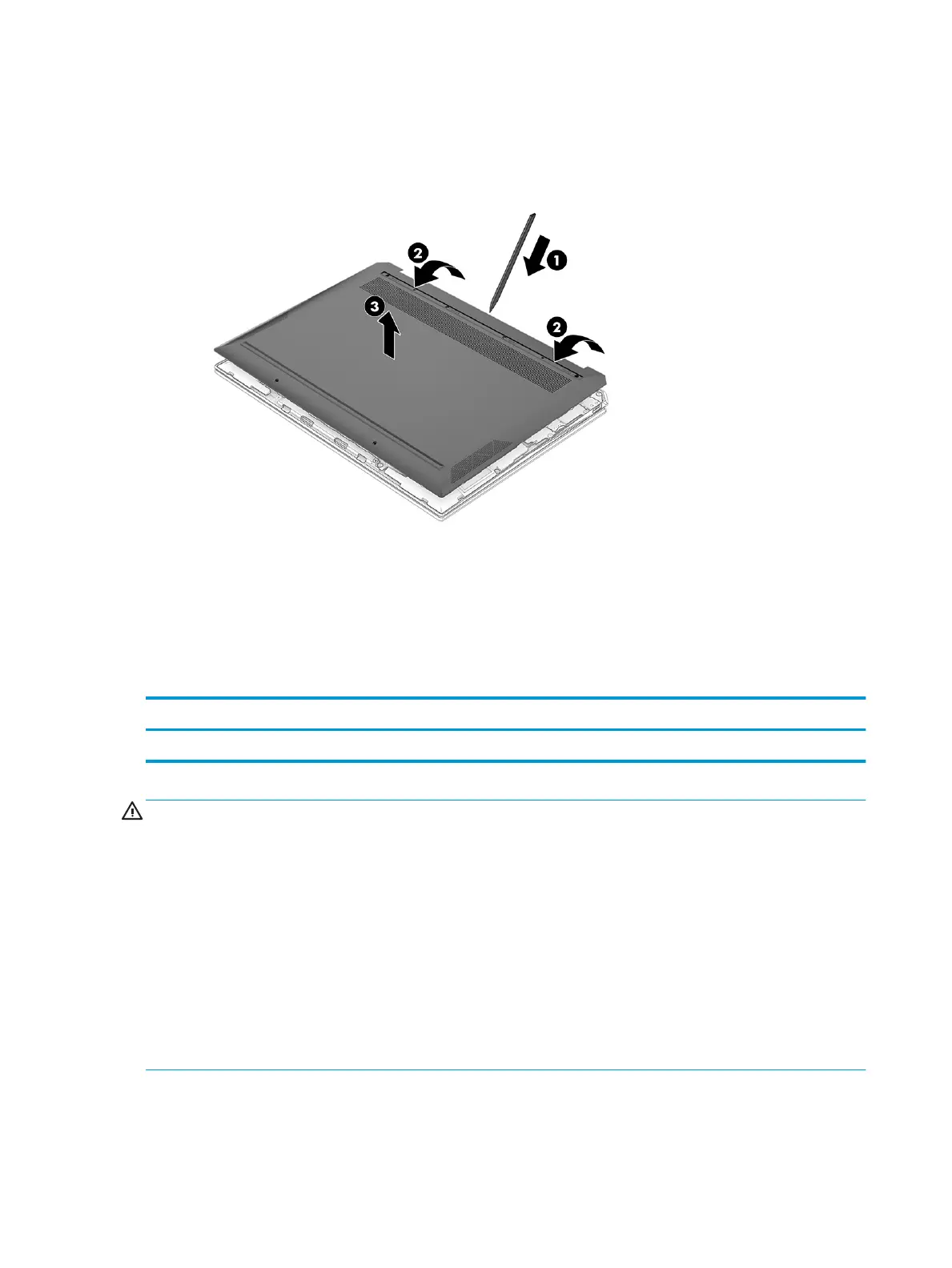

4. Use a case utility tool or similar thin plastic tool (1) to separate the rear edge of the bottom cover (2) from
the top cover.
5. Remove the bottom cover (3).
To replace the bottom cover, reverse the removal procedures.
Battery
To remove the battery, use this procedure and illustration.
Table
5-2 Battery description and part number
Description Spare part number
4 cell, 66 WHr, Li-ion battery (includes cable) L97357-005
WARNING! To avoid personal injury and damage to the product:
● Do not puncture, twist, or crack the battery.
● Do not cause an external puncture or rupture to the battery. They can cause a short inside the battery,
which can result in battery thermal runaway.
● Do not handle or touch the battery enclosure with sharp objects such as tweezers or pliers, which might
puncture the battery.
● Do not compress or squeeze the battery case with tools or heavy objects stacked on top of the case. These
actions can apply undue force on the battery.
● Do not touch the connectors with any metallic surface or object, such as metal tools, screws, or coins,
which can cause shorting across the connectors.
Before removing the battery, follow these steps:
38 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
