HP Spectre x360 14 User Manual

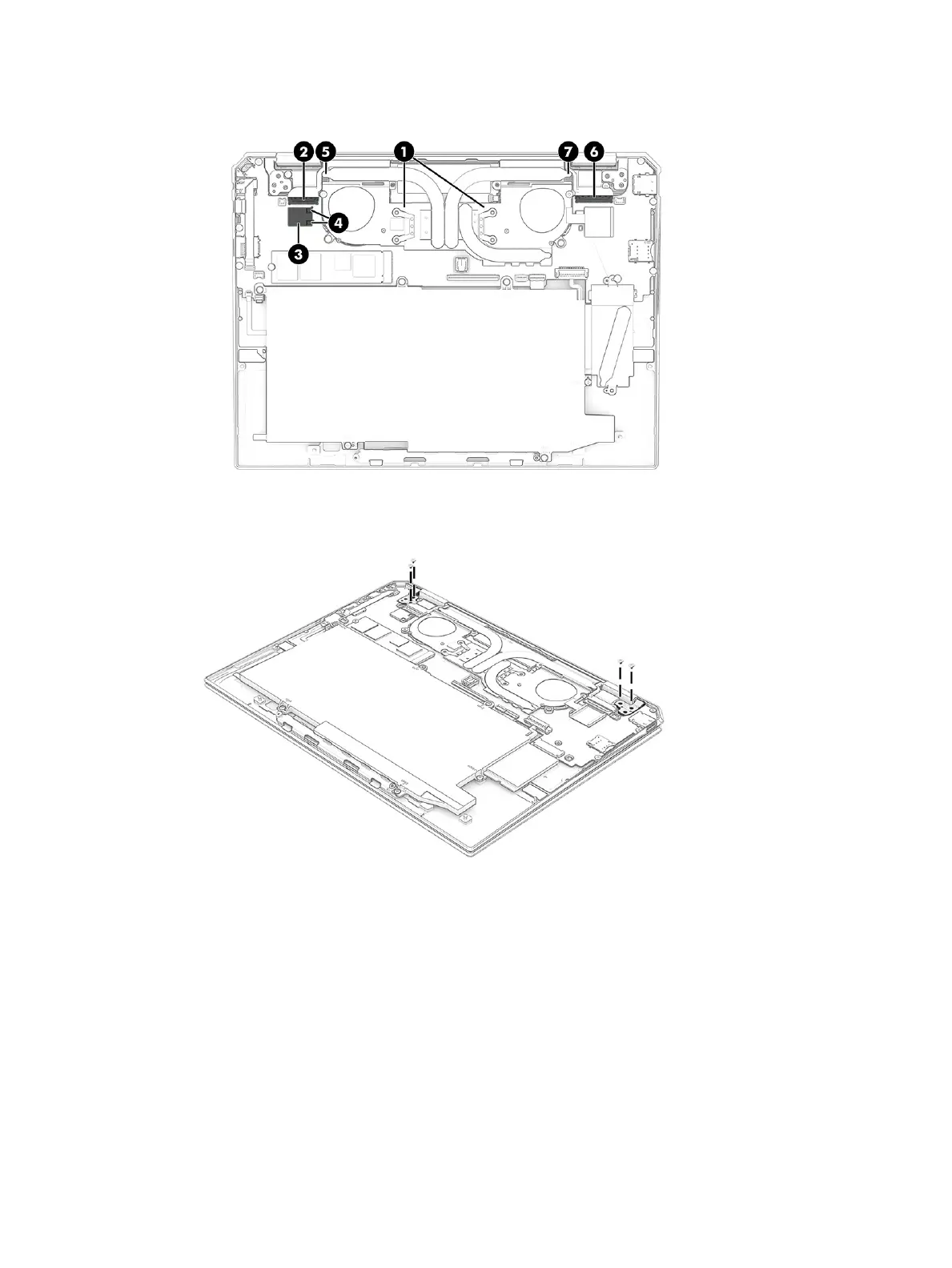

7. Release the display panel cable from the retention clip (7) built into the top cover.
8. Remove the four Phillips M2.5 × 4.8 screws that secure the display assembly to the top cover.
9. Swing the top edge of the display assembly (1) away from the top cover. (The top cover disengages from
the display assembly hinges.)
ENWW Component replacement procedures 43

HP Spectre x360 14 Specifications

General

Display Size	13.5 inches
Graphics	Intel Iris Xe Graphics
Wireless	Wi-Fi 6, Bluetooth 5.0
Audio	Bang & Olufsen, quad speakers
Resolution	3000 x 2000 pixels
Processor	Intel Core i7
RAM	16 GB
Storage	1 TB SSD
Operating System	Windows 10
Battery Life	Up to 17 hours
Weight	2.95 lbs (1.34 kg)
Ports	2 x Thunderbolt 4, 1 x USB-A, 1 x headphone/microphone combo
Webcam	720p
Battery	4-cell, 66 Wh Li-ion polymer
Color	Nightfall Black
