Table 5-12 Keyboard descriptions and part numbers (continued)
For use in country/region Spare part number For use in country/region Spare part number
For use in France M22196-051 For use in South Korea M22196-AD1
For use in Germany M22196-041 For use in Spain M22196-071
For use in Greece M22196-151 For use in Switzerland M22196-BG1
For use in Hungary M22196-211 For use in Taiwan M22196-AB1
For use in Israel M22196-BB1 For use in Thailand M22196-281
For use in Italy M22196-061 For use in Turkey M22196-141
For use in Japan M22196-291 For use in Ukraine M22196-BD1
For use in Latin America M22196-161 For use in the United Kingdom M22196-031
For use in the Netherlands M22196-B31 For use in the United States M22196-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 37).
2. Remove the bottom cover (Bottom cover on page 37).
3. Remove the battery (see Battery on page 38).
4. Remove the system board (see System board on page 46).
Remove the keyboard:

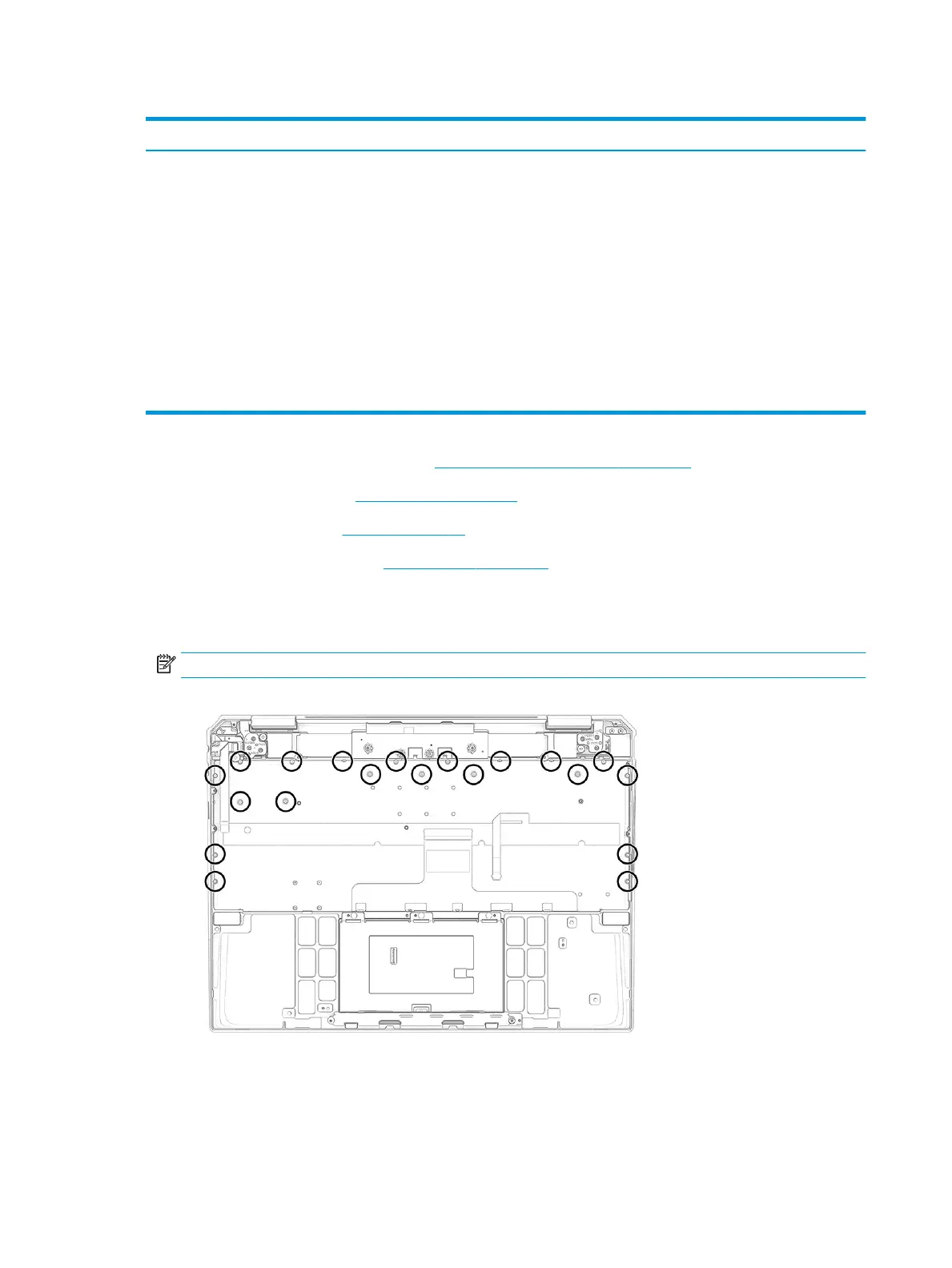

1. Remove the 20 Phillips 1.0 × 1.0 screws that secure the keyboard to the top cover.
NOTE: The keyboard screws are available in the Keyboard Screw Kit, spare part number M22191-001.
2. Lift the rear edge of the keyboard (1) until it separates from the top cover.
58 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
