Overview
HP Uninterruptible Power System T1000 XR and T1500 XR Models User Guide 1-5
HP CONFIDENTIAL Codename: Sherman Part Number: 216164-002 Last Saved On: 8/19/02 4:21 PM
6
7
1
4
5
3
2

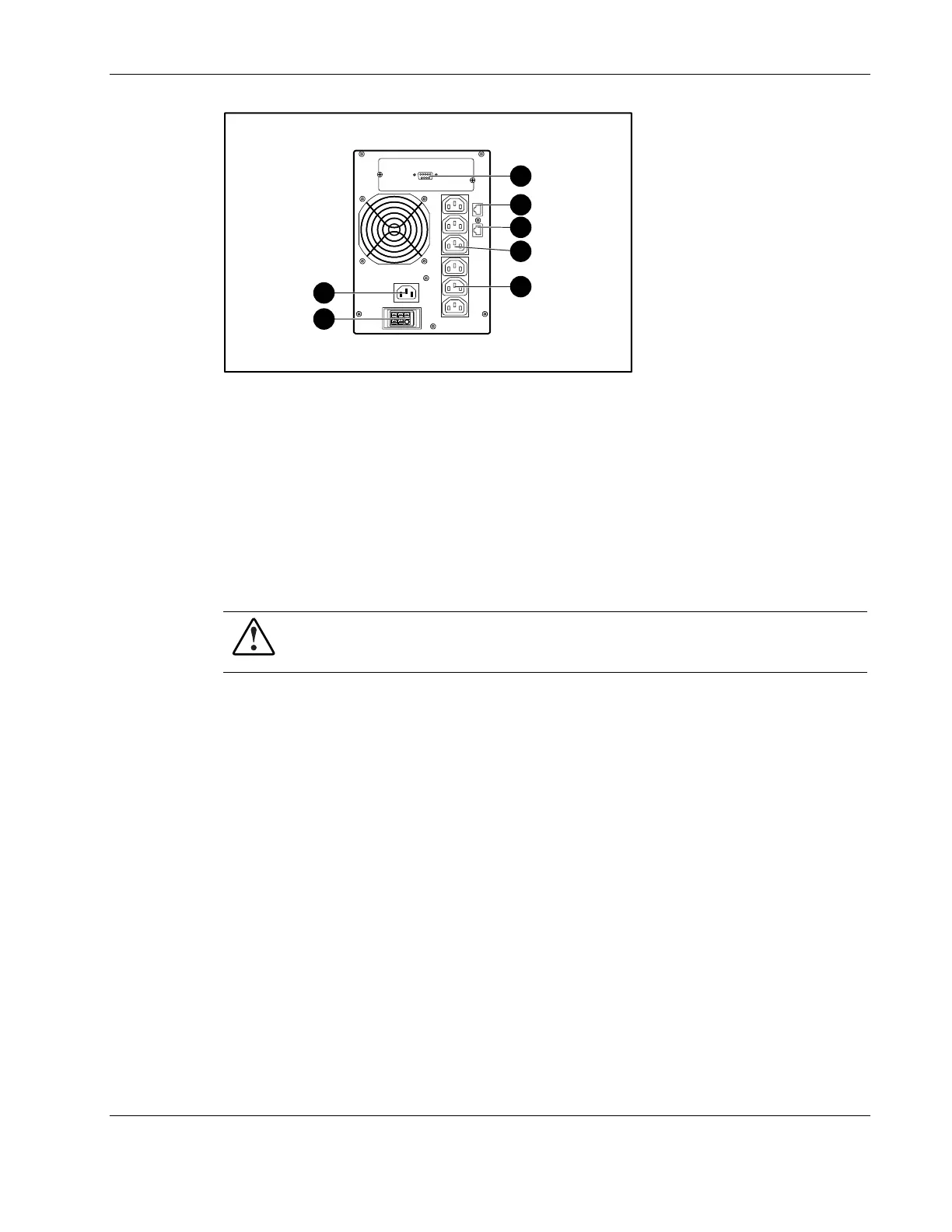

Figure 1-3: Rear panel of T1000 XR H INT’L
1 Communications port/option slot
2 Network Transient Protector OUT jack
3 Network Transient Protector IN jack
4 Load segment 1 (three IEC-320-C13 receptacles)
5 Load segment 2 (three IEC-320-C13 receptacles)
6 ERM connector
7 Input power receptacle (IEC-320-C14) for country-specific
plug attachment
WARNING: Risk of personal injury from electric shock. This model is not suitable for
installation where the total earth (ground) conductor leakage current for all connected
devices exceeds 3.5 mA.
