Operation
This chapter contains information on operating the UPS. Topics include the front panel
controls, LED indicators, and modes of operation. Knowledge of these features is helpful
when configuring and troubleshooting the unit.
NOTE: For installation considerations and procedures, refer to the instructions included with the UPS.
Copies of this document can be downloaded from www.hp.com.
Front Panel Controls and LED Indicators
The front panel controls and LED indicators provide an easy-to-use interface for UPS
configuration and monitoring.
1 32 4 5
10
6
7
8
9
1112 1314
15

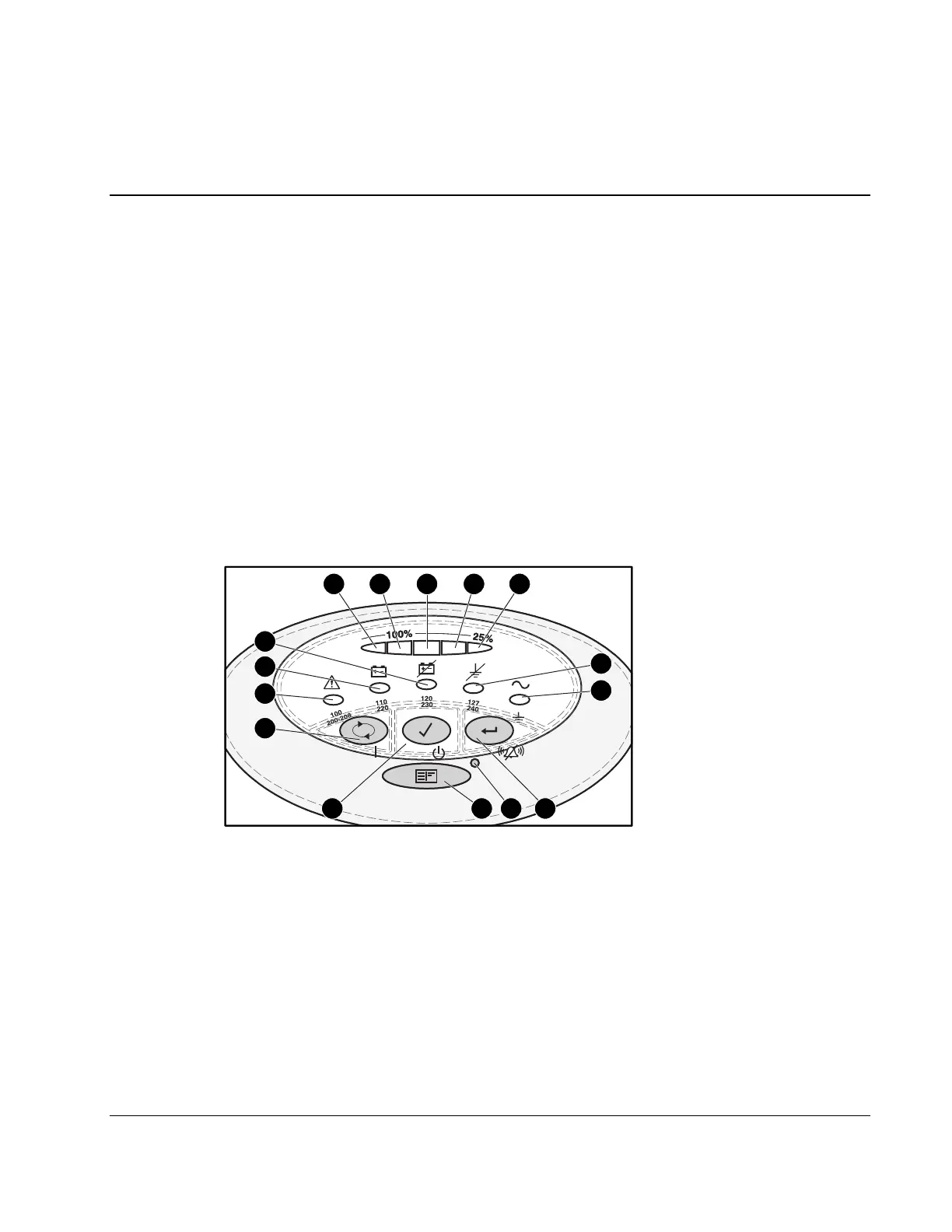

Figure 2-1: Front panel LED display and controls when front bezel
removed
Item Description Meaning/Function
1 Overload LED Red—UPS load exceeds maximum power available.
2 76% to 100% load Green—UPS load approximately 76% to 100% of maximum power.
3 51% to 75% load Green—UPS load approximately 51% to 75% of maximum power.
4 26% to 50% load Green—UPS load approximately 26% to 50% of maximum power.
5 0% to 25% load Green—UPS load approximately 0% to 25% of maximum power.
continued

HP T1000 XR Specifications

General

Output Power Capacity (Watts)	900 Watts
Topology	Line Interactive
Rack Height	2U
Waveform Type	Sine Wave
Nominal Output Voltage	230V
Nominal Input Voltage	230V
Typical Backup Time at Half Load	15 minutes
Interface Port	USB
Device Type	UPS
Input Voltage	230V
Output Voltage	230V
Frequency	50/60 Hz
Waveform	Sine Wave
Typical Recharge Time	3 hours
Operating Temperature	0 to 40°C
Storage Temperature	-15 to 45°C
Relative Humidity	0 to 95% non-condensing
Output Power Capacity	1000 VA
Input Connection	IEC C14
Battery Type	Sealed Lead Acid
Transfer Time	4 ms
Dimensions	438 x 89 x 482 mm
