HP TC1100 - Compaq Tablet PC

Identifying Exterior Hardware
Startup Guide 5–11

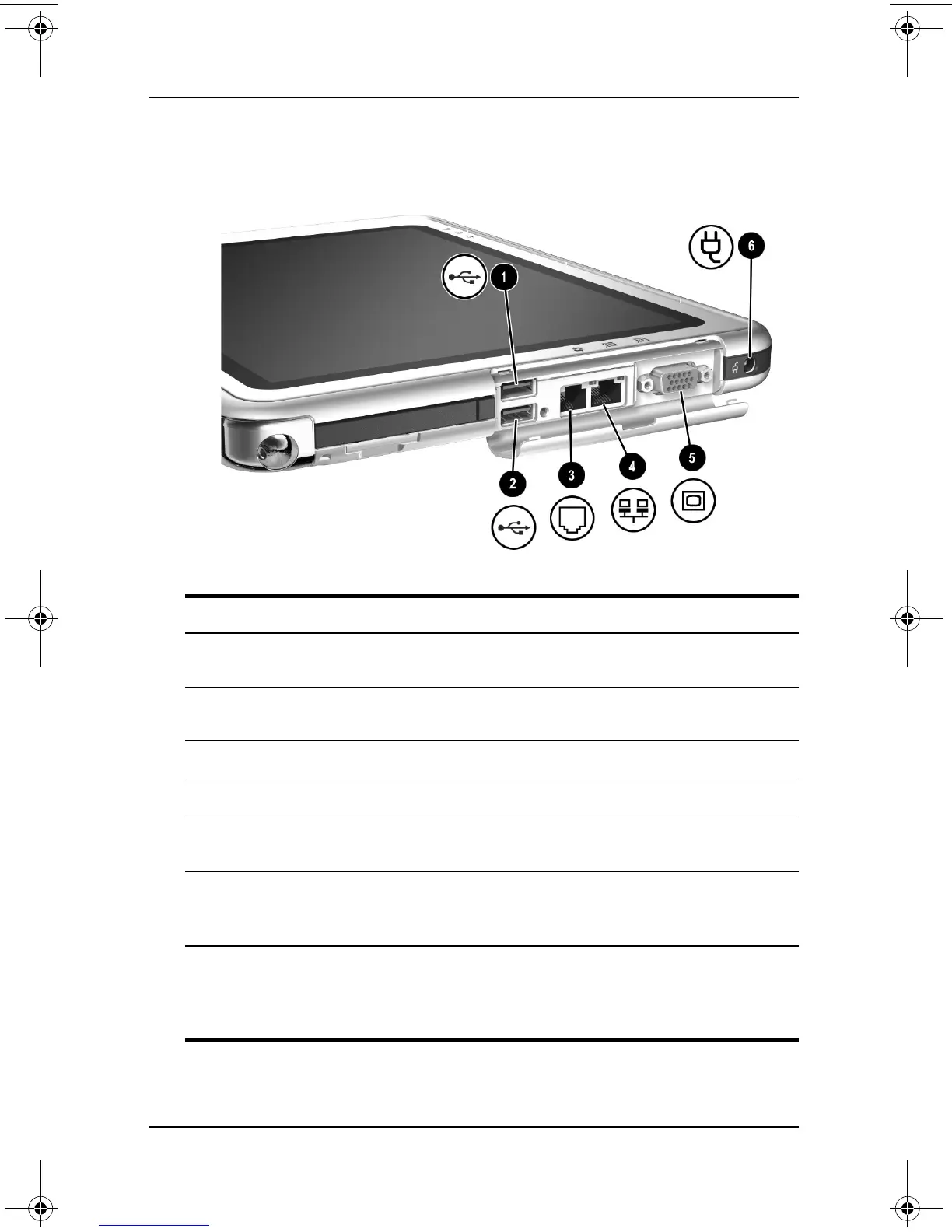

Top: Connectors and Jacks
Component Description
1
USB connector Connects an optional USB 2.0- or
1.1-compliant device.*
2
External MultiBay
connector
Connects an optional USB 2.0- or
1.1-compliant device.*
3
RJ-11 telephone jack Connects a modem cable.
4
RJ-45 network jack Connects an Ethernet network cable.
5
External monitor connector Connects an optional VGA external
monitor or projector.
6
AC power connector Connects an AC adapter, Auto/Air
Cable, or Automobile Power
Adapter/Charger.
*If an optional External MultiBay is connected to the USB connector, the
External MultiBay must also be connected to external power. If an External
MultiBay is connected to the External MultiBay connector, it is not
necessary to connect the External MultiBay to external power.
