5–14 Startup Guide

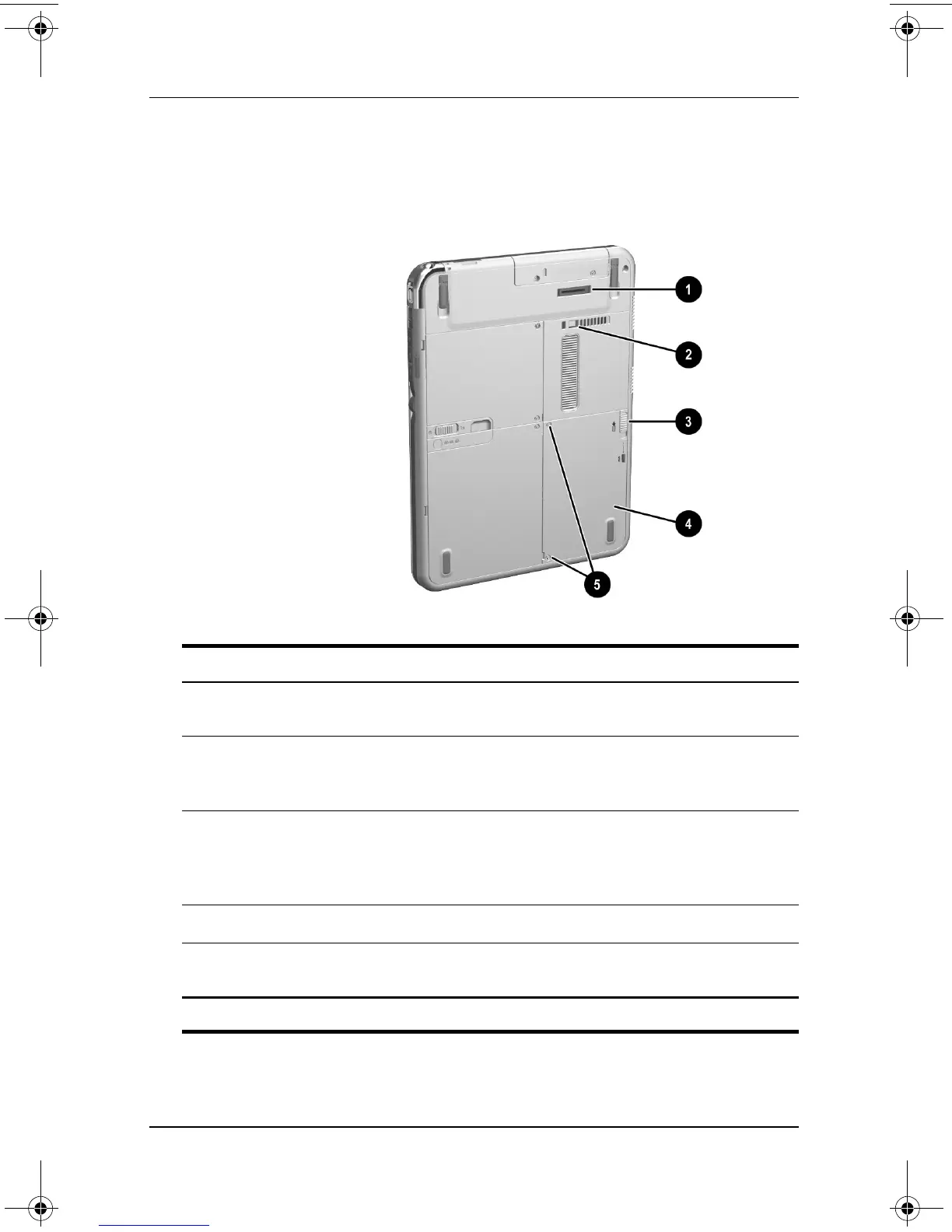

Identifying Exterior Hardware
Back: Attachment Features and Hard
Drive Bay
Component Description
1
Docking connector Connects the tablet PC to an optional
Docking Station.
2
Docking restraint latch
recess
Accepts the docking restraint latch on
an optional Docking Station to secure
the tablet PC to the Docking Station.
3
Attachment release switch Releases an attachment, such as the
portfolio, a screen protector*, or a
tablet PC keyboard, from the universal
attachment slots on the tablet PC.
4
Hard drive bay Holds the system hard drive.
5
Hard drive bay retaining
screws (2)
Secure the hard drive bay cover to the
tablet PC.
*A screen protector is included with an optional Tablet PC Docking Station.
