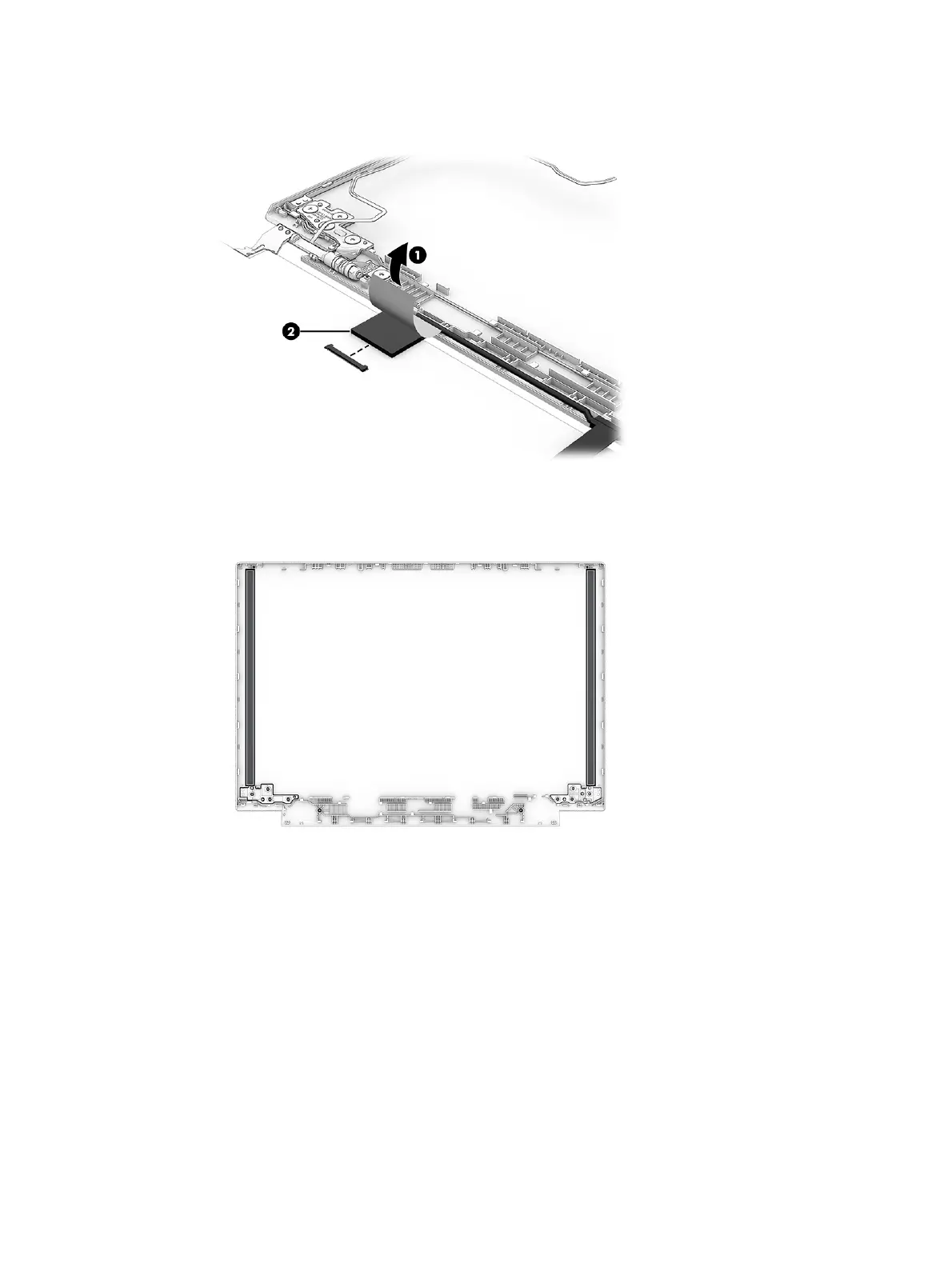

d. To disconnect the cable from the display panel, lift the tape from the connector on the panel (1),
and then disconnect the cable (2).
e. When installing the display panel, install the adhesive strips on each side of the display back cover
as shown in the following illustration.
Display panels are available as the following spare part numbers:
N13293-001: FHD, SVA, 250 nits
N13294-001: FHD, UWVA, 250 nits
N13295-001: FHD, UWVA, 250 nits, 144 Hz
N13296-001: FHD, UWVA, 300 nits
The panel adhesive kit is available as spare part number N13334-001.
3. You can remove the camera module with the display assembly connected to the computer. To remove
the camera module:
42
Chapter 6Removal and replacement procedures for authorized service provider parts
