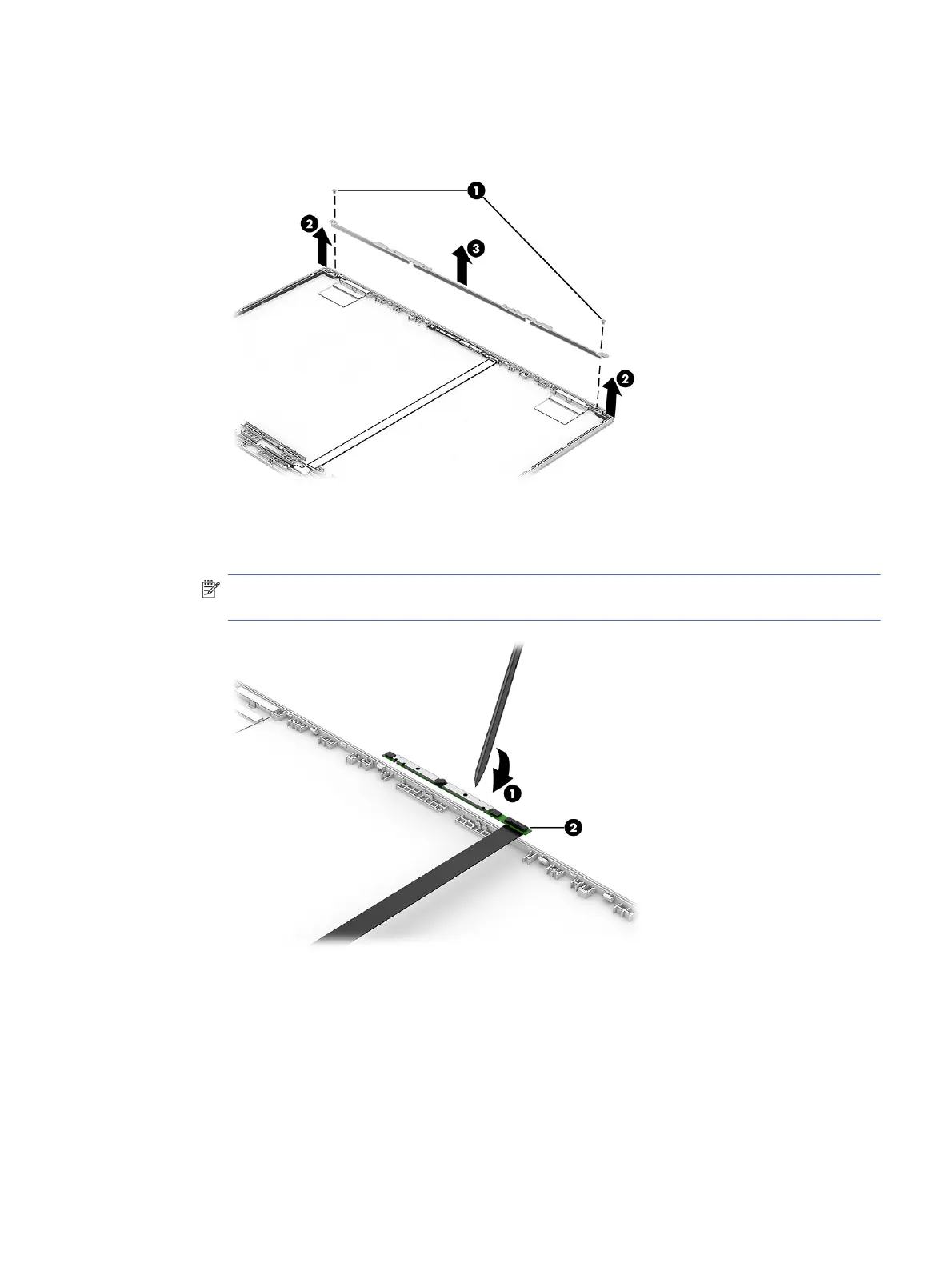

a. Remove the two Phillips 1.6 × 2.5 screws (1) that secure the top bracket, lift up the hinge brackets
slightly (2), and then pull the top bracket out from under the hinge brackets to remove it (3). The
top bracket is available as spare part number N13330-001.
b. Use a tool to lift up evenly across the module and peel the module up from the display back cover
(1), and then disconnect the cable from the reverse ZIF connector on the module (2). The camera
module is available as spare part number N13328-001.
NOTE: For installation, note that the cable routes under the camera module before it connects to
the module.
Display subcomponents (without removing the display) 43
