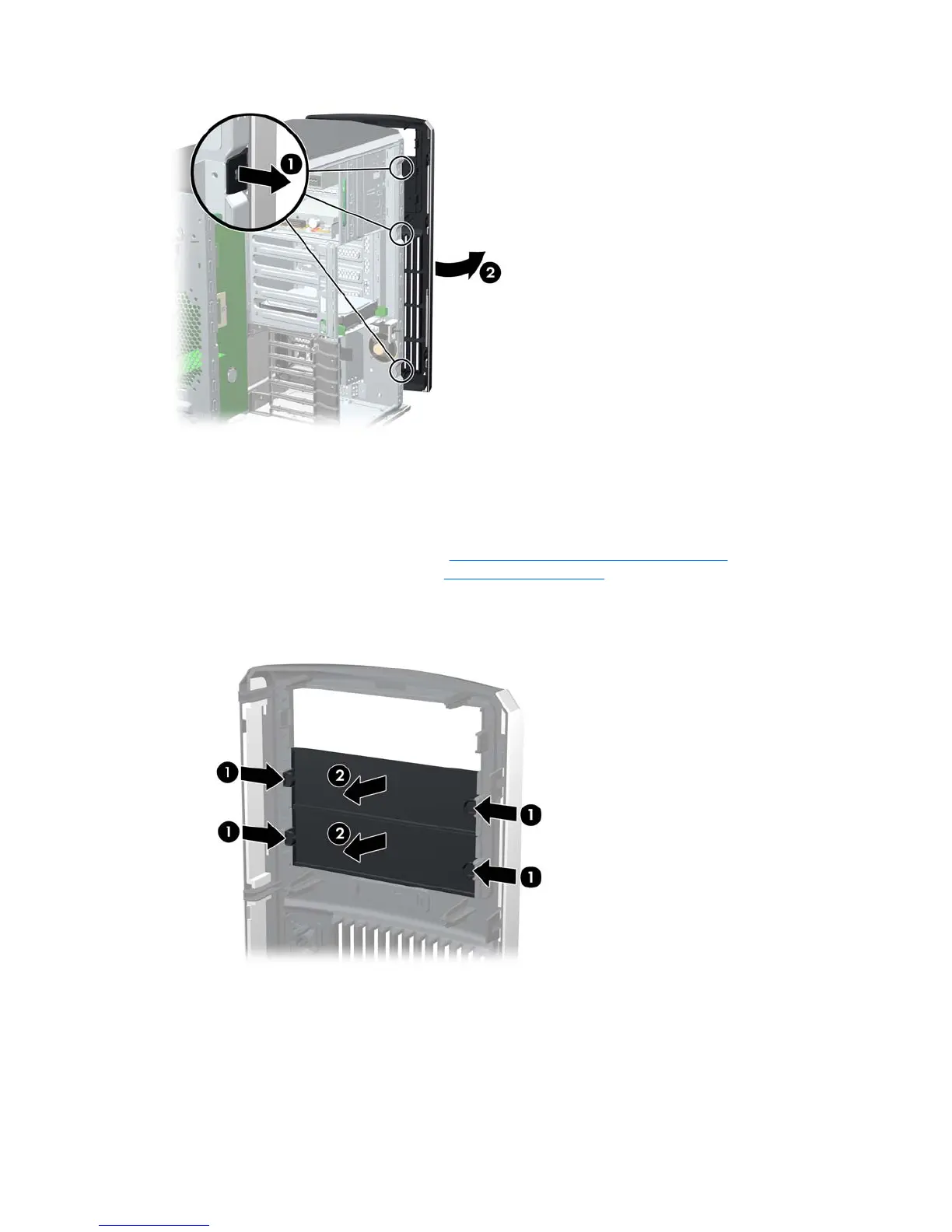

Figure 4-6 Opening the front bezel
Bezel blanks
To remove the bezel blanks:
1. Disconnect power from the system, (
Pre-disassembly procedures on page 55), remove the access
panel, and remove the front bezel (
Front bezel on page 62)
2. Remove the bezel blanks by squeezing in on the tabs (1) and pulling in the bezel blanks (2).
Figure 4-7 Removing the bezel blanks
ENWW Removing and replacing components 63
