Product features
Exploded view
The following image shows a typical HP xw9400 Workstation (drive configurations can vary).
For complete and current information on supported accessories and components, see
http://partsurfer.hp.com.

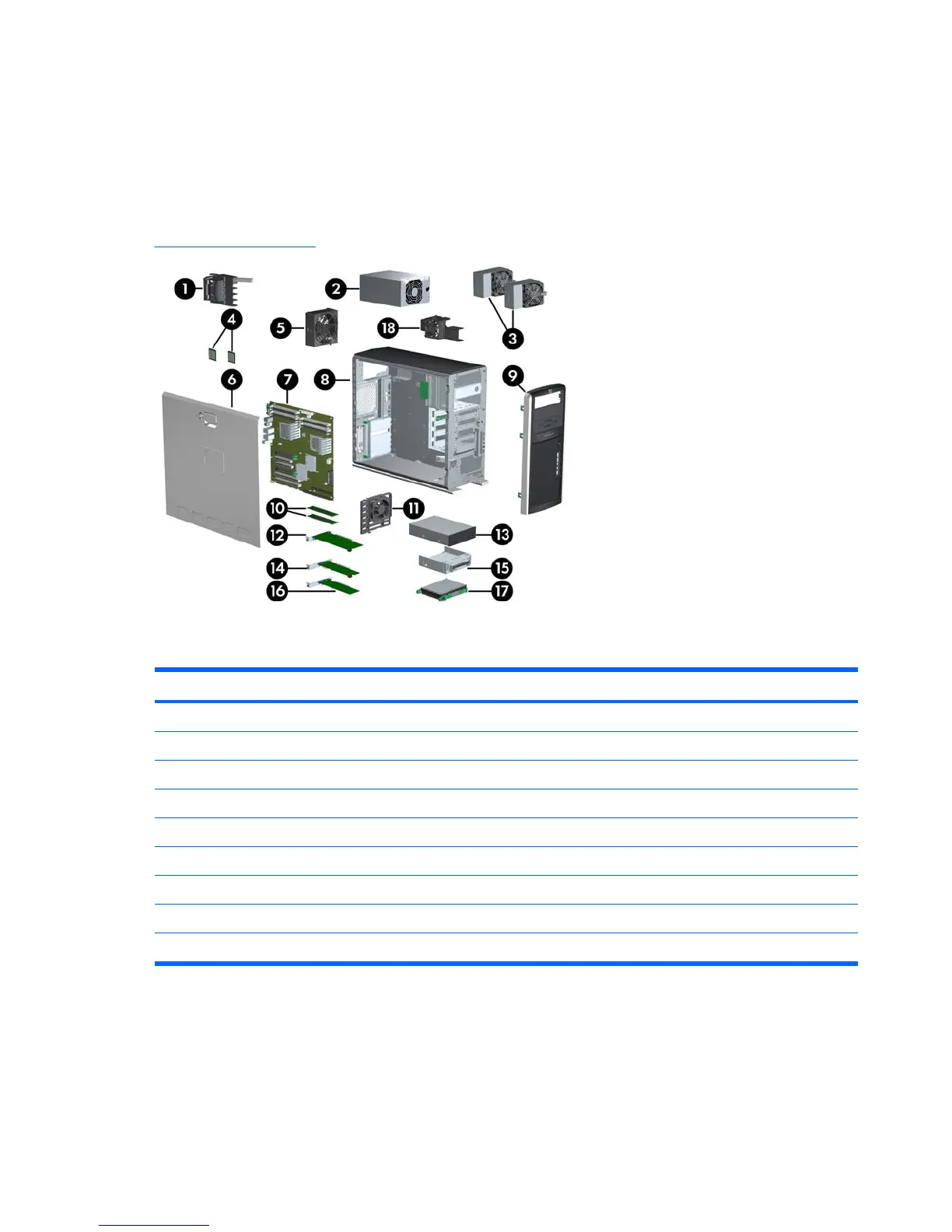

Figure 1-1 Exploded view
Table 1-1 Exploded view
Item Description Item Description
1 PCI card support 10 Memory modules
2 Power supply 11 Card guide/Front fan
3 CPU heatsinks 12 Graphics card
4 Processors 13 Optical drive*
5 System fan 14 PCIe card
6 Access panel 15 Diskette drive
7 System board 16 PCI card
8 Chassis 17 Hard drive
9 Front bezel 18 Memory fan
* A CD-ROM is an example of an optical drive.
2 Chapter 1 Product overview ENWW
