Rear panel components

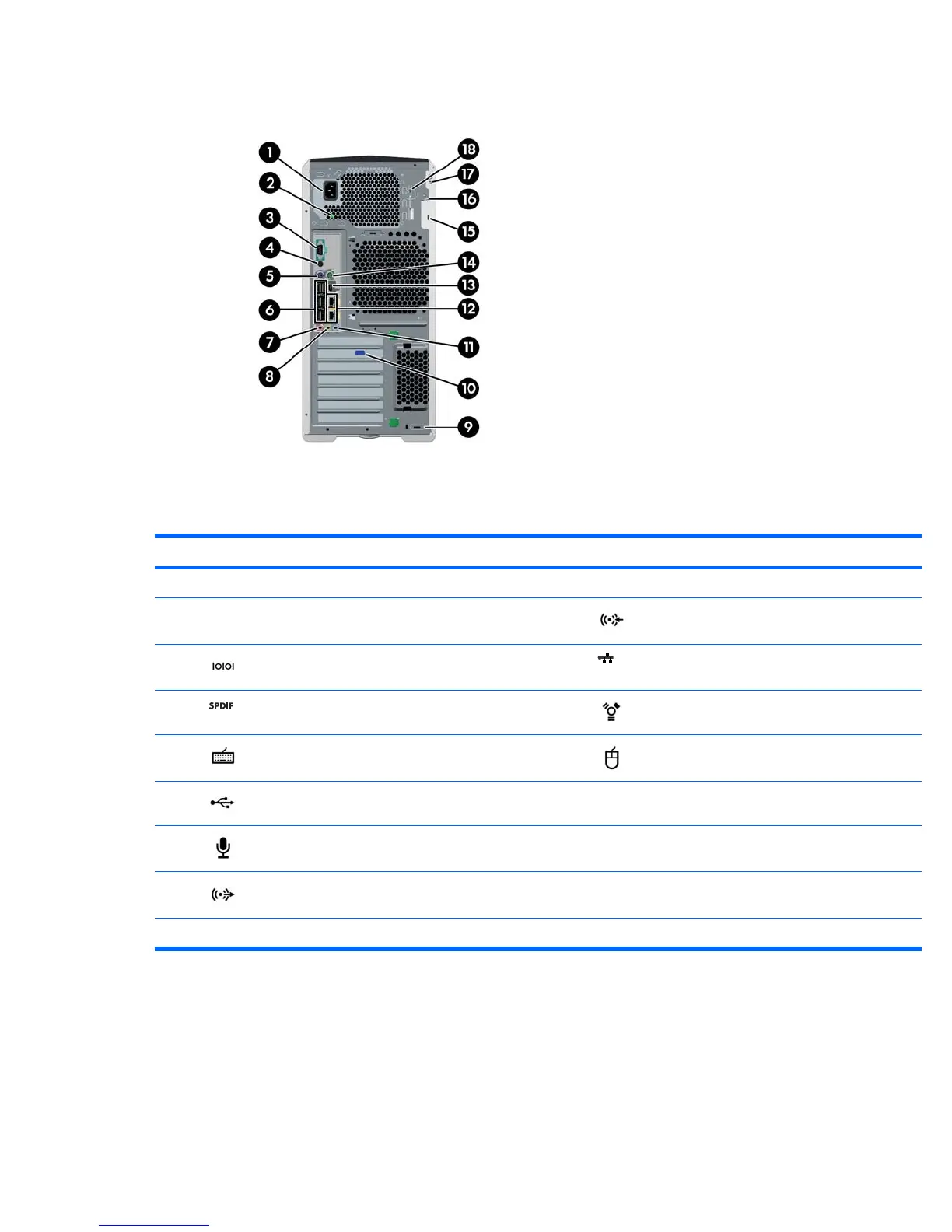

Figure 1-3 Rear panel components
Table 1-3 Rear panel components
Item Symbol* Description Item Symbol Description
1 Power cord connector 10 Graphics adapter
2 Built In Self Test (BIST) LED 11 Audio line-in connector
3 Serial connector 12 RJ-45 network connectors
4 SPDIF OUT** 13 IEEE-1394a connector
5 Keyboard connector 14 Mouse connector
6 USB 2.0 ports 15 Cable lock slot
7 Microphone connector 16 Padlock loop
8 Audio line-out connector 17 Universal chassis clamp opening
9 MiniSAS 4–port connector (optional) 18 Access panel key
* The rear panel connectors are labeled with industry-standard icons and colors to assist you in
connecting your peripheral devices.
** SPDIF OUT is a single RCA jack to support SPDIF digital audio output via coax cable.
4 Chapter 1 Product overview ENWW
