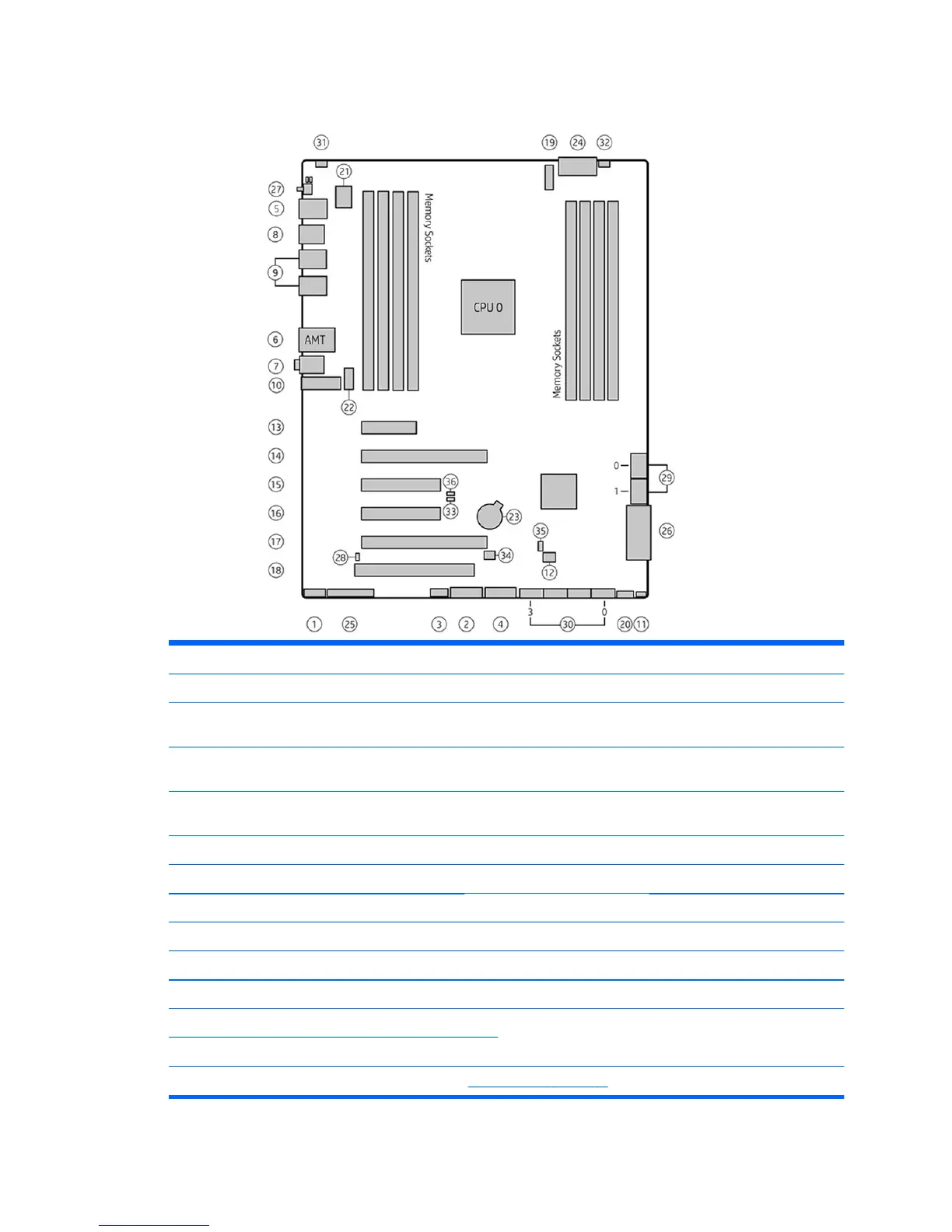

HP Z440 Workstation system board components

I/O PCI/PCIe Power Security

1 Front audio 13 PCIe2 x1 23 Battery 31 Chassis intrusion sensor

2 Front USB 3.0 14 PCIe3 x16 24 Processor and memory

power

32 Chassis solenoid lock

3 Internal USB 2.0 15 PCIe2 x4 25 Front UI/power button/

LED

Service

4 Internal USB 3.0 16 PCIe3 x8 26 Main power 33 Boot Block Recovery (BBR)

jumper

5 Keyboard/mouse 17 PCIe3 x16 27 Rear power button/LED 34 Clear CMOS button

6 Network 18 PCI 32/33 SATA (SAS Optional) 35 ME/AMT flash override

7 Rear audio Cooling 28 Hard drive LED 36 Password jumper

8 Rear USB 2.0 19 CPU0 fan 29 SATA 6 Gb/s

9 Rear USB 3.0 20 Front fan 30 sSATA 6 Gb/s

10 Serial (optional) 21 Memory fans

11 Speaker 22 Rear fan

Thunderbolt

GPIO

NOTE: For related expansion card slot information, see

Expansion slots on page 51

HP Z440 Workstation components 5
