HP Z640 Workstation Series Service Manual

132 pages

To Next Page

To Previous Page

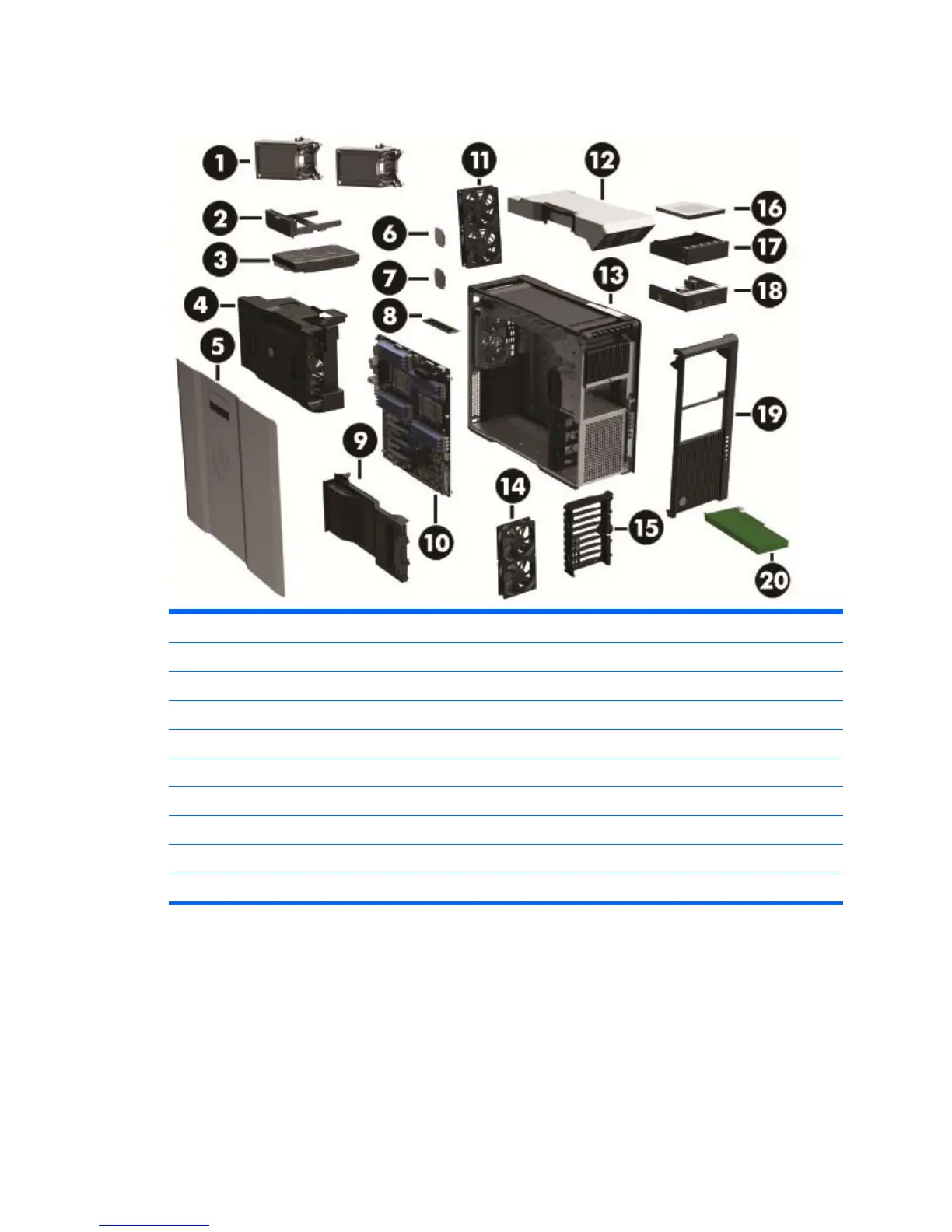

HP Z840 Workstation chassis components

1 Processor heatsinks (primary and secondary) 11 Rear system fans

2 Hard drive carrier 12 Power supply

3 Hard drive 13 Chassis

4 Processor/memory fans 14 Front system fans (two fans with 1125 W power supply)

5 Side access panel 15 PCI card guide

6 Processor 16 Optical drive, slim

7 Second processor (optional) 17 Front bay filler

8 Memory module (DIMM) 18 Media card reader

9 PCI Retainer 19 Front bezel

10 System board 20 PCIe card

HP Z840 Workstation components 17

Questions and Answers:

Need help?

Do you have a question about the HP Z640 Workstation Series and is the answer not in the manual?

General

Chipset	Intel C612
Memory Slots	8 DIMM slots
Form Factor	Tower
Processor Options	Intel Xeon E5-2600 v3/v4
Storage Options	SATA, SAS, SSD
Storage Controllers	Integrated SATA 6.0 Gb/s controller
Graphics Options	NVIDIA Quadro, AMD FirePro
Expansion Slots	1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCI
Audio	Integrated Realtek HD ALC221
Networking	Integrated Intel I218LM PCIe GbE
Operating Systems	Windows 10
