HP Z640 Workstation Series Service Manual

HP Z640 Workstation components
For complete and current information on supported accessories and components for the computer, see
http://partsurfer.hp.com.
●
HP Z640 Workstation front panel components
●
HP Z640 Workstation rear panel components
●
HP Z640 Workstation chassis components
●
HP Z640 Workstation system board components
●
HP Z640 Workstation system board architecture
●
HP Z640 Workstation system board riser architecture
●
HP Z640 Workstation specifications

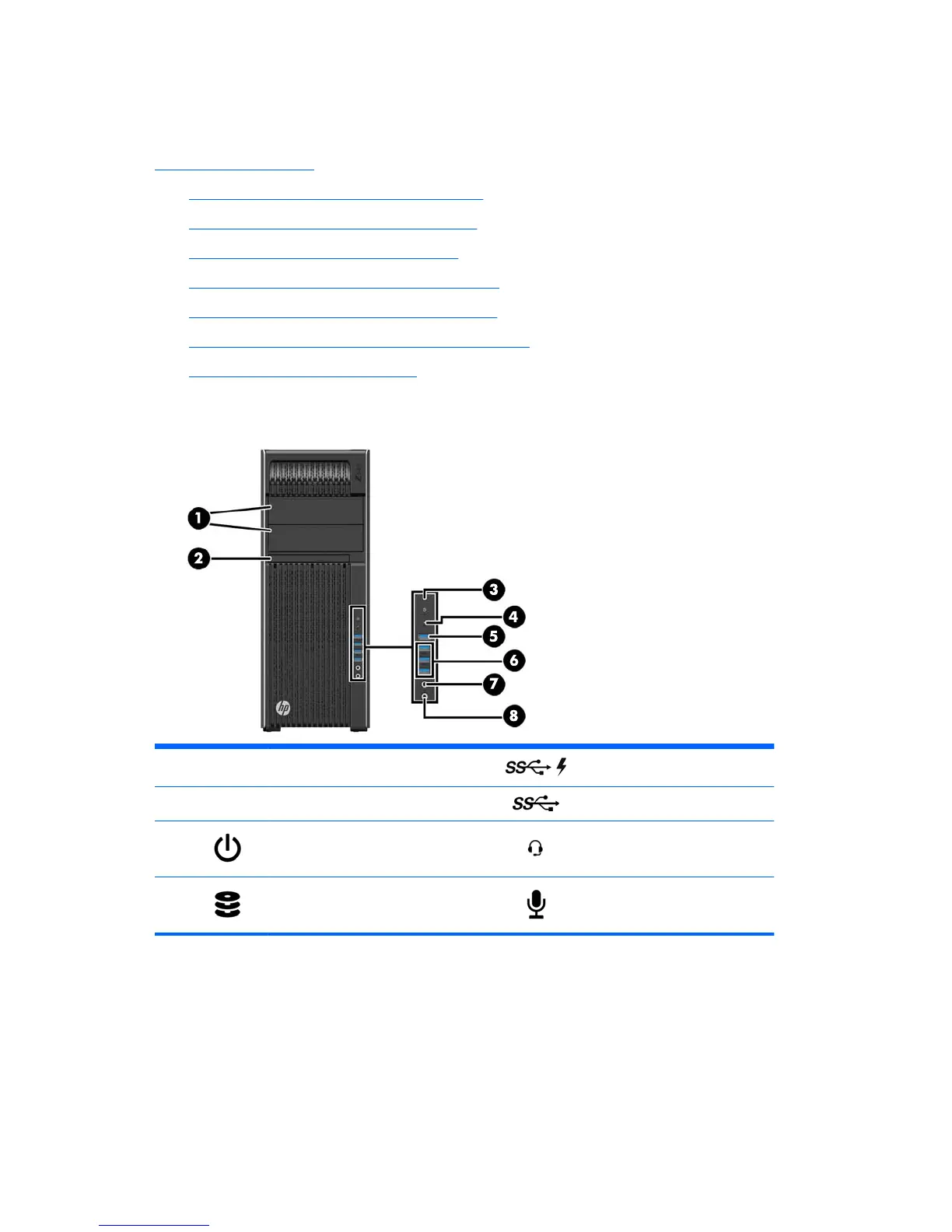

HP Z640 Workstation front panel components
1 External drive bays 5 USB 3.0 charging port
2 Optical drive 6
USB 3.0 ports (3)
3
Power button and LED 7
Audio-out (headphone)/Audio-in
(microphone) combo jack
4
Hard drive activity light 8 Microphone jack
8 Chapter 1 Hardware overview

HP Z640 Workstation Series Specifications

General

Chipset	Intel C612
Memory Slots	8 DIMM slots
Form Factor	Tower
Processor Options	Intel Xeon E5-2600 v3/v4
Storage Options	SATA, SAS, SSD
Storage Controllers	Integrated SATA 6.0 Gb/s controller
Graphics Options	NVIDIA Quadro, AMD FirePro
Expansion Slots	1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCI
Audio	Integrated Realtek HD ALC221
Networking	Integrated Intel I218LM PCIe GbE
Operating Systems	Windows 10
