HP Z640 Workstation Series Service Manual

132 pages

To Next Page

To Previous Page

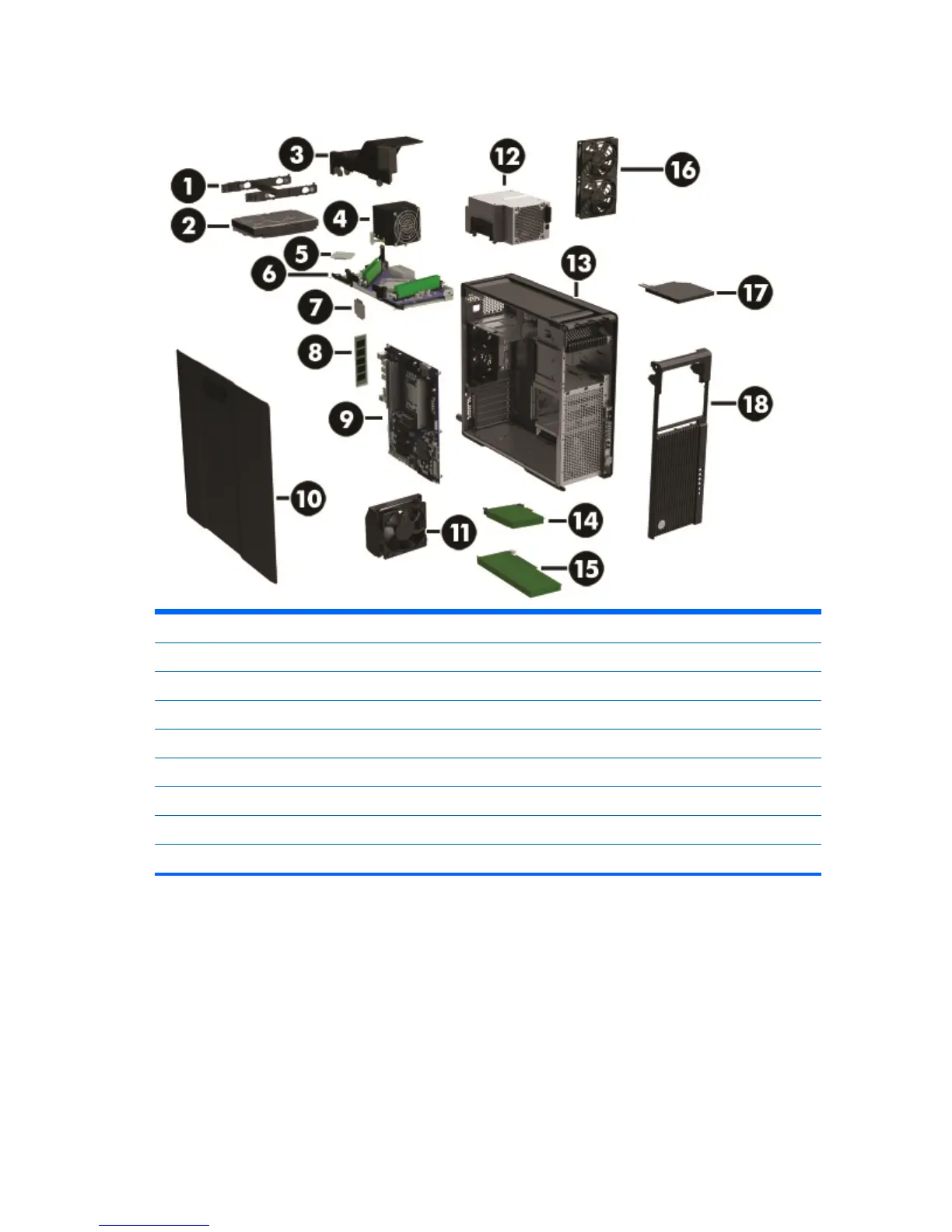

HP Z640 Workstation chassis components

1 Hard drive carrier 10 Side access panel

2 Hard drive, 3.5-inch 11 Card guide and front fan

3 Fan baffle 12 Power supply

4 Processor Heatsink 13 Chassis

5 Processor 14 PCI card

6 Second processor module (optional) 15 PCIe card

7 Second processor (optional) 16 Rear system fan

8 Memory module (DIMM) 17 Optical drive, slim

9 System board 18 Front bezel

10 Chapter 1 Hardware overview

Questions and Answers:

Need help?

Do you have a question about the HP Z640 Workstation Series and is the answer not in the manual?

General

Chipset	Intel C612
Memory Slots	8 DIMM slots
Form Factor	Tower
Processor Options	Intel Xeon E5-2600 v3/v4
Storage Options	SATA, SAS, SSD
Storage Controllers	Integrated SATA 6.0 Gb/s controller
Graphics Options	NVIDIA Quadro, AMD FirePro
Expansion Slots	1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCI
Audio	Integrated Realtek HD ALC221
Networking	Integrated Intel I218LM PCIe GbE
Operating Systems	Windows 10
