HP Z640 Workstation Series Service Manual

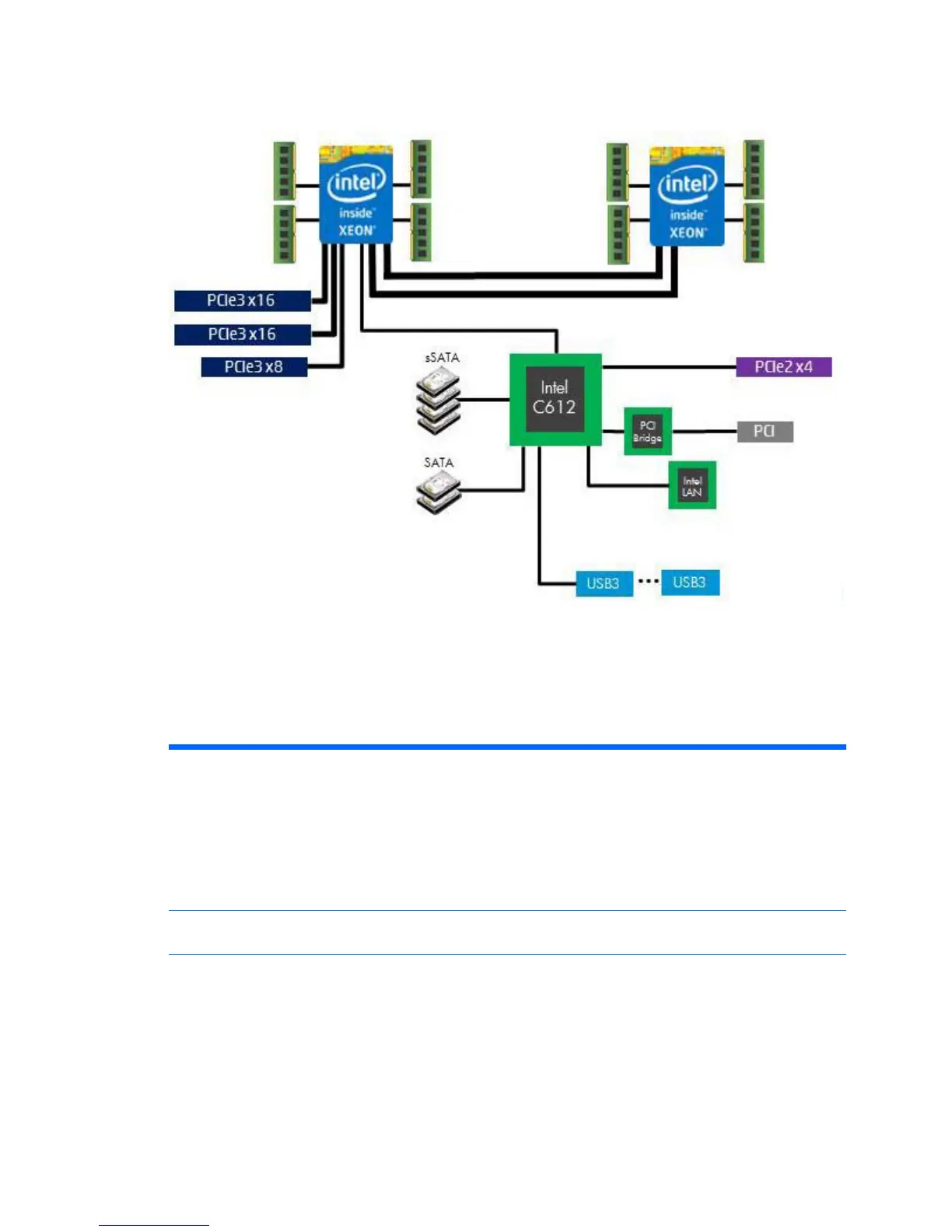

HP Z640 Workstation system board riser architecture
●
Dark blue slots are attached to CPU0 and available with CPU0.
●
Purple and gray slots are attached to PCH.
●
White slots are attached to CPU1 and available when CPU1 is installed.
HP Z640 Workstation specifications
Processor
technology
Intel Series C612 chipset:
●
Support for the Intel Xeon Processor E5-1600 Series and E5-2600 Series
●
Integrated 4-channel memory controller
●
Microarchitecture improvements
●
Large L3 cache for superior performance
●
Intel QuickPath Interconnect (QPI) connects processors and I/O controller with speeds up to 9.6 GT/s
Power supply
●
925 W Gold, 90% efficient, wide-ranging, active Power Factor Correction, two auxiliary dongles on two
separate 12V rails, ERP 0.5W, Built-in-Self Test (BIST)
Memory
technology
●
Dual in-line memory modules (DIMMs) based on DDR4 2133 MHz technology
●
Error checking and correcting (ECC)-protected
●
Eight direct-attach memory channels (four per processor) enable low-latency access and fast data
transfer for improved performance
●
Configurations with one processor have four DIMM slots; a second processor adds four more DIMM
slots
HP Z640 Workstation components 13

HP Z640 Workstation Series Specifications

General

Chipset	Intel C612
Memory Slots	8 DIMM slots
Form Factor	Tower
Processor Options	Intel Xeon E5-2600 v3/v4
Storage Options	SATA, SAS, SSD
Storage Controllers	Integrated SATA 6.0 Gb/s controller
Graphics Options	NVIDIA Quadro, AMD FirePro
Expansion Slots	1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCI
Audio	Integrated Realtek HD ALC221
Networking	Integrated Intel I218LM PCIe GbE
Operating Systems	Windows 10
