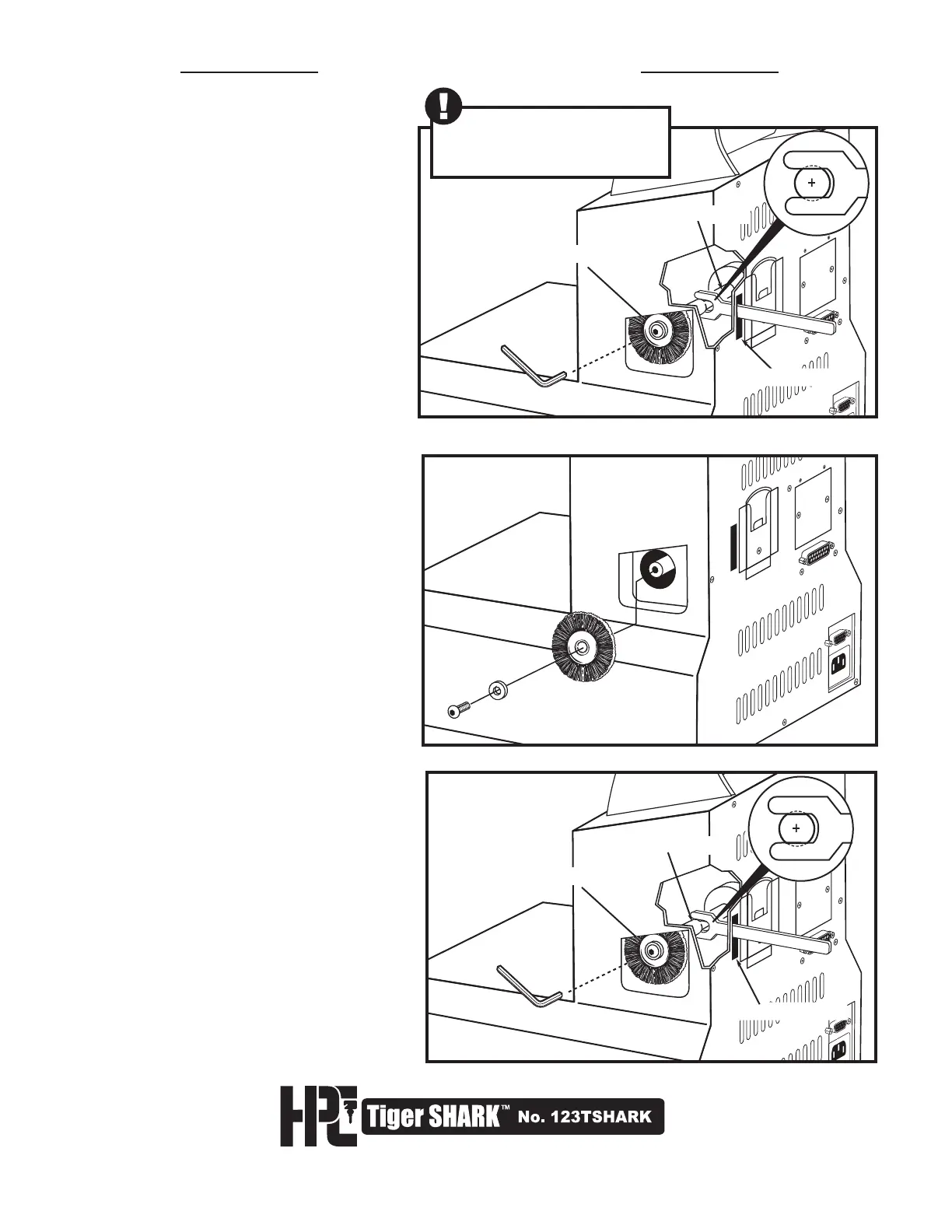

6.1 Replacement of Deburring Brush
2. Remove worn Deburring Brush by
pulling brush toward you and then down
and out of machine recess.
3. INSTALLATION: Install new Deburring
Brush into recess and place onto
cutter shaft.
4. Re-insert Adjustment Wrench into wrench
slot if required and align with flat area of
cutter shaft. While holding wrench to
secure shaft from turning, insert washer
and Allen Screw. Tighten Allen Screw
with supplied Allen Wrench.
1. REMOVAL: Using Adjustment Wrench
provided, locate the wrench slot on back
of machine. Insert Adjustment Wrench
into slot, and align onto flat section of
cutter shaft. (You may have to turn shaft
manually to align flat area to wrench).
Hold wrench to secure shaft from turning,
while unscrewing Brush Retaining Screw
with Allen Wrench supplied.
NOTE: If you are installing a new
Deburring Brush at this time, you can
leave Wrench affixed in place on cutter
shaft.
To Next Page
