HPC Tiger SHARK - Remove Cutter Head Housing

53

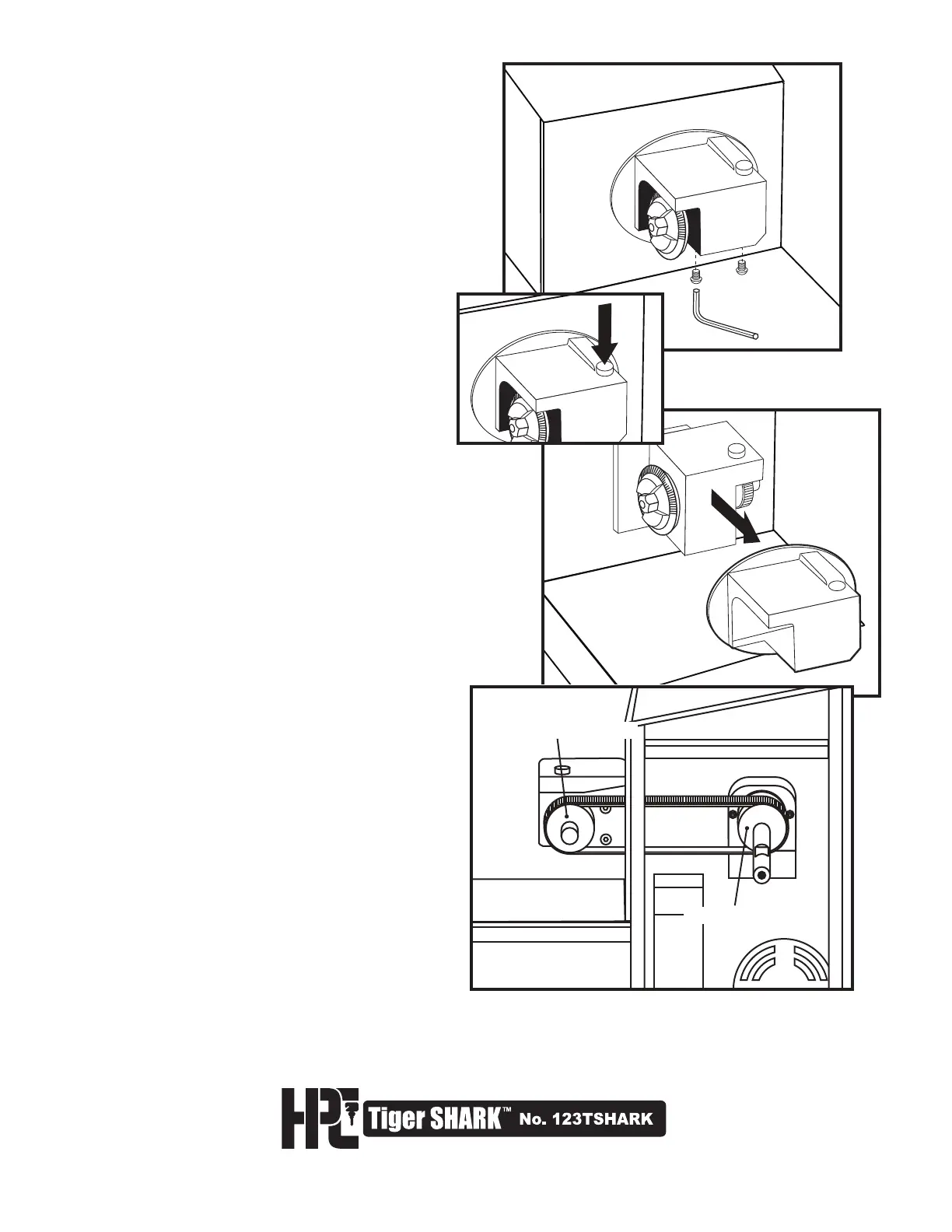

5. REMOVE CUTTER HEAD HOUSING:
Using the Allen Wrench provided,
remove the two Allen Screws located
underneath the Cutter Head Housing
(Fig. 1).
6 . Depress the Shaft-Lock Button (Fig. 2).
7. You can now remove the Cutter Head
Housing (Fig. 3).
Fig. 1
Fig. 2
Fig. 3
Fig. 4
8. You should now be able to identify and
access both of the Cutter Head Pulleys,
and the Cutter Head Belt Belt (Fig. 4).
FRONT CUTTER HEAD PULLEY
REAR CUTTER HEAD PULLEY
