DEBURRING BRUSH RECESS

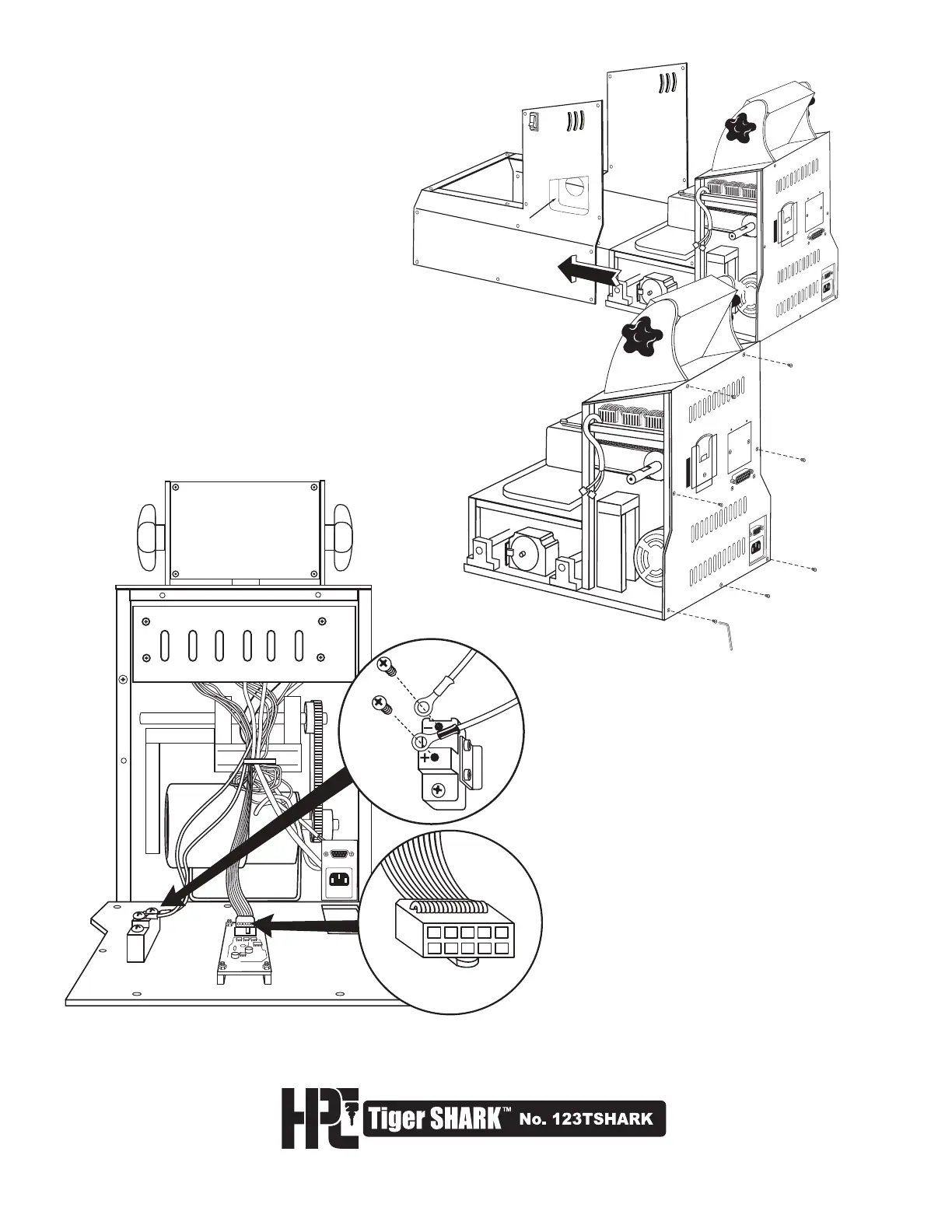

4. REMOVE LOWER CHASSIS COVER:
You can now remove the lower chassis
cover. Grasping the cover by the top side
panels, spread the panels slightly and
move cover carefully away from the
machine. NOTE: The top right panel,
(the side with the power switch) will
need to be spread away from the
machine a little more, to clear the
Deburring Brush Recess. Set Lower
Chassis Cover to the side.
5. LOOSEN BACK COVER:
Using Allen Wrench provided, remove
Allen Screws from back cover of machine.
There are seven (7) Allen Screws.
6. DISCONNECT DECODER PLATE POWER
TERMINAL: Using a Phillips Screwdriver,
unscrew the Connector screws from the
Decoder Plate Terminal to release
Connector wires (Fig. 1).
7. UNPLUG CIRCUIT BOARD CONNECTOR:
Grasp and carefully pull black plastic
connector from the circuit board.
8. You can now remove and set aside the
back panel (Fig. 2).
Fig. 1
Fig. 2
