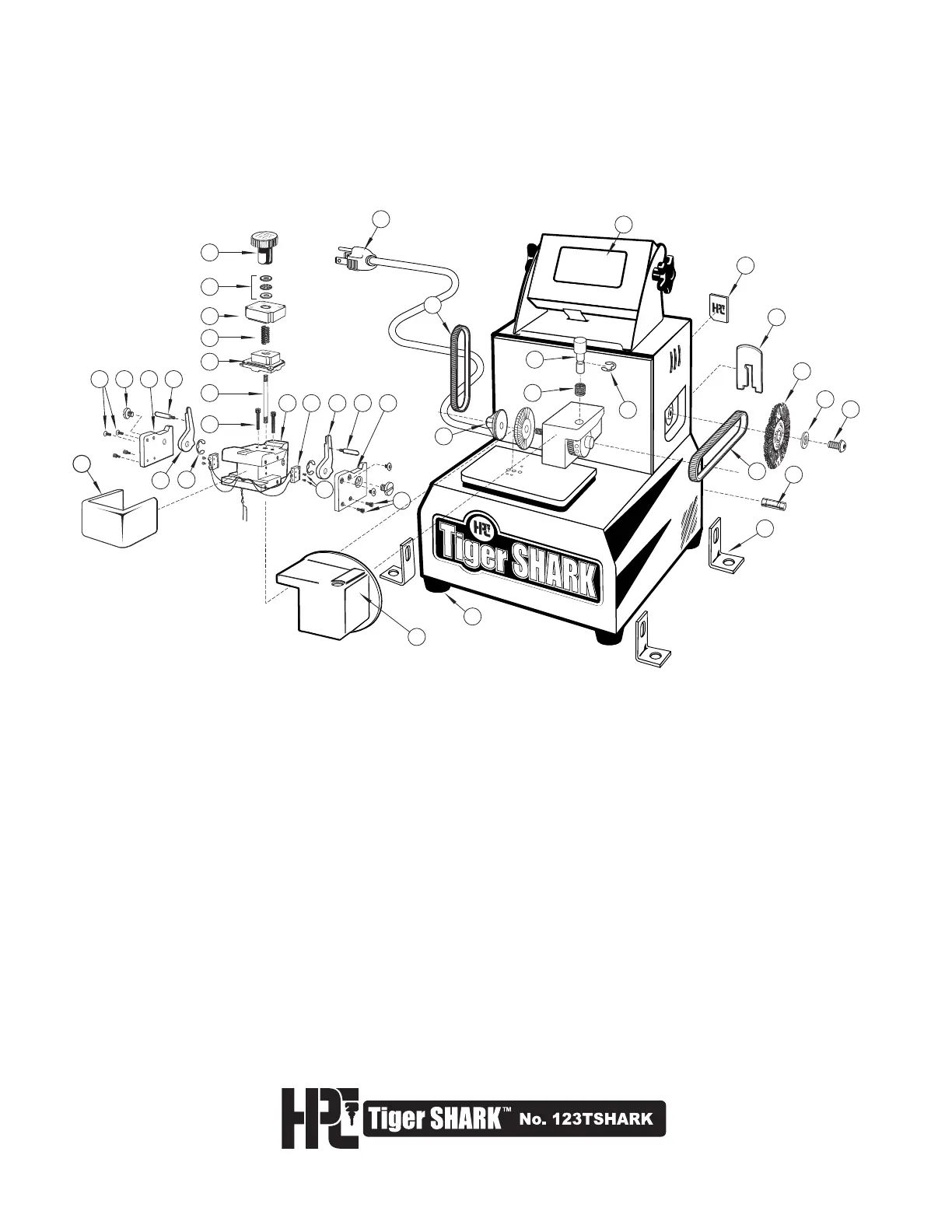

1. Wing Nut ........................ (No. EGN-1)
2. Ball Bearing Washer ........ (No. BBW-2)
3. Top Jaw ........................ (No. TJ-123)
4. Spring ................................ (No. 9100-13)
5. Bottom Jaw ........................ (No. BJ-123)
6. Stud ................................ (No. SHARK-1)
7. Screws ........................ (No. SHARK-2)
8. Shoulder Gauge Handle .... (No. SHARK-27)
9. Jaw Pedestal Plate - Left ... (No. SHARK-3)
10. Housing Screw ................ (No. SHARK-5)
11. Retaining Screws ........ (No. SHARK-6)
12. Block ................................ (No. SHARK-7)
13. Microswitch (2) ................ (No. SHARK-8)
14. Tip Gauge ........................ (No. SHARK-9)
15. Tip Gauge Handle ........ (No. SHARK-27)
16. Jaw Pedestal Plate - Right (No. SHARK-11)
17. Retaining Screws ........ (No. SHARK-12)
18. Microswitch Screws ........ (No. SHARK-10)
19. E Clip ........................ (No. TRU-15)
20. Shoulder Gauge ................ (No. SHARK-4)
21. Jaw Pedestal Shroud ........ (No. SHARK-13)
22. Quick Nut ................................ (No. QN-100B)
23. Shaft Lock Plunger ................ (No. TSHARK-23)
24. Shaft Lock Spring ................ (No. CM-1293MA)
25. Shaft Lock Arc Ring ................ (No. TSHARK-25)
26. Decoder Plate ........................ (No. SHARK-18)
27. Softie
™
Deburring Brush ........ (No. TYX-3)
28. Washer ................................ (No.9100-26)
29. Retaining Screw (Allen) ........ (No.9160-20)
30. Cutter Belt ........................ (No. SHARK-17)
31. Hold-Down Brackets (4) ........ (No. SHARK-25)
32. Feet (4) ................................ (No. CM-50133MA)
33. Drive Belt ................................ (No. SHARK-16)
34. Restore & Update SD Card....... (No. SHARK-xxMMC)
35. Fuse ........................................ (No. MAX-78)
36. AC Cord (120VAC models) ...... (No. MAX-34)
37. Touch Pad Display ................ (No. SHARK-29)
38. Cutter Cover ........................ (No. TSHARK-38)
1
19
20
18
16
12 13 1514
21
7
6
5
4
3
2
11
10
9
8
17
38
34
37
35
36
