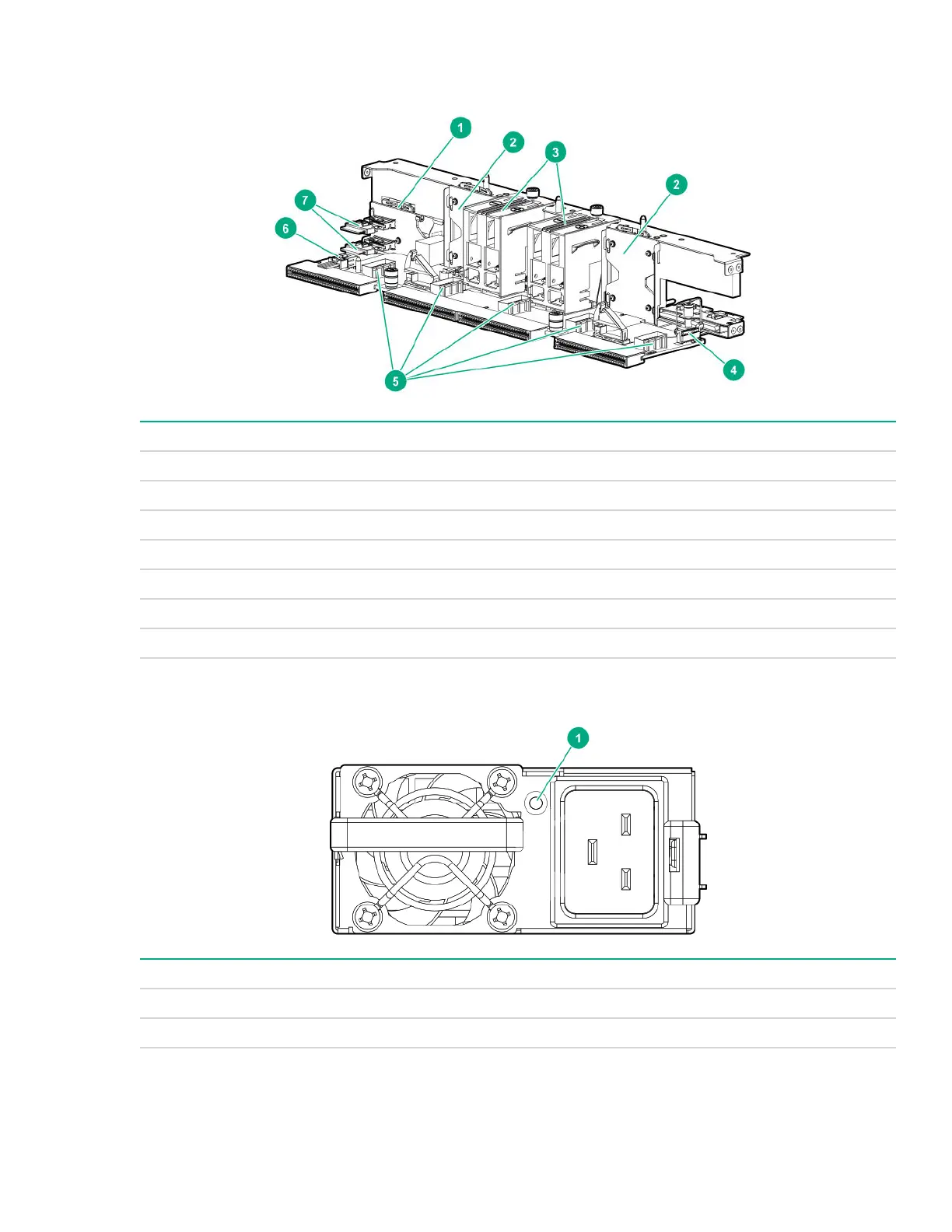

Power distribution board and bus bar components
Item Description
1 NVMe midplane
2 Processor/GPU midplane
3 Power busbars to GPU module
4 Front panel LED connector
5 Fan connectors 1-5
6 HPE Smart Storage Battery connector
7 NVMe port cable connectors
Power supply LED
Status Description
Solid green Power supply is on and is operating normally.
Flashing green (0.5 Hz) 12 V standby power present (Power supply off)
Table Continued
