HPE Apollo 6500 Gen10

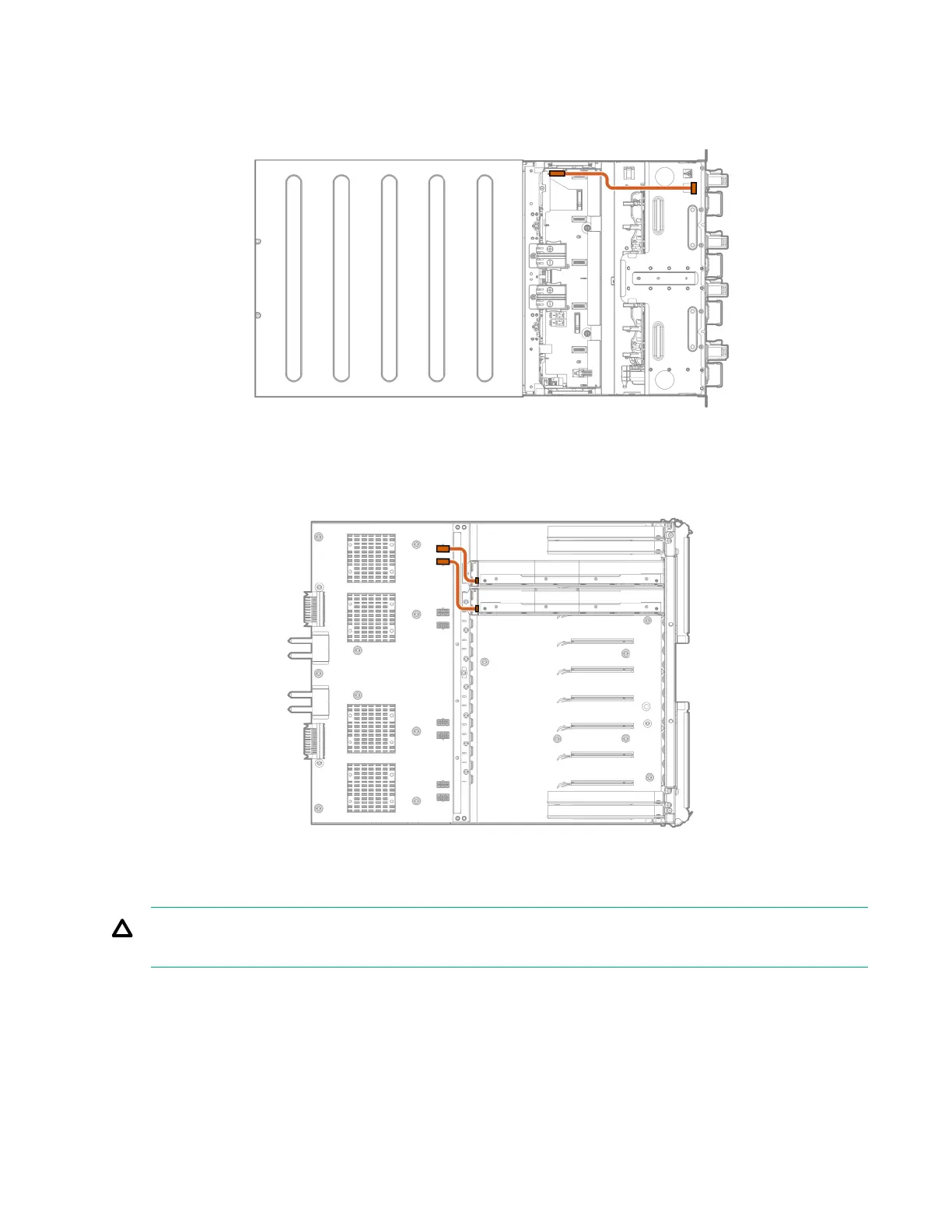

Front LED/power/UID cabling
GPU module power cabling
HPE Smart Storage Battery cabling
CAUTION: Route the HPE Smart Storage Battery cable directly from the power distribution board to the
battery on the drive bay shelf. Do not route the cable on the slot underneath the drive bay shelf.
70 Front LED/power/UID cabling
