Component identification
This chapter describes the external and internal server features and components.

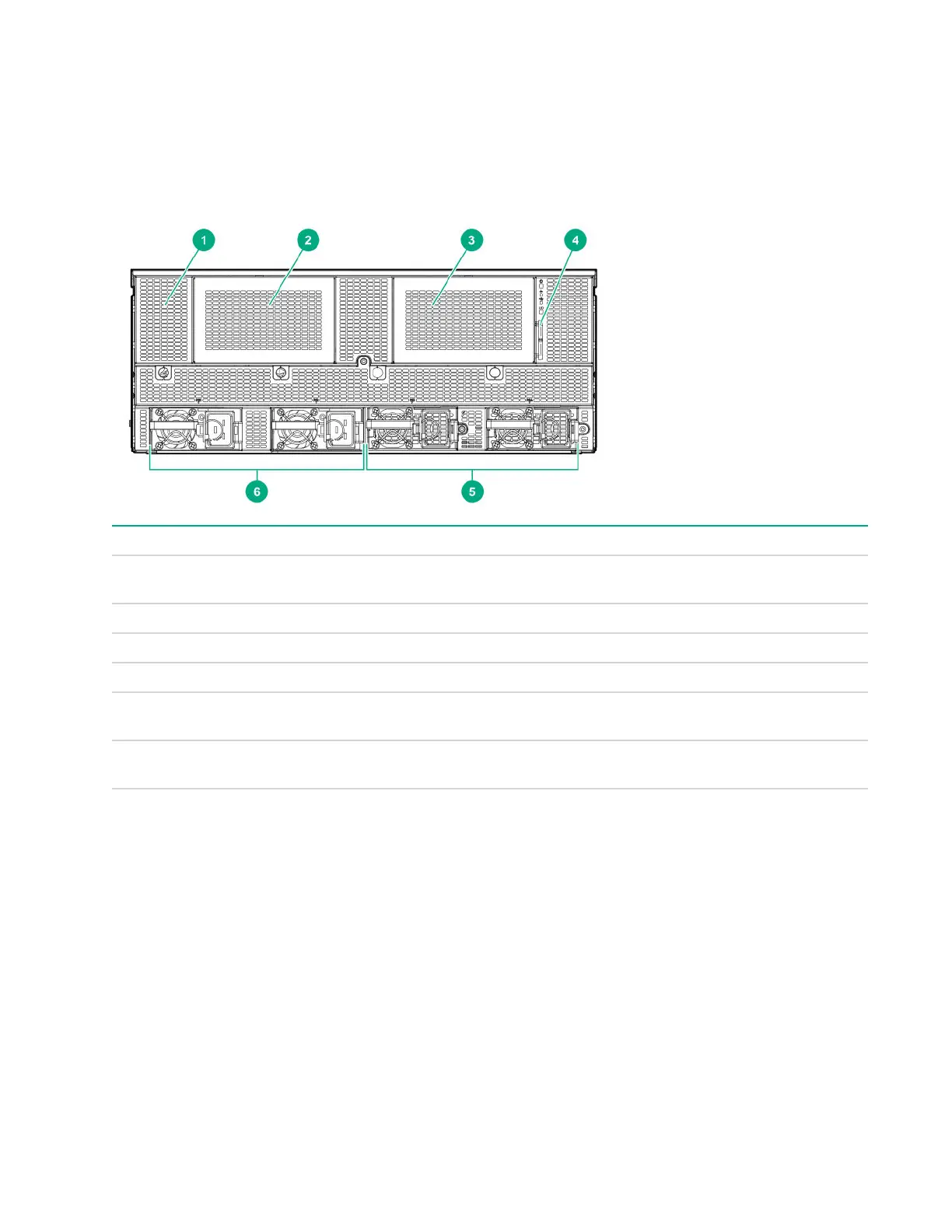

Front panel components
Item Description
1 HPE Smart Storage battery (located behind the
chassis grill)
2 Drive bay 1 (for optional 8SFF drive cage)
3 Drive bay 2 (for optional 8SFF drive cage)
4 Serial label pull tab
5 Power supply bays 3 and 4 (for optional HPE 2200 W
Platinum Hot Plug Power Supplies)
6 HPE 2200W Platinum Hot Plug Power Supplies 1
and 2 (standard)
Front panel LEDs and buttons
