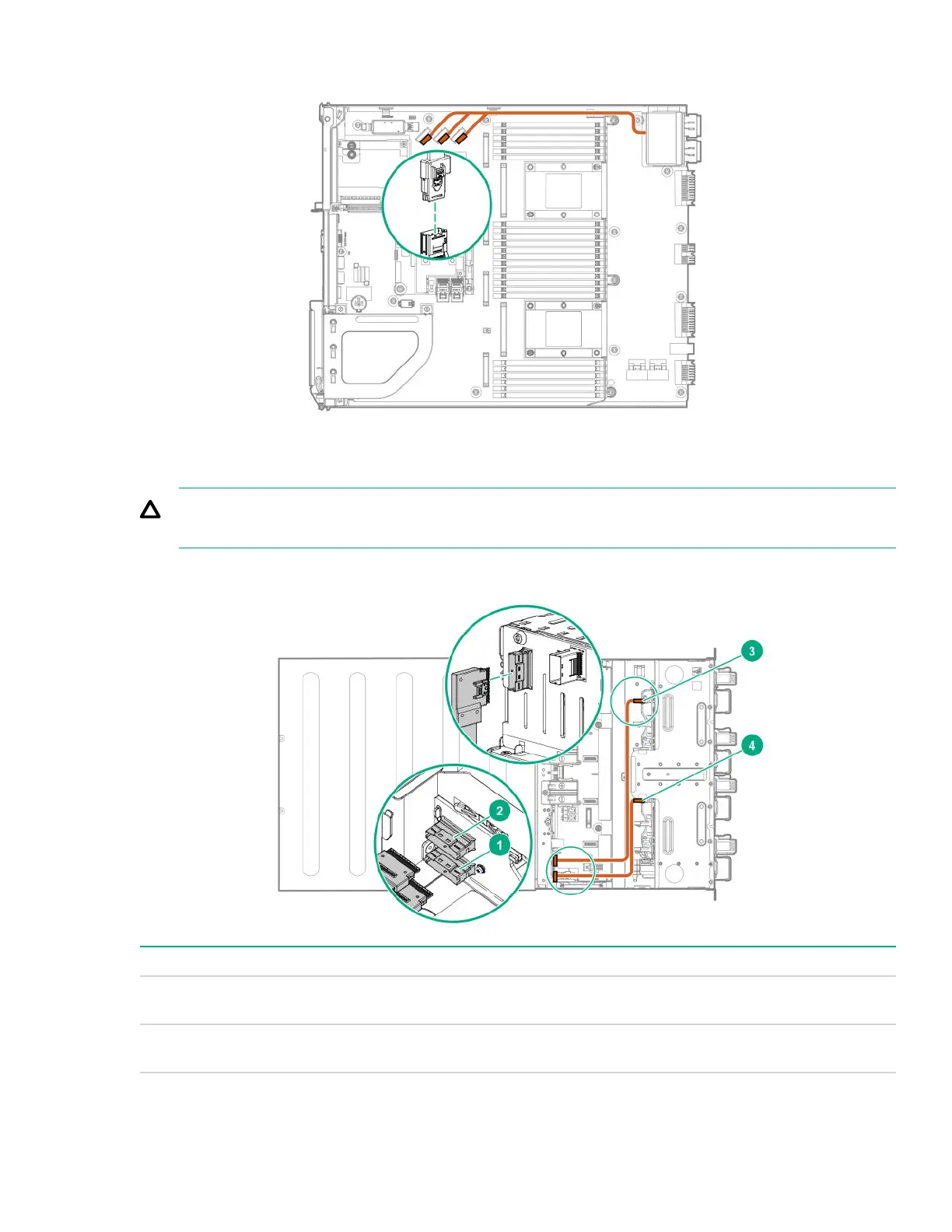

SATA cabling to the system board
NVMe cabling
CAUTION: Route the NVMe cables on the drive bay shelf. If they are routed on the slot underneath the
drive bay shelf where the AC power cables are routed, a power surge may occur.
NVMe cabling to the midplane
Item Description
1 NVMe midplane connector J3 - Connects to drive
cage 1
2 NVMe midplane connector J4 - Connects to drive
cage 2
Table Continued
NVMe cabling 67
