HPE Apollo 6500 Gen10

Item Description
3 Drive cage 1
4 Drive cage 2

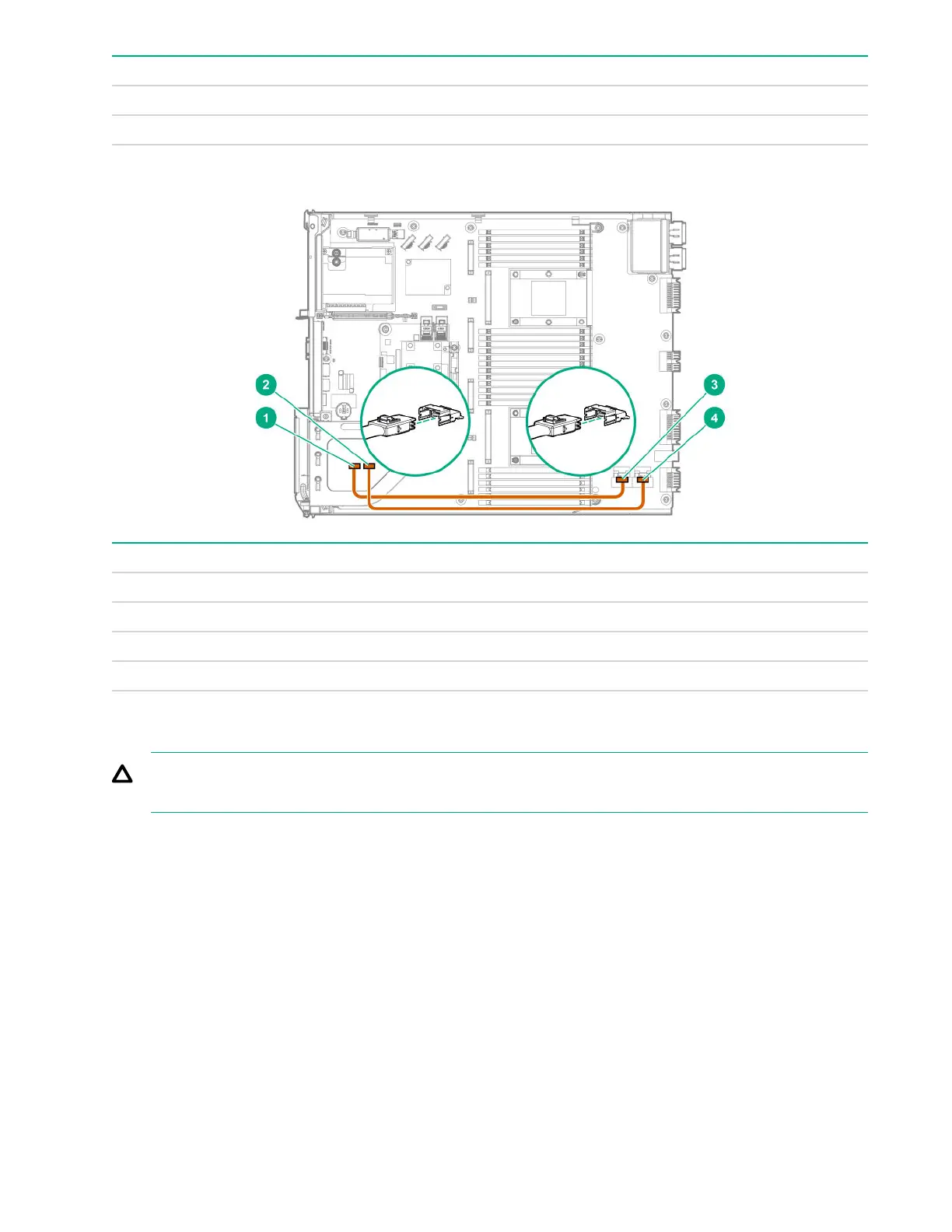

NVMe cabling to the system board
Item Description
1 NVMe enablement board port J3
2 NVMe enablement board port J4
3 NVMe drive port J19
4 NVMe drive port J13
AC power cabling
CAUTION: Route the AC power cables on the slot underneath the drive bay shelf. If they are routed on
the drive bay shelf, a power surge may occur.
68 AC power cabling
