Installing a PCIe riser board in the SXM2 GPU module
Prerequisites
Before installing this option, be sure that you have the following:
The components included with the hardware option kit
Procedure
1. Observe the following alerts:
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal
system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the server before
beginning any installation procedure. Improper grounding can cause electrostatic discharge.
2. Power down the server (Power down the server on page 20).
3. Disconnect all peripheral cables from the server.
4. Remove the GPU module from the chassis (Removing the GPU module from the chassis on page
21).
5. Place the module on a flat, level work surface.

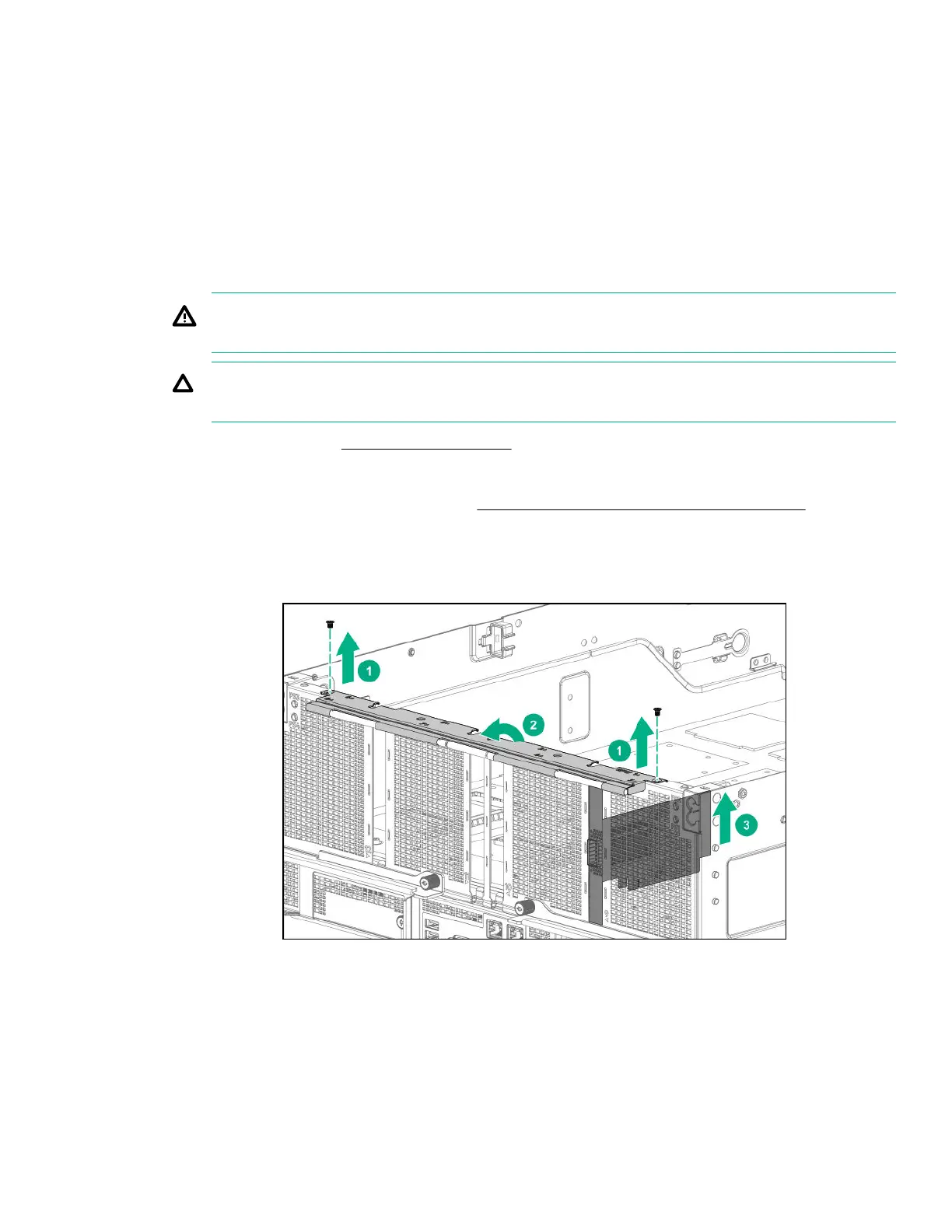

6. Open the retainer, and then remove the PCIe riser board blank.
7. Install the PCIe riser board, and then close the retainer.
Installing a PCIe riser board in the SXM2 GPU module 59
