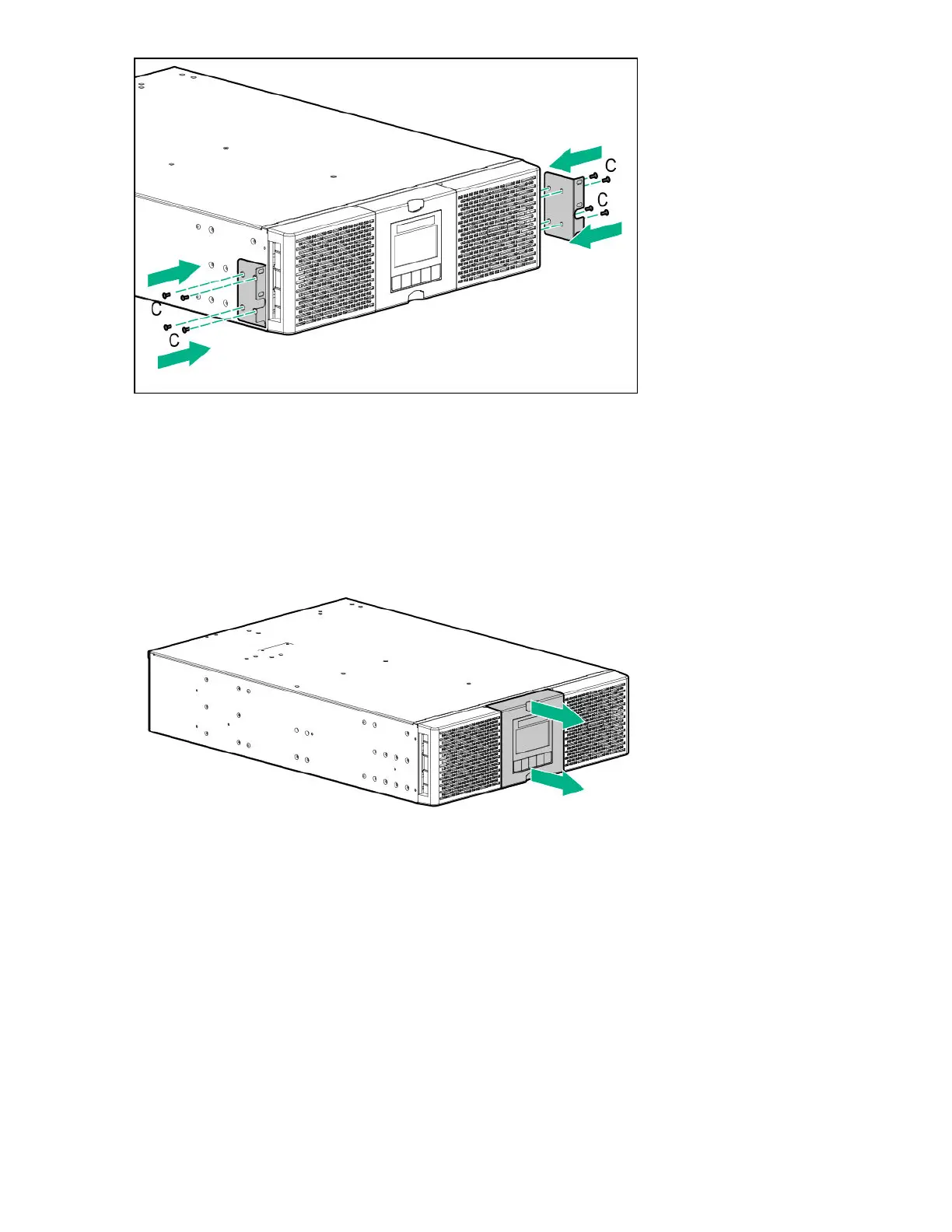

4. With one person on each side, lift the chassis to rail level and slide the chassis on the mounting rails.
5. Attach the chassis to the rack using the supplied screws.
Connecting the battery
Procedure
1. Remove the bezel from the front of the UPS.
2. Remove the two screws.
16 Installation

HPE G2 R5000 Specifications

General

Power Capacity	5000 VA / 4500 W
Input Voltage	200-240 VAC
Output Voltage	200-240 VAC
Battery Type	Sealed Lead-Acid (SLA)
Nominal Output Voltage	230 VAC
Nominal Input Voltage	230 VAC
Frequency	50/60 Hz
Form Factor	Rackmount
Interface	USB, Serial
Operating Temperature	0°C to 40°C
Operating Humidity	0 to 95% RH non-condensing
Weight	30 kg
