CAUTION: Electrostatic discharge (ESD) can damage electronic components. Be sure that you are properly
grounded (earthed) before beginning any installation procedure.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all PCIe slots have
either an expansion slot cover or an expansion board installed.
The SFP28 card must be installed in the PCIe slot closest to the ALOM slot.
Procedure
1.
Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
•
Extend the server from the rack.
• Remove the server from the rack.
4.
Remove the access panel.
5.

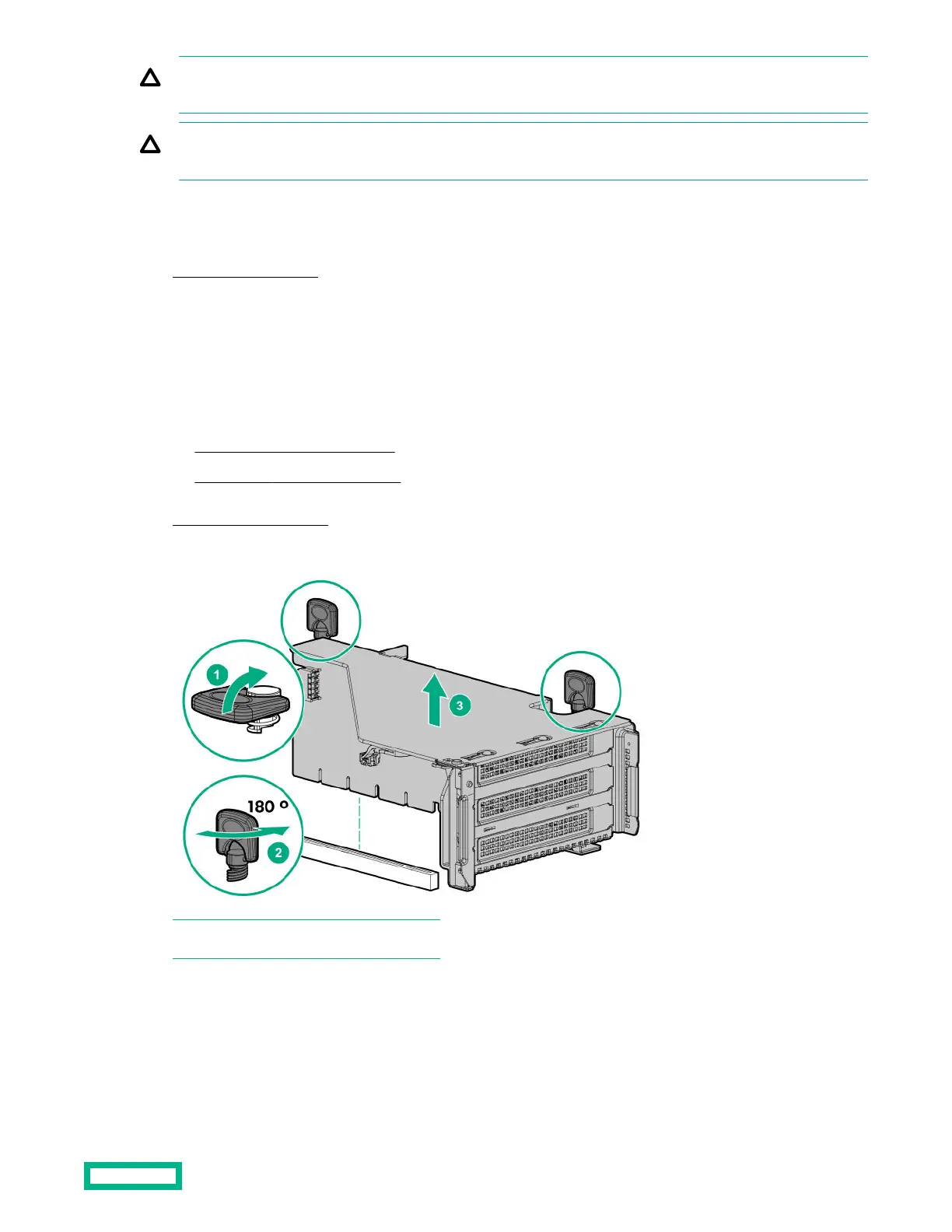

Remove the PCIe riser cage to access the slot on the system board in which to install the ALOM module.
NOTE: Image may
dier from actual product.
6. Install the Pensando DSP iLO Sideband ALOM Module into the FlexibleLOM adapter connector on the system board.
