3. Attach each rear mounting bracket to a rear rack upright column using two Phillips screws and
adapter washers. See Figure 18: Installing the rear mounting brackets on page 34.
NOTE:
For switches with Port Side Air Intake, attach the rear mounting brackets to the front rack
upright column.

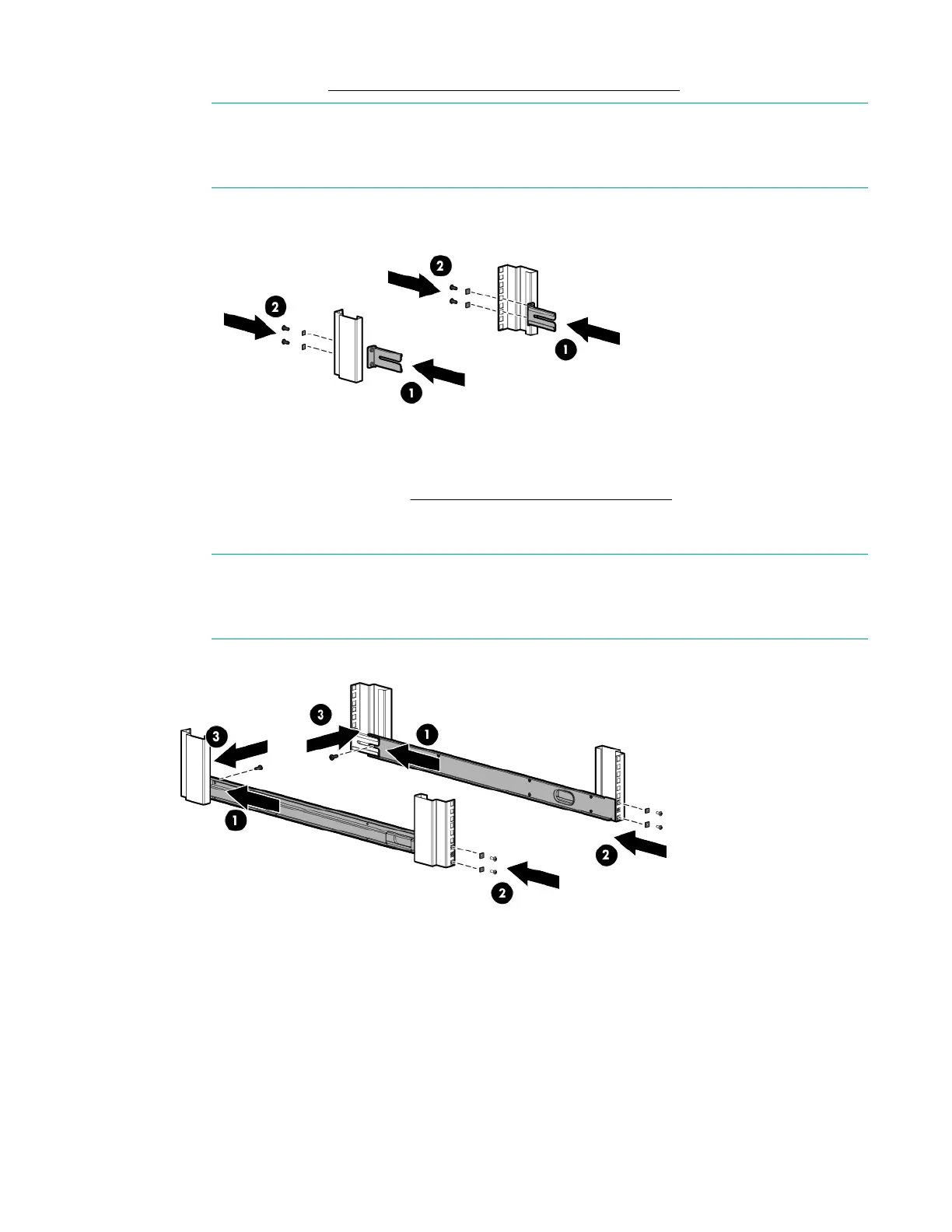

Figure 18: Installing the rear mounting brackets
4. Attach each outer rail as shown in Figure 19: Attaching the outer rails on page 34.
The rails are labeled Left and Right to designate the left side and right side of the rack as viewed
from the front of the cabinet.
NOTE:
For switches with Port Side Air Intake, attach Left outer rail to the right side of the rack and
Right outer rail to the left side of the rack.
Figure 19: Attaching the outer rails
a. Slide each rail over the rear mounting brackets.
b. Attach the front of the rail to a front rack upright column using two Phillips screws and adapter
washers.
c. Attach the outer rail to the rear mounting bracket using a Phillips screw.
34 Installing and configuring HPE 16Gb FC switches
