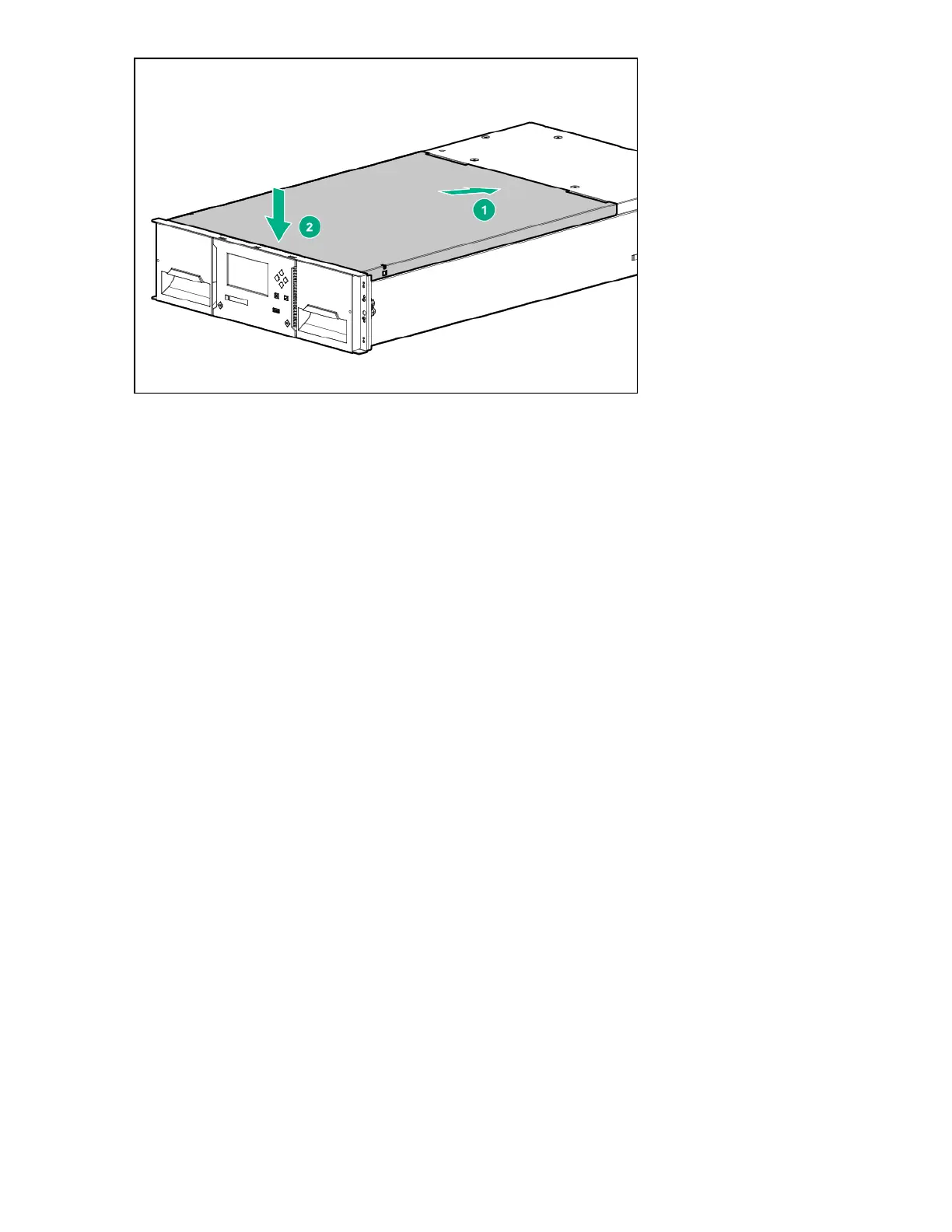

5. If you are installing a library with an expansion module above the base module, keep the top cover with the
base module until the cover is installed on the top expansion module.
6. Save the packaging materials for future use.
Installing the shelves in the rack
Each module is supported by a pair of shelves and is secured to the rack with captive fasteners.
For easier installation when installing a library with multiple modules, install all the shelves before installing
any of the modules.
Prerequisites
• Rackmount accessory kit for each module containing:
◦ Four adapter blocks
◦ Four Phillips screws
◦ Two rack shelves, one for each side of the rack, labeled LHS and RHS
• #3 Phillips screwdriver
Procedure
1. When installing multiple modules, locate the shelf locations for all modules.
a. Locate the bottom of the lowest full U where the lowest module will be installed.
b. Count up the rack 3U for each module until all the module locations are identified.
2. From the front of the rack, mount an adapter block at the appropriate height for each module on the front
rack posts.
a. Orient the adapter block for your rack.
18 Installing the library
