Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Elevator application guidance
HD3L Series Controller User Manual ―73―
7.3 Terminal Analogue Run Application
The elevator controller can calculate the motor present running direction (digital) and running speed
according (analogue) to the elevator control logic and send them to HD3L respectively in the form of
digital and analogue. HD3L control the motor to run according to the controller’s command and speed.
Example:
A certain elevator with rated speed of 1.750m/s uses a controller in Terminal analogue
control (F00.05 = 1).
The brake and the running contactor are controlled by the elevator controller. The controller sends the
direction signal to HD3L in the form of digital and output the running speed to drive in the form of
analogue.
Use analogue weighing device and AI1 as analogue speed setting and AI2 as analogue weigh.
Control Part Connection

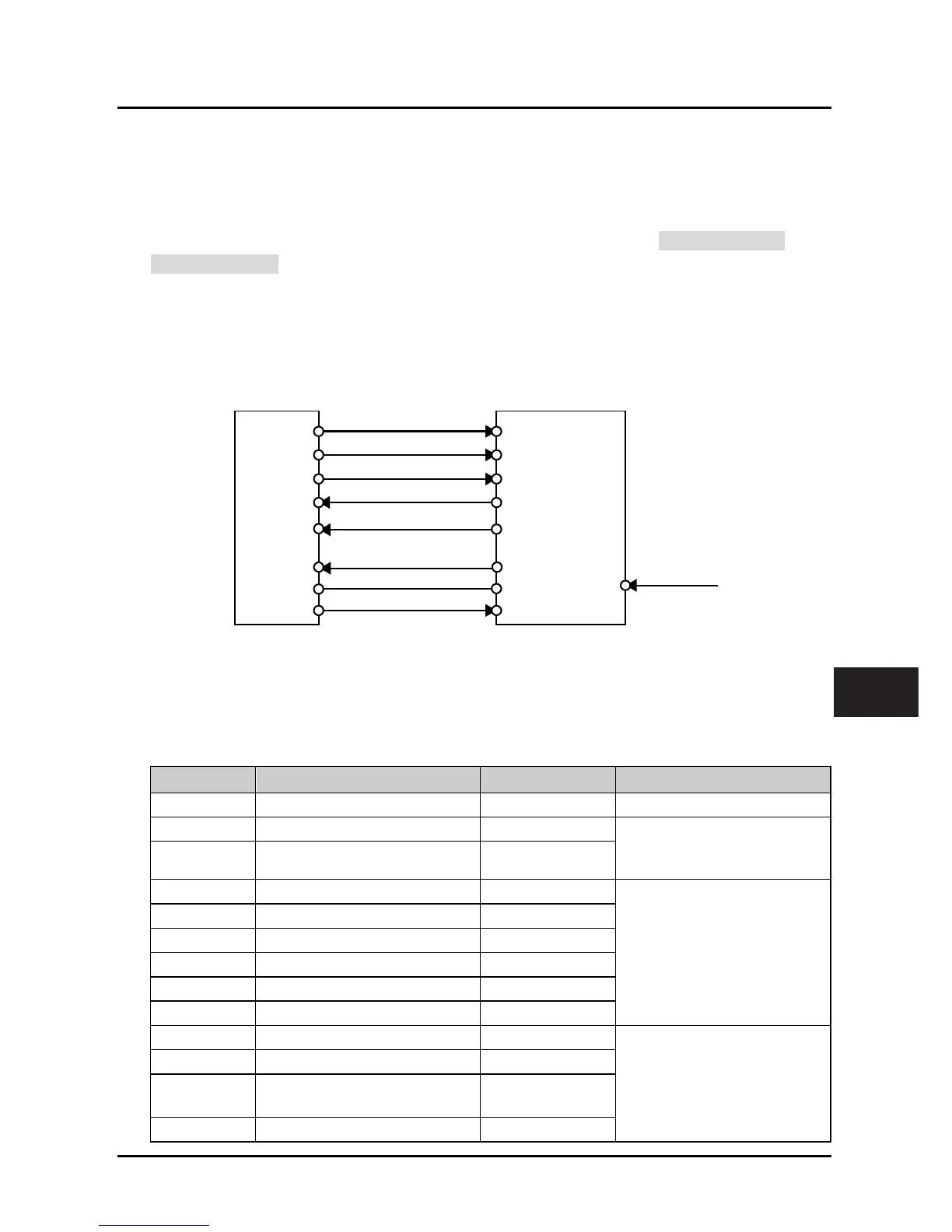

Figure 7–3 Terminal analogue running connection
Set Parameter
Refer to Table 7-1 for the general function code. The terminal analogue special function code setting
content is shown as Table 7-3.
Table 7-3 Terminal analogue run parameter
Ref. Code Function Value Remark
F00.05 Operating mode 1 Terminal analogue control
F02.02 Retention time of start zero-speed 0.5s Adjust according to the situation
of running contactor and brake at
motor start& stop.
F02.06 Retention time of stop zero-speed 0.5s
F03.00 Acc speed 0.700m/s
2
If the controller can not fast-track
speed command of the elevator
controller, increase the values of
F03.00 - F03.05.
F03.01 Start Acc jerk 0.350m/s
3
F03.02 End Acc jerk 0.600m/s
3
F03.03 Dec speed 0.700m/s
2
F03.04 Start Dec jerk 0.600m/s
3
F03.05 End Dec jerk 0.350m/s
3
F04.00 Setting curve 00000
Change according to the
characteristics of analogue curve.
F04.01 Line 1 min. setting 0.0%
F04.02
Corresponding value of line 1 min.
setting
0.0%
F04.03 Line 1 max. setting 100.0%
DI1
AI1
AI2
DI2
DI3
COM
RLY1
DO1
DO2
HD3L
Elevator
Controller
Controller enabled (EN)
UP
DN
Controller fault
Controller is running
Speed command
Weigh signa
l
Controller is at
zero-speed running
7
