Chapter 3 Mechanical Installation Shenzhen Hpmont Technology Co., Ltd.
―12― HD3L Series Controller User Manual
3.3 Installation Direction and Space Requirements
To achieve good cooling efficiency, install HD3L perpendicularly and always provide the following
space to allow normal heat dissipation.The requirements on mounting direction and space are shown
in Figure 3–1, the unit is mm.

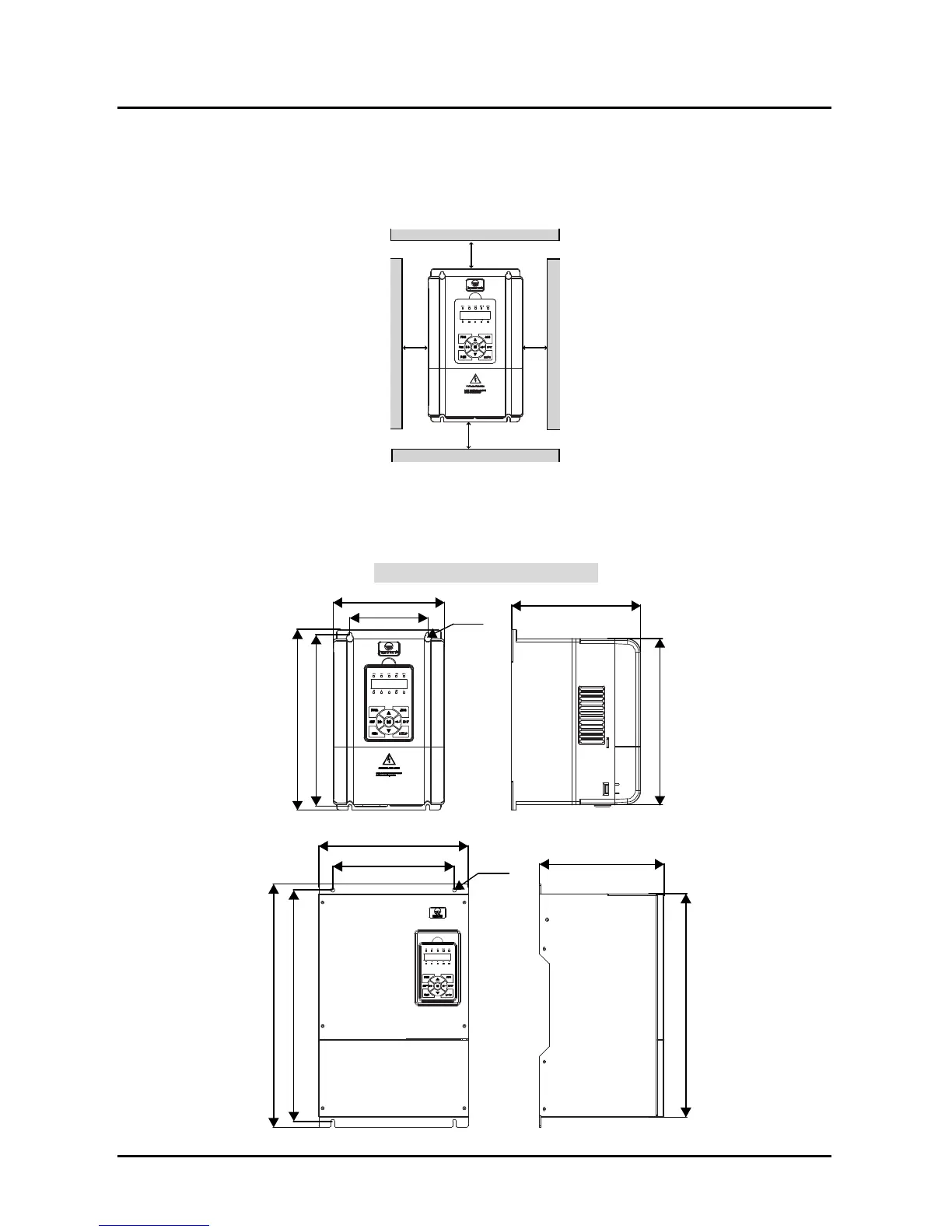

Figure 3–1 HD3L installation
3.4 Dimensions and Weight
The dimensions and weight of HD3L are as shown in figure Table 3-1. For the corresponding model of
the mounting size, please refer to section 2.3 Rated Value, on page 6.
Size F2 - F4
Size F5 - F6
≥50
≥50
≥30
≥30
W1
W
H
H1
4-Ød
D
H2
4-Ød
W
W1
H
H1
D
H2
