HT PQA400 User Manual

PQA400 - PQA823 - PQA824
EN - 92
The following keys are active on this page:
 The up (ZOOM+) or down (ZOOM-) arrow keys zoom in or out the histogram.
 The right and left arrow keys move the cursor to the right or to the left along the
harmonics.
 The F1 key (or the PAG item on the display) advances to the following page of
saved values, relative to phase 1 harmonics.
 The F2 key (or the ARM V or ARM I item on the dislay) switches between total
voltage and current harmonics.
 The F4 key (or the ARM PAG item on the display) displays the following
harmonics group. 0..9, 10..19, 20..29, 30..39, 40..49.
 The ESC key (or the smart icon
on the display) to exit the function and go back
to the “Recording analysis” page (Fig. 143).

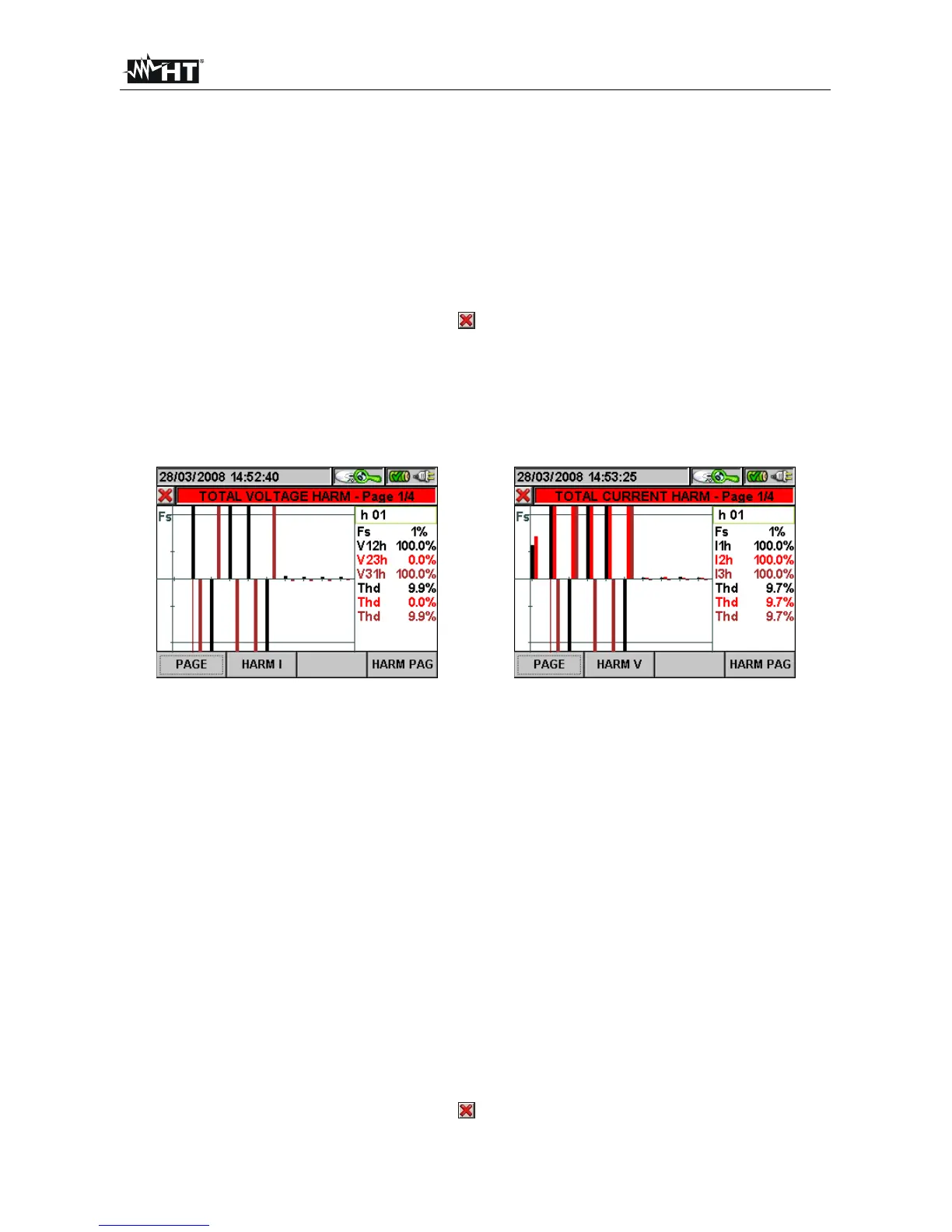

This screen (Fig. 157) displays the harmonic values and the THD% value of voltages V12,
V23, V31 and of currents I1, I2, I3 in a graph (scaled according to the Full scale Fs) or in a
table. The values displayed are percentage values of the fundamental or absolute values
according to the configuration set in the ANALYZER CONFIGURATION MENU ->
ADVANCED.
Fig. 157: Total harmonics in three-phase 3-wire system or Aron system
Should only the voltage signals or only the current signals be connected to the instrument’s
inputs, all displayed harmonics will be shown in the upper half plane of the graph.
If both voltage and current signals are connected to the instrument’s inputs, the histogram bars
representing the harmonics will be shown respectively:
 In the upper half plane of the graph if the harmonics are introduced into the relevant
electrical system from the mains.
 In the lower half plane of the graph if the harmonics are mnjected into the relevant
electrical system from the mains.
The following keys are active on this page:
 The up (ZOOM+) or down (ZOOM-) arrow keys zoom in or out the histogram.
 The right and left arrow keys move the cursor to the right or to the left along the
harmonics.
 The F1 key (or the PAG item on the display) advances to the following page of
saved values, relative to phase 1 harmonics.
 The F2 key (or the ARM V or ARM I item on the dislay) switches between total
voltage and current harmonics.
 The F4 key (or the ARM PAG item on the display) displays the following
harmonics group. 0..9, 10..19, 20..29, 30..39, 40..49.
 The ESC key (or the smart icon
on the display) to exit the function and go back
to the “Recording analysis” page (Fig. 143).
