LP-387 Rev. 011 Rel. 005 Date 1.3.19
69

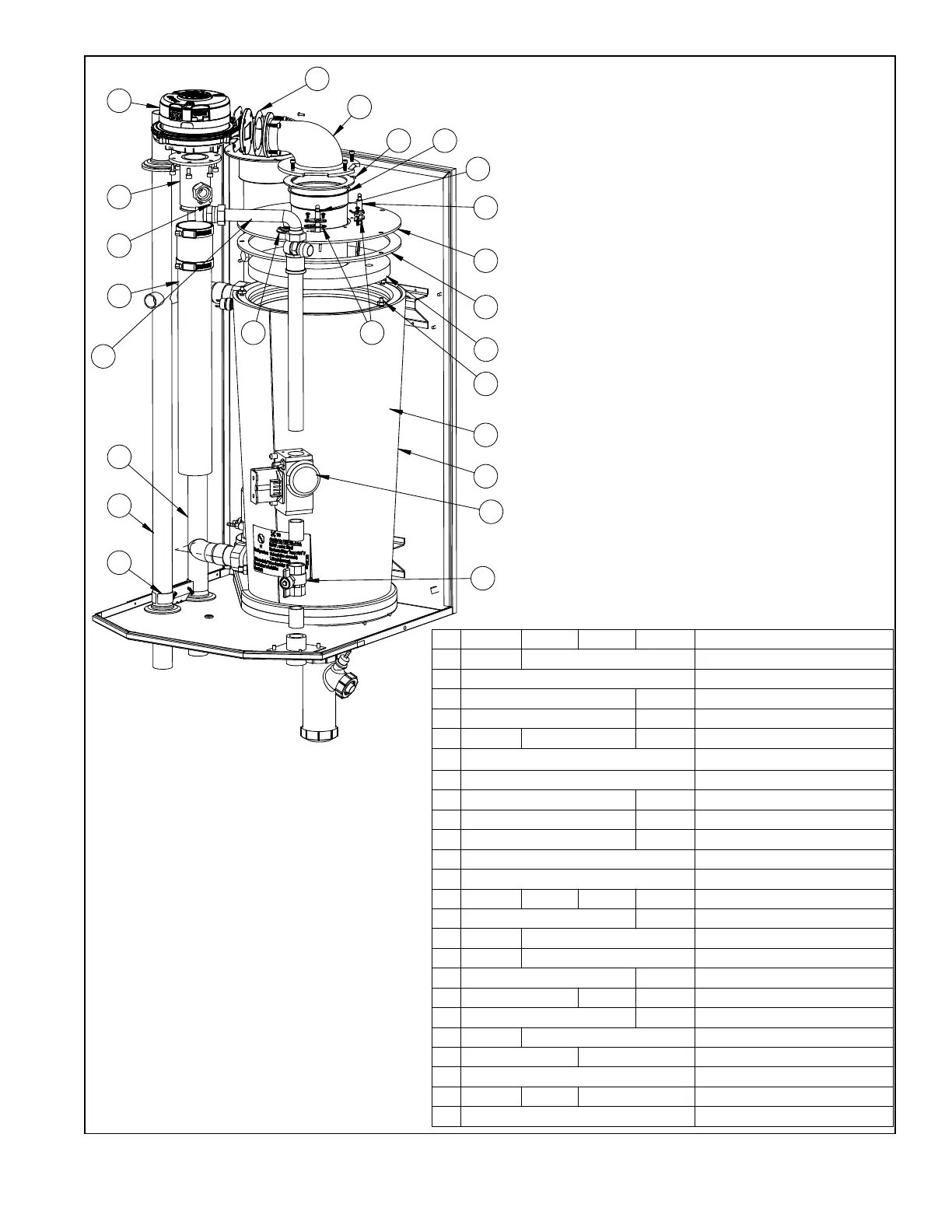

Figure 39 - Combustion System Replacement Parts - for all 155 and 199kBTU Models, and 285 - 399kBTU Models Manufactured BEFORE 10/29/17
ITEM 155 199 285 399 DESCRIPTION
1 7500P-031 7350P-159 COMBUSTION BLOWER
2 7500P-075 GASKET - COMBUSTION BLOWER
3 7600P-908 7600P-909 AIR CHANNEL (w/GASKET, SCREWS)
4 7600P-105 7600P-106 GASKET - BURNER
5 7600P-155 7600P-114 7600P-115 BURNER (w/GASKET)
6 7600P-087
FLAME RECTIFICATION PROBE
(w/GASKET, SCREWS)
7 7350P-021 IGNITOR (w/GASKET, SCREWS)
8 7600P-910 7600P-911 BURNER DOOR
9 7600P-112 7600P-113 GASKET - BURNER DOOR
10 7600P-110 7600P-111 REFRACTORY - BURNER DOOR
11 7250P-005 GASKET - PROBES
12 7500P-067 6MM NUTS - BURNER DOOR
13 7600P-090 7600P-091 7600P-092 7600P-093 HEAT EXCHANGER (w/INSULATION)
14 7600P-147 7600P-148 INSULATION - HEAT EXCHANGER
15 7450P-025 7350P-033 GAS VALVE
16 7250P-140 7350P-079 SHUT-OFF VALVE
17 7600P-136 7600P-236 PIPE CLAMP
18 7600P-900 7600P-899 7600P-901 SUPPLY PIPING ASSEMBLY
19 7600P-902 7600P-903 RETURN PIPING ASSEMBLY
20 7100P-140 7600P-152 FLEXIBLE GAS LINE (w/GASKET)
21 7600P-102 7600P-912 AIR INLET - BLOWER
22 7450P-115 GASKET - BSPP CONNECTIONS
23 7450P-024 7450P-023 7450P-029 VENTURI (w/GASKET)
24 7600P-072 SIGHT GLASS (w/GASKET, SCREWS)
LP-387-KK
02/26/18
14
13
10
9
8
7
6
54
3
2
1
23
20
21
15
16
18
19
17
22
24
11
12
To Next Page
