The standard dimensions (H x W x D) of a 25 kW smart cooling product are 2000
mm x 300 mm x 1100 mm. The depth of the cabinet can be increased to 1200
mm by adding an enclosure frame.

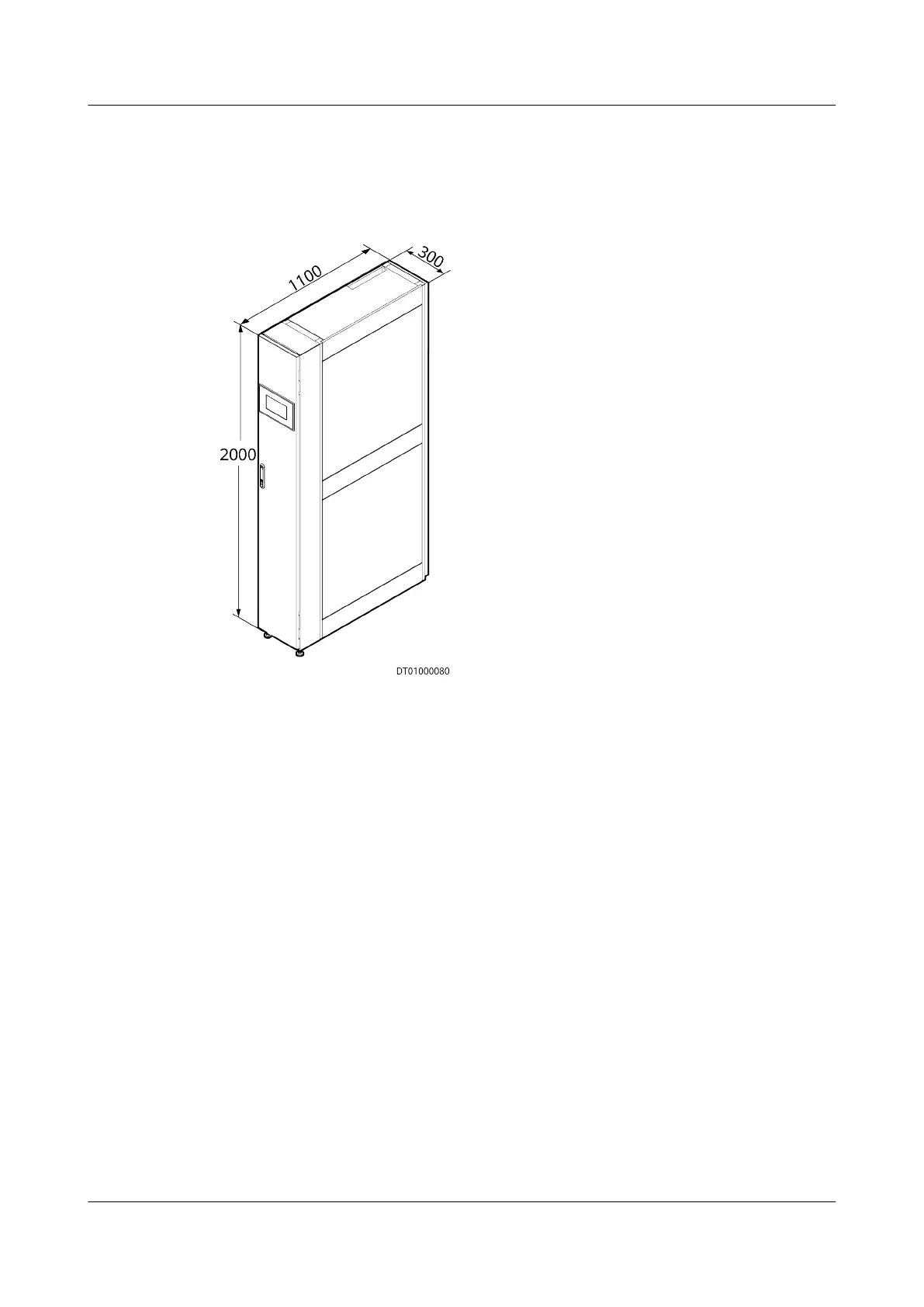

Figure 5-9 Dimensions (unit: mm)
Indoor Unit Components
The indoor unit of the 25 kW smart cooling product mainly consists of a
compressor, oil separator, fan, heat exchanger, electronic expansion valve, check
valve,
lter dryer, sight glass, electric heater (optional), wet lm humidier
(optional), and water pump (optional).
FusionDC1000A Prefabricated All-in-One Data
Center
Product Description (IT Scenario) 5 Cooling System
Issue 01 (2021-04-20) Copyright © Huawei Technologies Co., Ltd. 52
