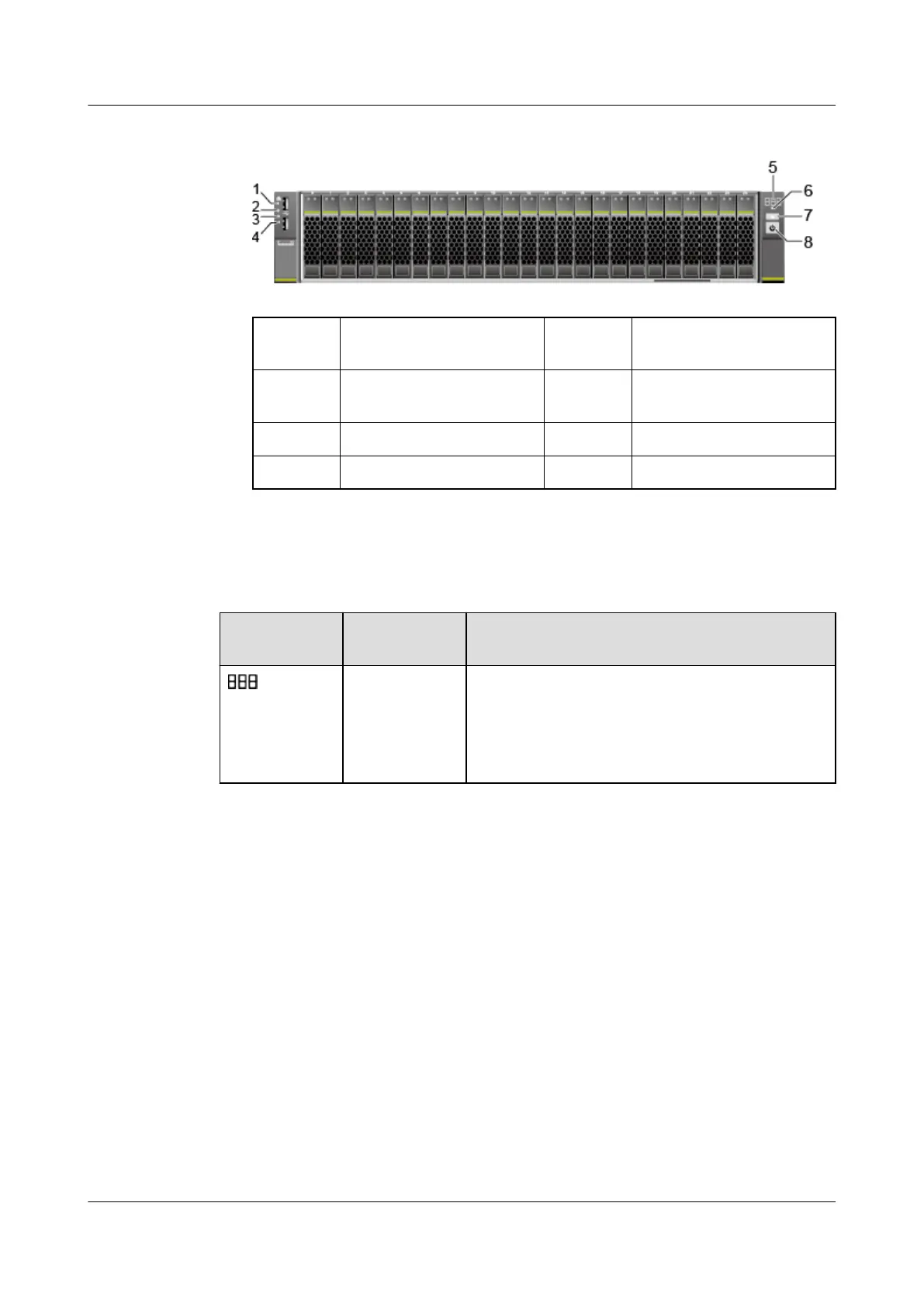

Figure 5-6 Indicators and buttons on the front panel
1 LOM port 1 connection
status indicator
2 LOM port 2 connection
status indicator
3 LOM port 3 connection
status indicator
4 LOM port 4 connection
status indicator
5 Fault diagnosis LED 6 Health status indicator
7 UID button/indicator 8 Power button/indicator
Indicator and Button Description
Table 5-1 Indicators and buttons on the front panel
Silkscreen
Indicator/
Button
Description
Fault
diagnosis LED
● ---: The device is operating normally.
● Fault code: A component is faulty.
For details about error codes, see
FusionServer Pro Rack Server iBMC Alarm
Handling.
