NO TE
Observe the following rules when conguring GPU PCIe cards:
● The 5288 V5 supports only P4 GPU x8 cards, which must be installed in the three-slot
PCIe riser module in I/O module 1 or 2.
● If four P4 GPU cards are
congured:
● The GPU cards t into slots 1, 2, 4, and 5.
● The processor power can reach 205 W.
● The GPU cards support the highest temperature of 30°C in stack installation and
35°C in non-stack installation.
● If six P4 GPU cards are
congured:
● The GPU cards t into slots 1 to 6.
● The processor power must be lower than 130 W.
● The GPU cards support the highest temperature of 30°C in stack installation and
35°C in non-stack installation.
PCIe Riser Modules
● PCIe riser module 1 (universal)
– Provides PCIe slots 1 and 3 when installed in I/O module 1.
– Provides PCIe slots 4 and 6 when installed in I/O module 2.

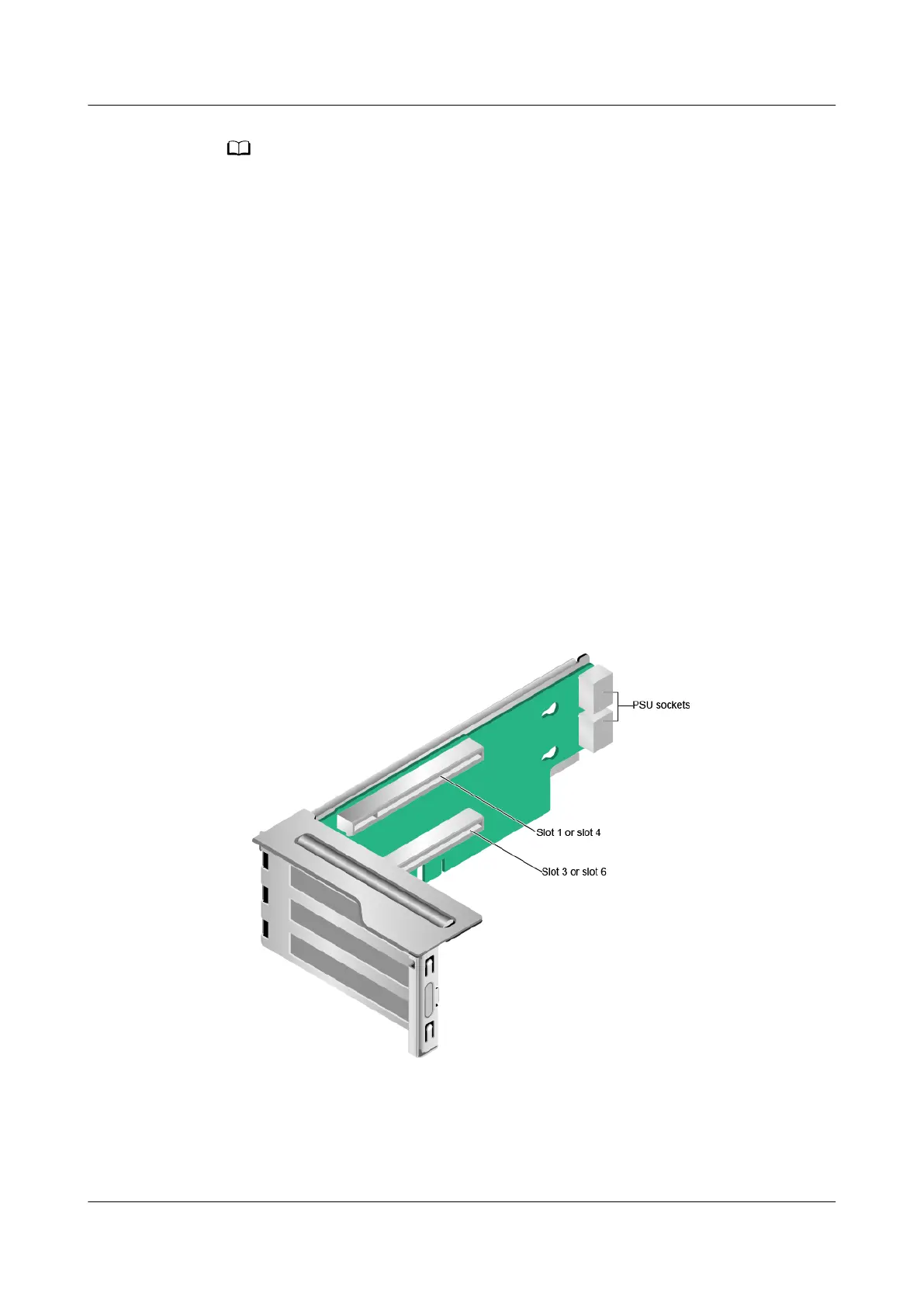

Figure 5-28 PCIe riser module 1
● PCIe riser module 2 (universal)
– Provides PCIe slots 1, 2, and 3 when installed in I/O module 1.
– Provides PCIe slots 4, 5, and 6 when installed in I/O module 2.
