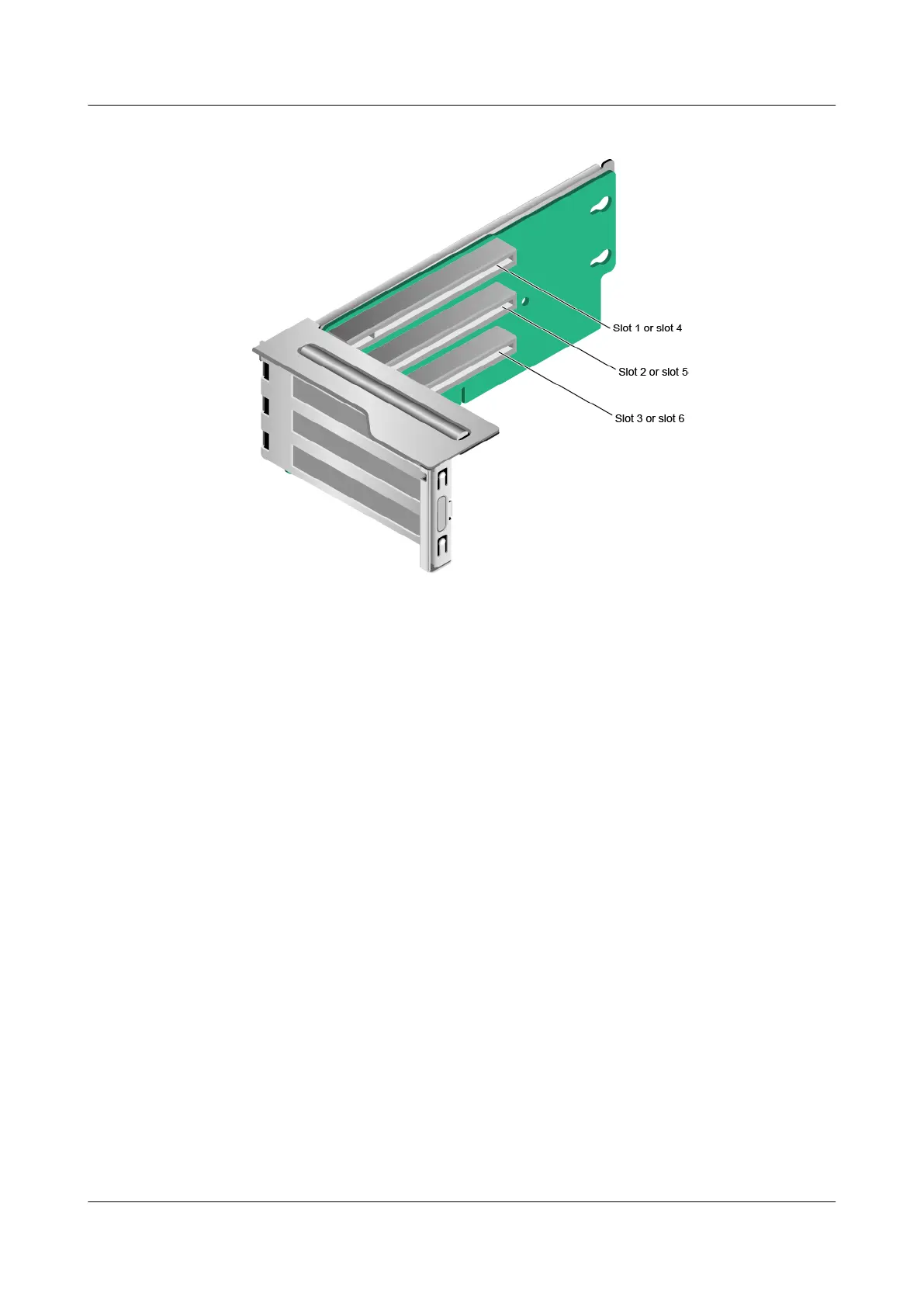

Figure 5-29 PCIe riser module 2
● PCIe riser module 3 (for PCIe SSD cards only)
– Provides PCIe slots 1, 2, and 3 when installed in I/O module 1.
– Provides PCIe slots 4, 5, and 6 when installed in I/O module 2.
