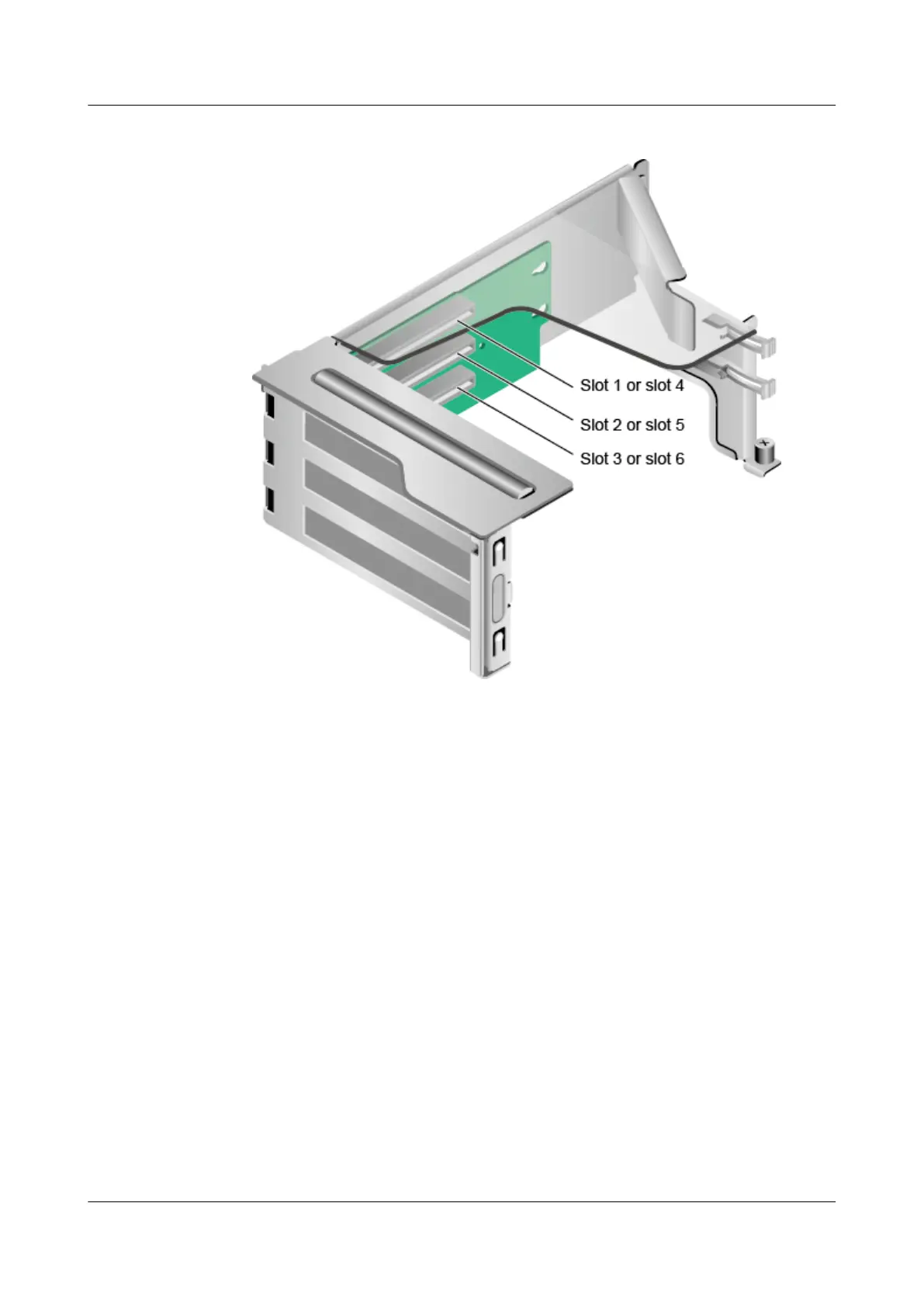

Figure 5-30 PCIe riser module 3
● PCIe riser module 4 (for P4 GPU cards only)
– Provides PCIe slots 1, 2, and 3 when installed in I/O module 1.
– Provides PCIe slots 4, 5, and 6 when installed in I/O module 2.
