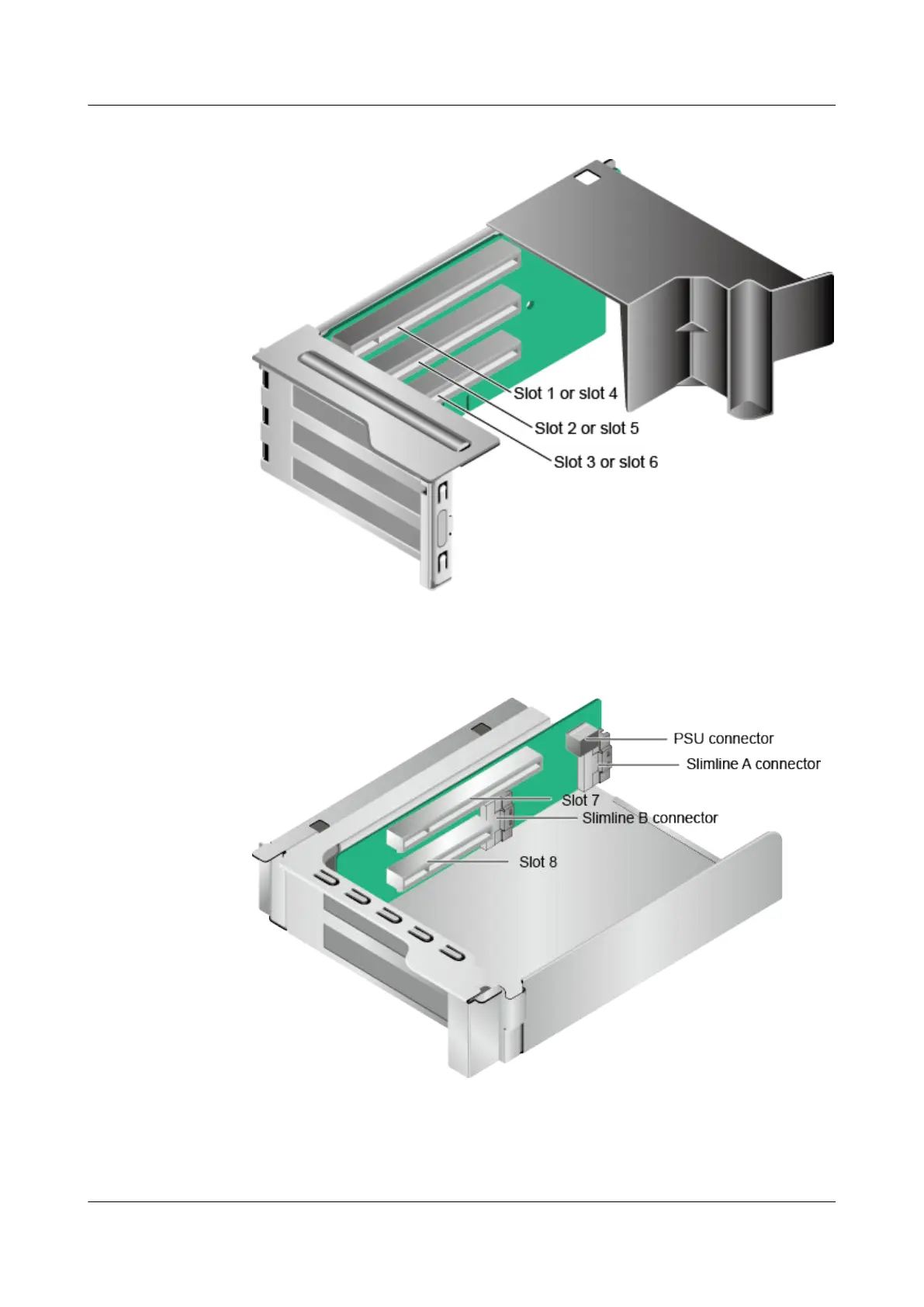

Figure 5-31 PCIe riser module 4
● PCIe riser module 5
Provides PCIe slots 7 and 8 when installed in I/O module 3.
Figure 5-32 PCIe riser module 5
● PCIe riser module 6
Provides PCIe slot 7 when installed in I/O module 3.
