1 Signal connector (REAR
BP0/J32)
2 mini-SAS HD connector
(PORT B/J29)
3 mini-SAS HD connector
(PORT A/J28)
4 mini-SAS HD connector
(REAR PORT/J31)
5 Signal connector (MAIN
BOARD/J1)
6 Signal connector (REAR
BP1/J35)
7 Power connector
(POWER/J61)
8 Power connector 3
(POWER3/J68)
9 mini-SAS connector
(PORT C/J65)
10 mini-SAS connector
(PORT B/J64)
11 mini-SAS connector
(PORT A/J63)
12 Signal connector
(HDDBP/J36)
13 Power connector 2
(POWER2/J69)
- -
● Single-RAID conguration: 12 x 3.5" drive backplane

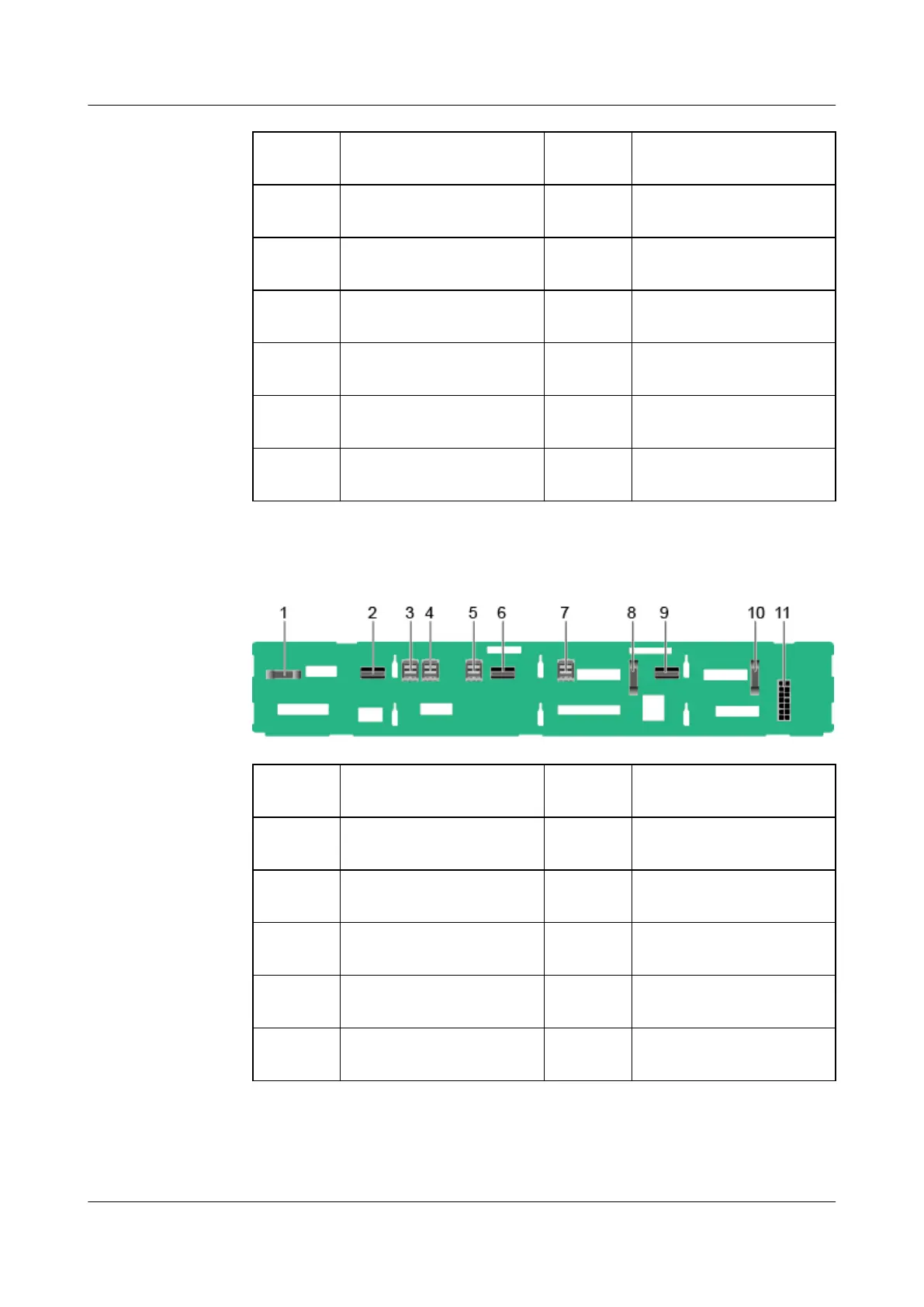

Figure 5-38 12 x 3.5" drive backplane (BOM 03023TYQ)
1
Signal connector (J30) 2 mini-SAS connector
(PORT C/J36)
3 mini-SAS HD connector
(PORT 1/J15)
4 mini-SAS HD connector
(PORT 2/J14)
5 mini-SAS HD connector
(PORT 3/J13)
6 mini-SAS connector
(PORT B/J29)
7 mini-SAS HD connector
(PORT 0/J3)
8 Signal connector
(HDDBP/J1)
9 mini-SAS connector
(PORT A/J28)
10 Signal connector (REAR
BP1/J31)
11 Power connector
(HDDBP/J24)
- -
