NO TE
● PCIe signal cables are connected to mini-SAS HD connectors 3, 4, 5, and 7.
● Dual-RAID conguration: 12 x 3.5" drive backplane

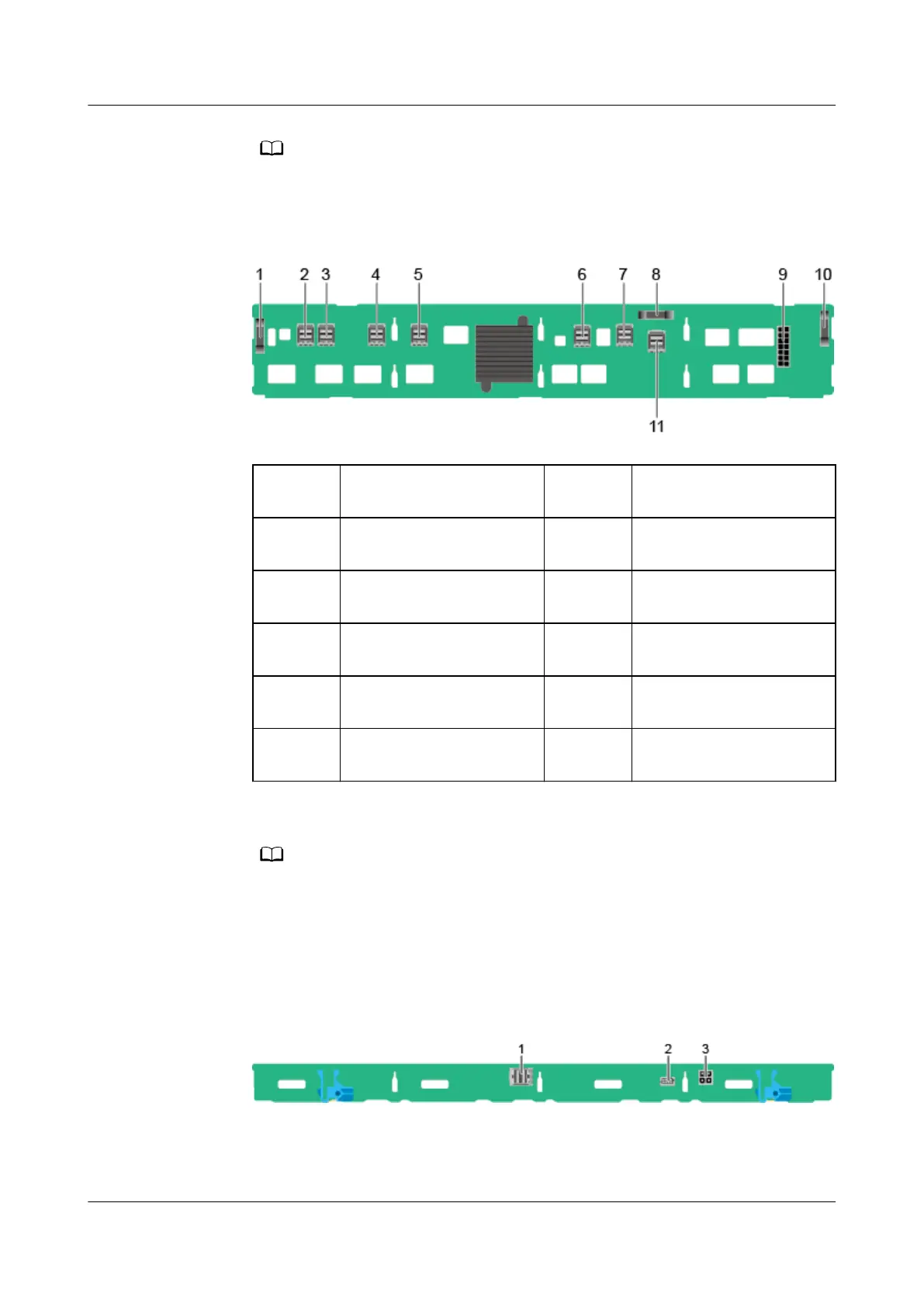

Figure 5-39 12 x 3.5" drive backplane (BOM 03024SBX)
1 Signal connector (REAR
BP0/J32)
2 mini-SAS HD connector
(PORT 3/J37)
3 mini-SAS HD connector
(PORT 2/J39)
4 mini-SAS HD connector
(PORT 1/J36)
5 mini-SAS HD connector
(PORT 0/J38)
6 mini-SAS HD connector
(REAR PORT/J31)
7 mini-SAS HD connector
(PORT A/J28)
8 Signal connector (HDD
BP/J1)
9 Power connector
(POWER/J24)
10 Signal connector (REAR
BP1/J35)
11 mini-SAS HD connector
(PORT B/J29)
- -
NO TE
● PCIe signal cables are connected to mini-SAS HD connectors 2, 3, 4, and 5.
● SAS signal cables are connected to mini-SAS HD connectors 6, 7, and 11.
Built-in-Drive Backplane
● Built-in-Drive Backplane
Figure 5-40 Built-in-drive backplane (BOM 03024MBJ)
