1 mini-SAS HD connector
(PORT A/J3)
2 Backplane signal cable
connector (INNER HDD
BP/J1)
3 Power connector (INNER
HDD PWR/J2)
- -

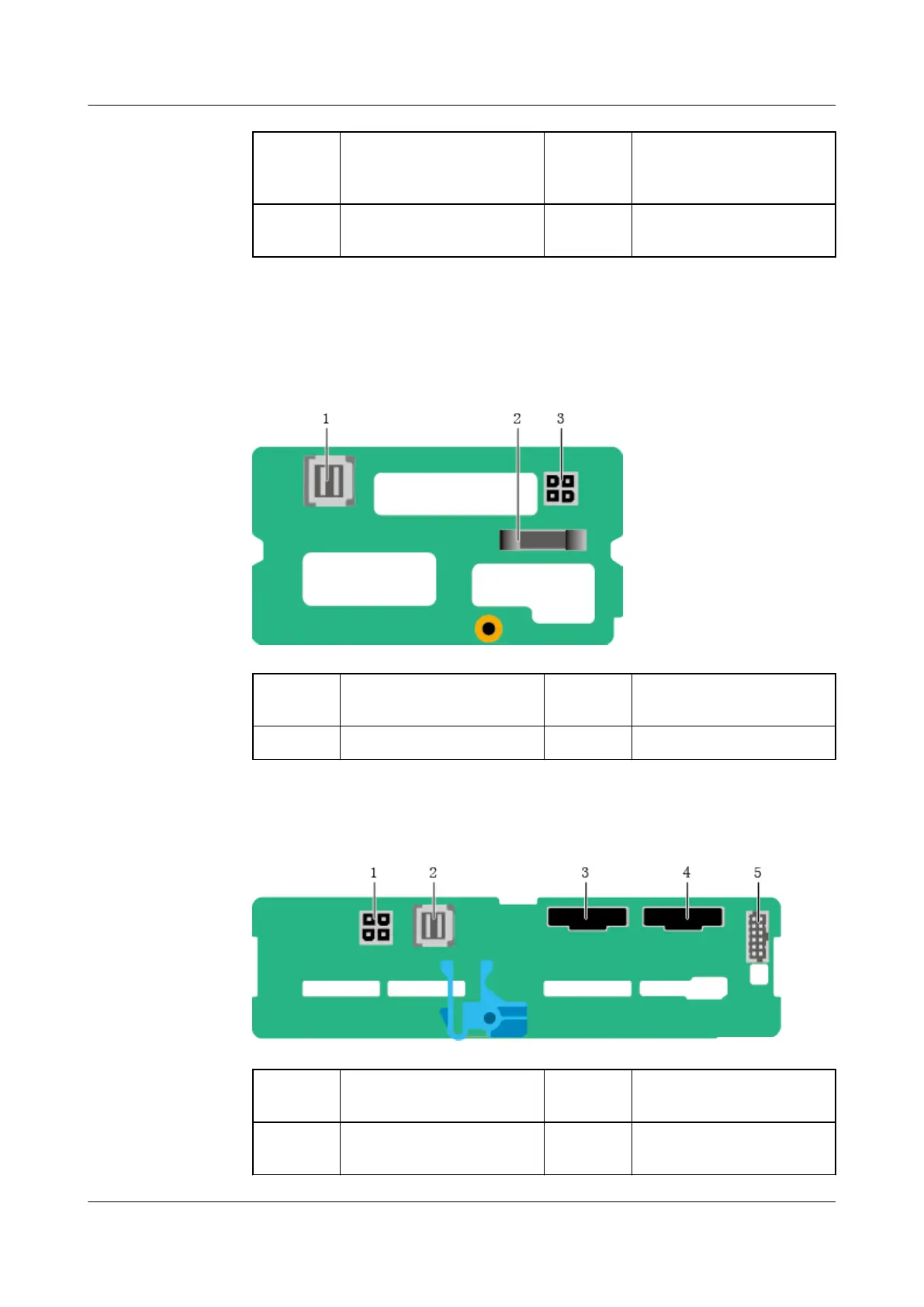

Rear-Drive Backplanes
● 2 x 3.5" drive backplane
Figure 5-41 2 x 3.5" drive backplane (BOM 03022HYE)
1 mini-SAS HD connector
(J3)
2 Indicator signal cable
connector (J24)
3 Power connector (J1) - -
● 4 x 2.5" drive backplane
Figure 5-42 4 x 2.5" drive backplane (BOM 03024BPV)
1
Power connector (REAR
BP POWR3/J22)
2 mini-SAS HD connector
(Port A/J2)
3 Slimline A connector
(SLIMLINE A/J8)
4 Slimline B connector
(SLIMLINE B/J9)
Huawei FusionServer Pro 5288 V5 Server
Technical White Paper 5 Hardware Description
Issue 10 (2020-12-15) Copyright © Huawei Technologies Co., Ltd. 61
