2.2. Installing the HA35 on a Hybrid Broadband
Network
2.2.1. PSTN or Broadband Telephone Line with one voice
channel and a 3G/4G connection
Connect your devices in the sequence indicated in the following figure.

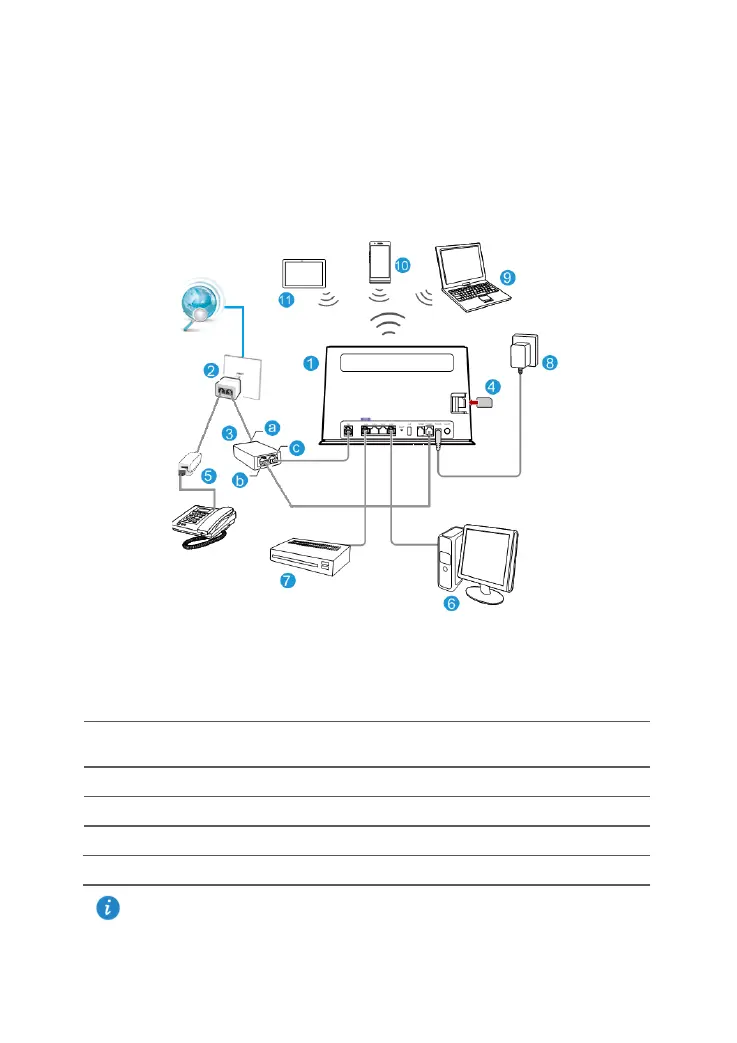

Picture 2-1 connect devices in hybrid broadband network
(PSTN Line)
1 HA35 2 Telephone wall jack &
1 to 2 RJ-11 Y adapter
3 Splitter
4 SIM card 5 Telephone & Filter 6 Desktop computer
7 Set-top Box 8 Power adapter 9 Laptop computer
10
Smart Phone 11
Pad
a LINE port b PHONE port c MODEM port
When configuring the HA35 for the first time, use an Ethernet cable to connect the
HA35 to a computer.
