Installation Manual
Quidway Eudemon 200 Firewall Appendix A Specifications of Interface Cables
A-2
RJ45
Signal
Direction
DB25 DB9 Signal
6
3 2 RXD
7
6 6 DSR
8
5 8 CTS
A.3 Ethernet Cable Pinouts
A.3.1 RJ45 Connector

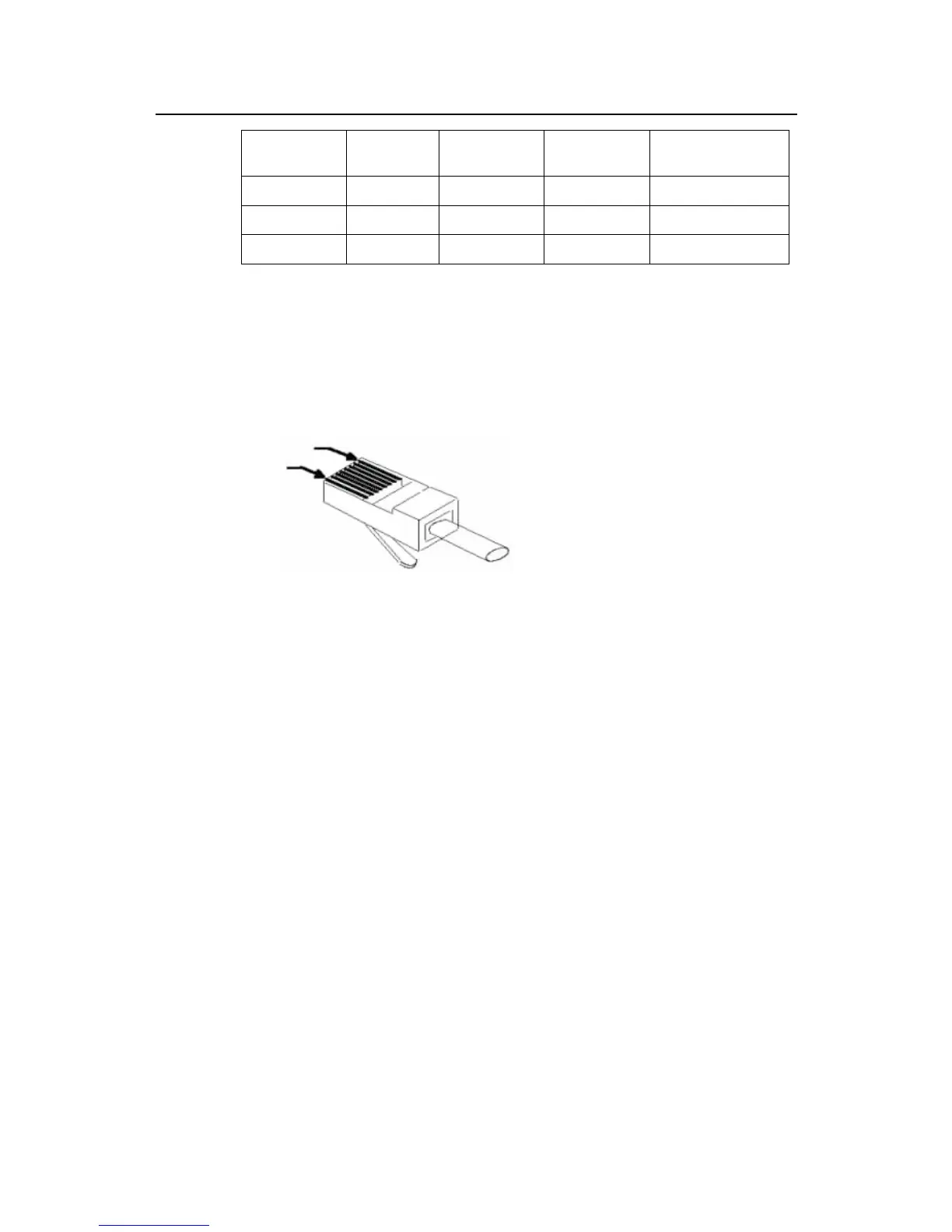

Figure A-1 RJ45 connector
A.3.2 Category 5 Twisted Pair
Category 5 twisted pair comprises 8-core copper wires. The copper wires can be
identified and grouped according to the colors of their outer insulation layers. Usually,
one pair consists of one wire in color A (referring to a pure color) and the other one in a
mixed color of A and white. Sometimes paired color points are also used as
identification colors. The Category 5 twisted pairs mentioned in this manual use the
former identification method.
PIN #8
PIN #1
