1.8.2 Rear Panel
The S3928P-PWR-EI has an AC-input power socket, a DC power socket and a

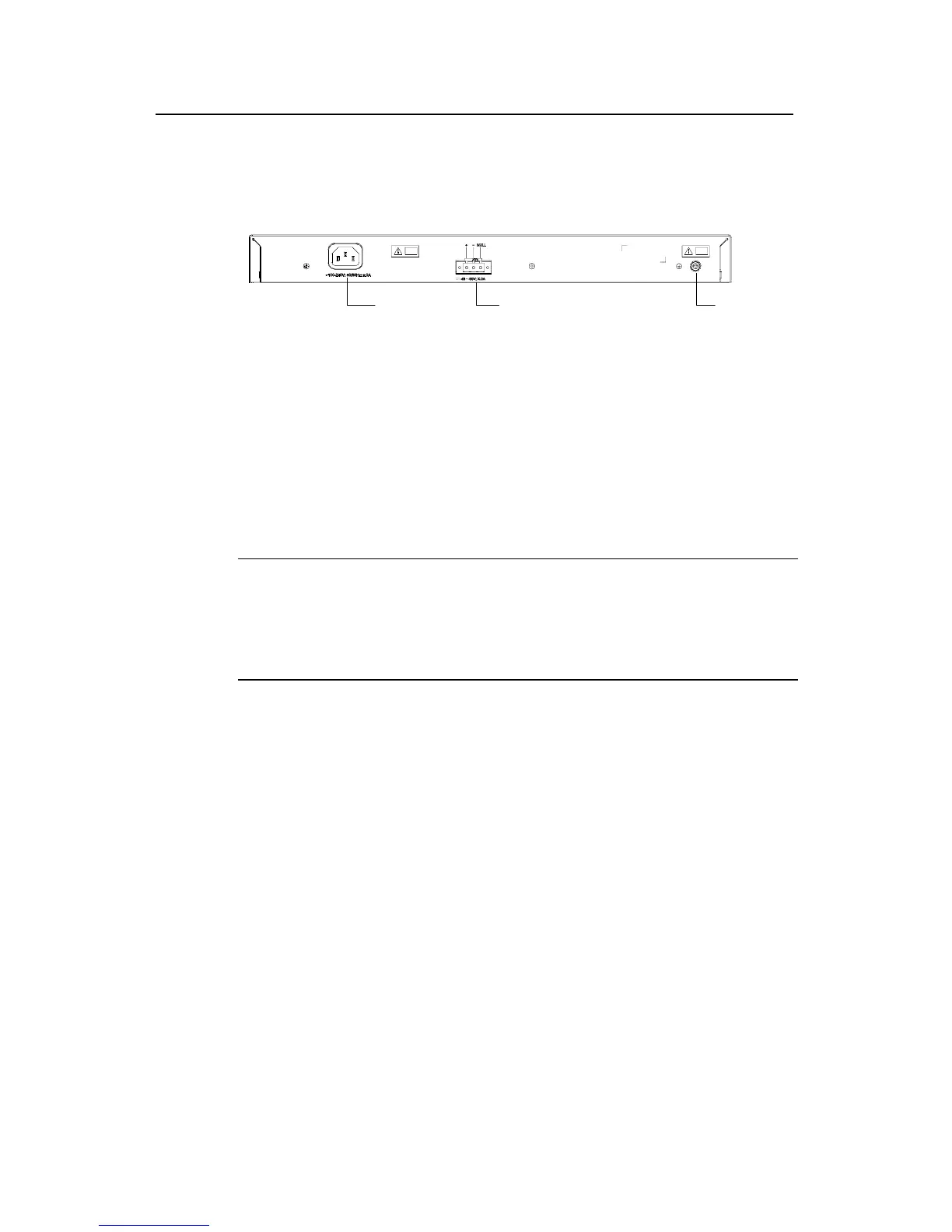

grounding screw on its rear panel, as shown in Figure 1-14:
（1）
（2）
（3）
（1）
（2）
（3）
(1) AC power socket (2) DC power socket (3) Grounding screw
Figure 1-14 Rear panel of the S3928P-PWR-EI
z AC-input ranges:
Rated voltage: 100 to 240 VAC; 50 to 60 Hz
Max. tolerance: 90 to 264 VAC; 50 to 60 Hz
z DC-input ranges:
Voltage: -53 to -55 VDC
 Note:
The S3928P-PWR-EI/S3952P-PWR-EI can only use PoE external power supply
recommended by Huawei-3Com as the DC-input, otherwise, the device can be
damaged.
1.9 S3952P-EI Ethernet Switch
1.9.1 Front Panel
I. Schematic diagram
On its front panel the S3952P-EI provides 48 fixed auto-negotiation
10Base-T/100Base-TX Ethernet ports, four 1000 Mbps SFP ports and one Console
port, as shown in Figure 1-15.
