Step 5: Click <Disconnect> to disconnect the HyperTerminal from the switch and then
click <Connect> to re-establish the connection, thus validating the baud rate setting.

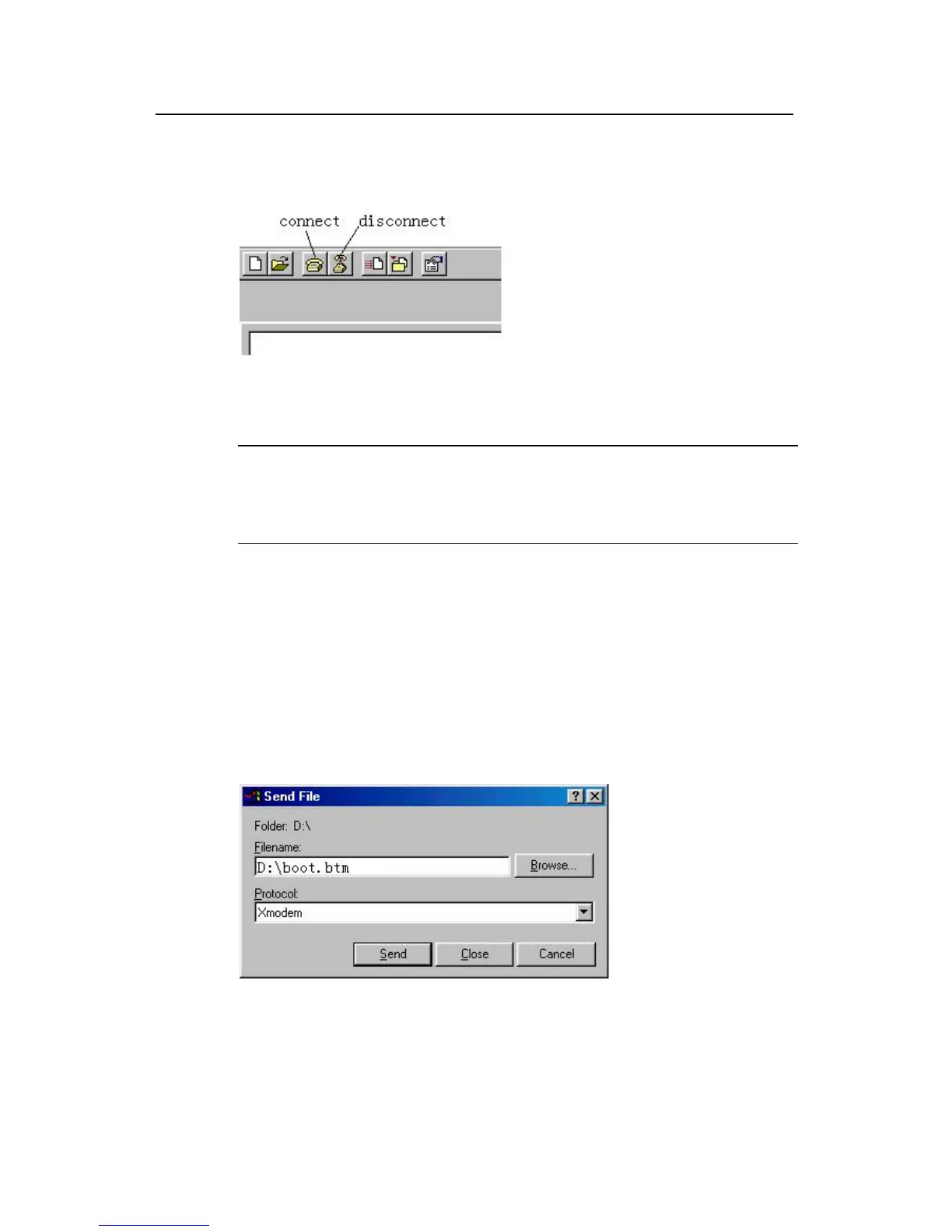

Figure 5-3 <Disconnect> and <Connect> buttons
 Note:
After changing terminal’s baud rate, you must disconnect and connect the terminal
emulation program to validate the new configuration.
Step 6: Press <Enter> to start program loading. The system displays the following
information:
Now please start transfer file with XMODEM protocol.
If you want to exit, Press <Ctrl+X>.
Loading ...CCCCCCCCCC
Step 7: Select [Transfer/Send File] in the HyperTerminal’s window, and in the popup
dialog box similar to Figure 5-4 click <Browse>, select the software you need to
download, and set the protocol to XModem.
Figure 5-4 Send File dialog box
Step 8: Click <Send>. The system displays Figure 5-5.
