Quidway S3900 Series Ethernet Switches Chapter 4 Starting up the Switch at the Initial Boot
Huawei Technologies Proprietary
4-3
z Databit = 8
z Parity check = none
z Stopbit = 1
z Flow control = none

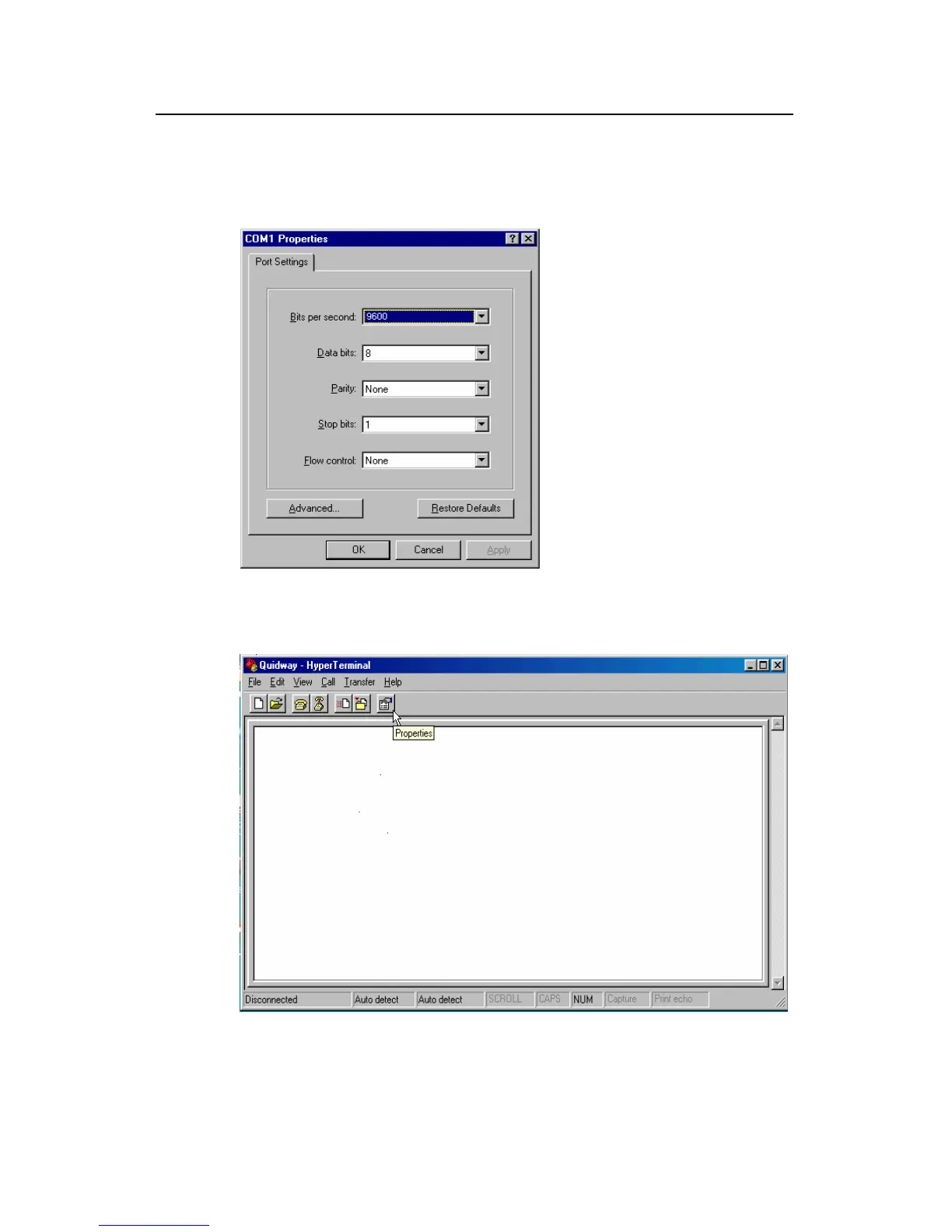

Figure 4-4 Setting communications parameters
Step 4: Click <OK>. The HyperTerminal dialogue box appears, as shown in Figure 4-5.
Figure 4-5 HyperTerminal window
