Quidway S3900 Series Ethernet Switches Chapter 4 Starting up the Switch at the Initial Boot
Huawei Technologies Proprietary
4-4
In the HyperTerminal dialogue box, select [File/Properties]. The Properties dialog box
appears. In the Properties dialog box, select the Settings tab, as shown in Figure 4-6.
Select VT100 or Auto detect in the Emulation dropdown menu. Click <OK>.

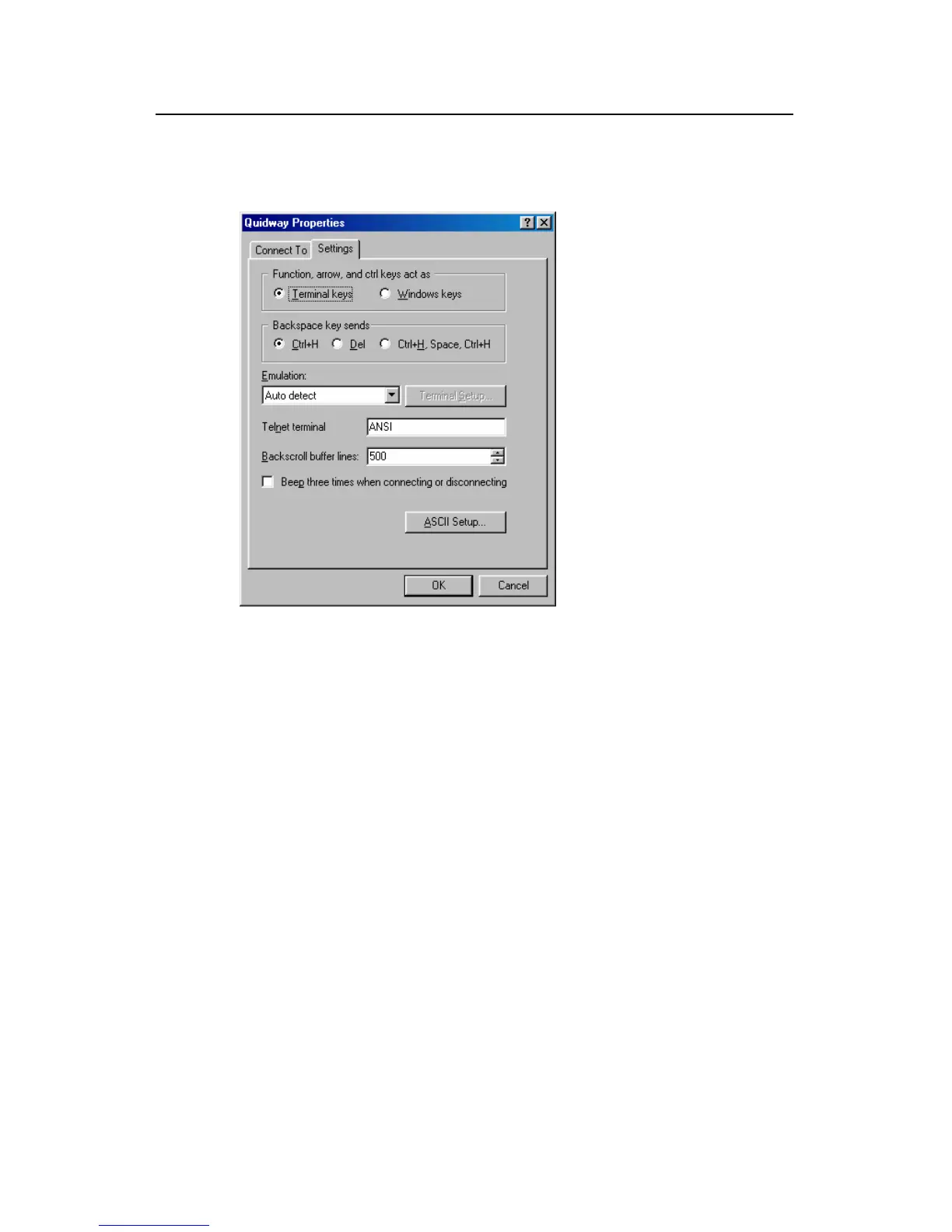

Figure 4-6 Settings tab
4.4 Booting the Switch
4.4.1 Verifying Installation before Power-up
Before powering up the switch, check that:
z Both the power cord and the grounding wire are correctly connected.
z Proper power supply is used.
z The console cable is correctly connected.
z The console terminal (or PC) has been started and the related parameters have
been set on it.
4.4.2 Powering up the Switch
For the models in the S3900 series, the displayed Boot ROM information is similar.
Following is the Boot ROM information displayed on the S3924-SI:
Starting......
******************************************************************
* *
